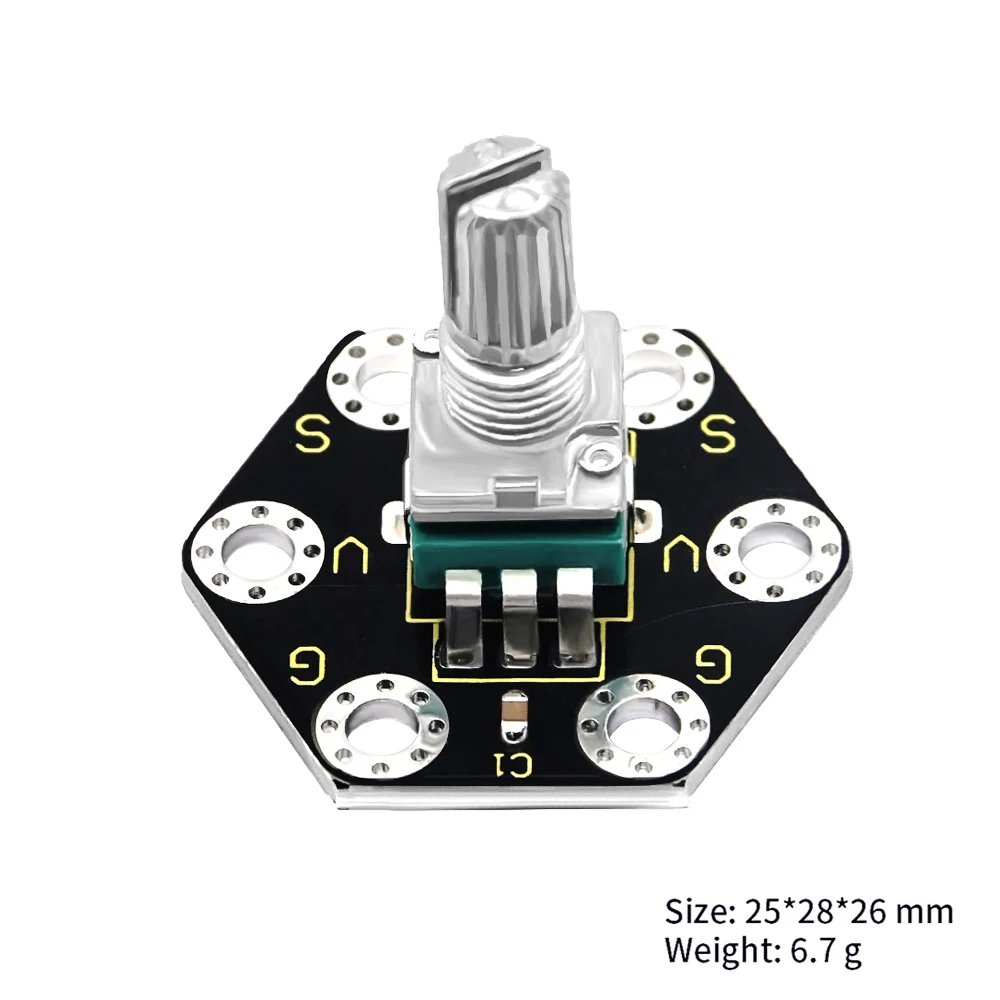

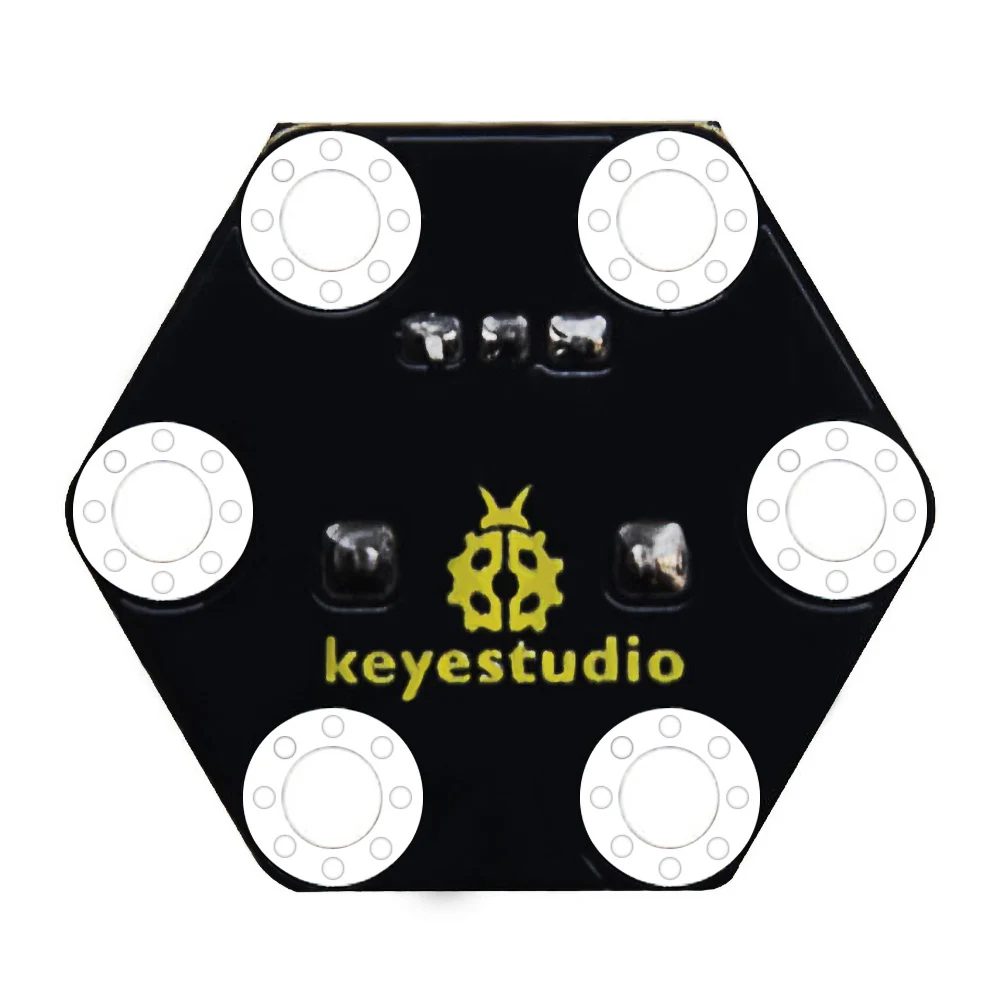

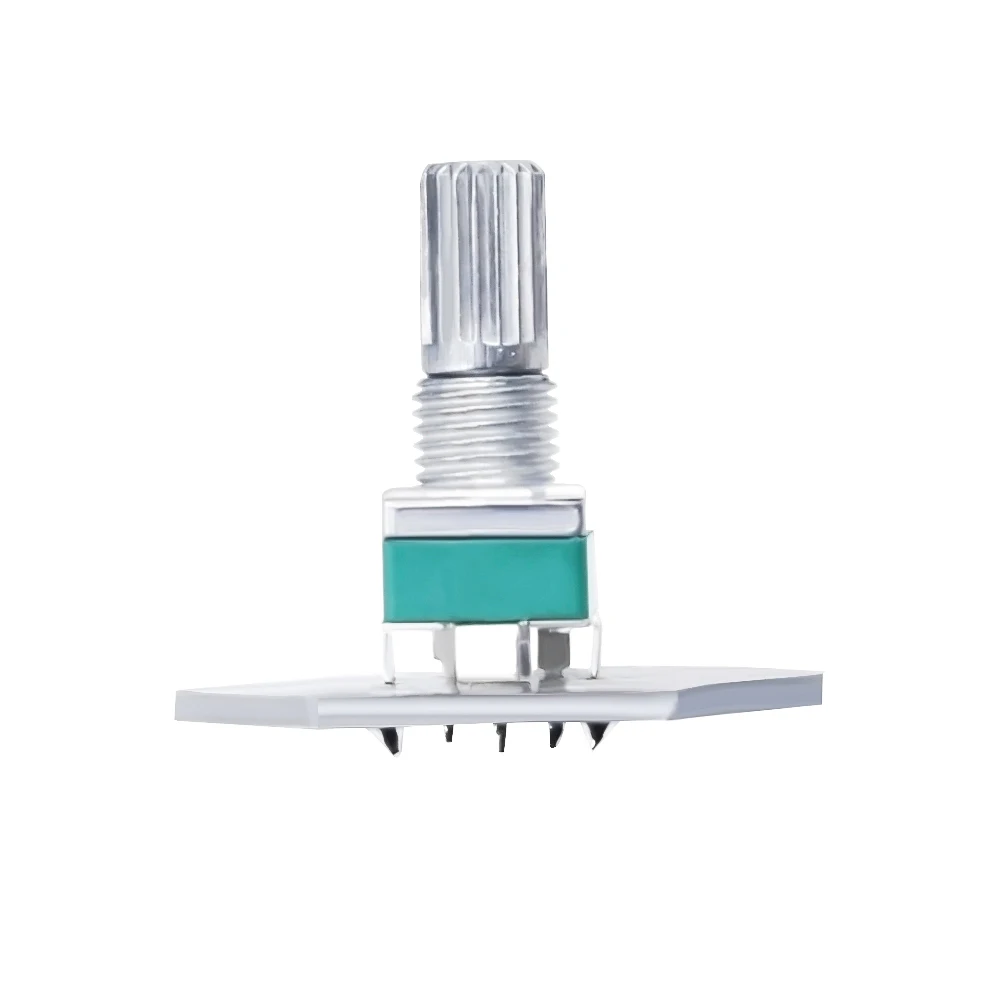

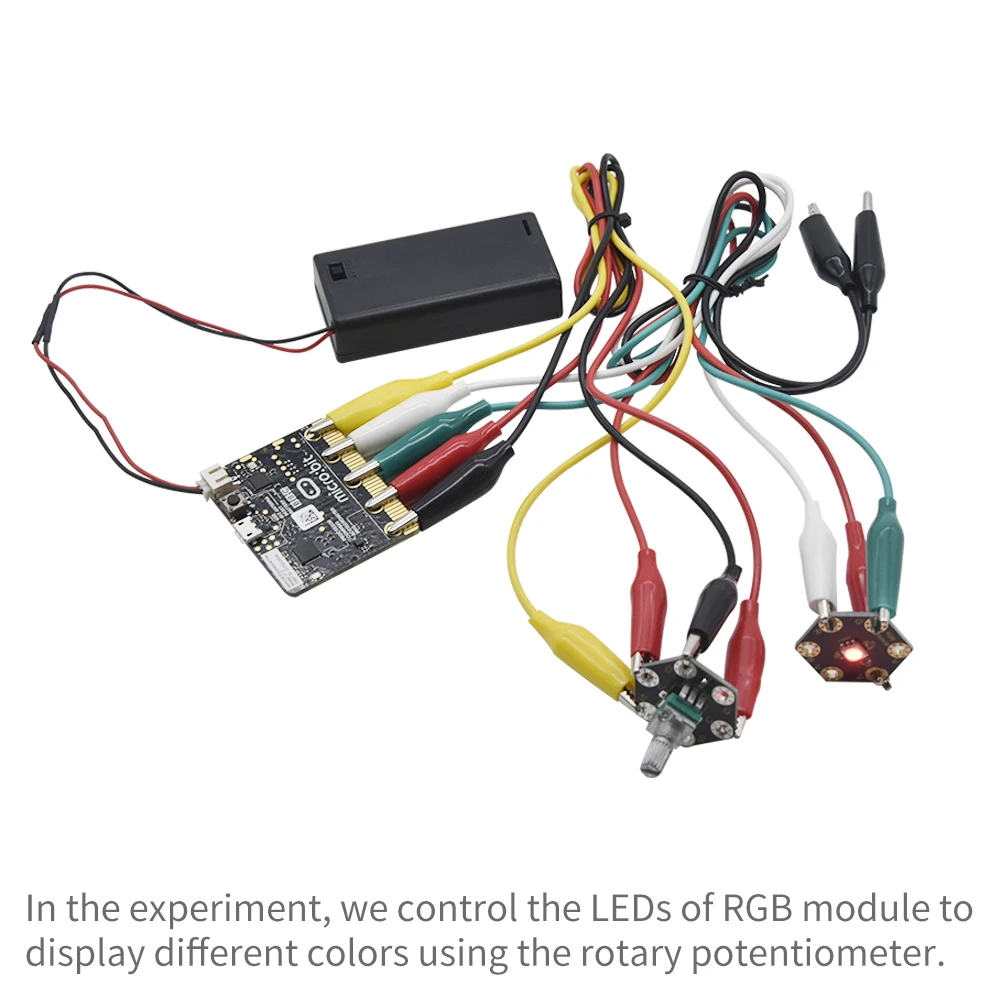

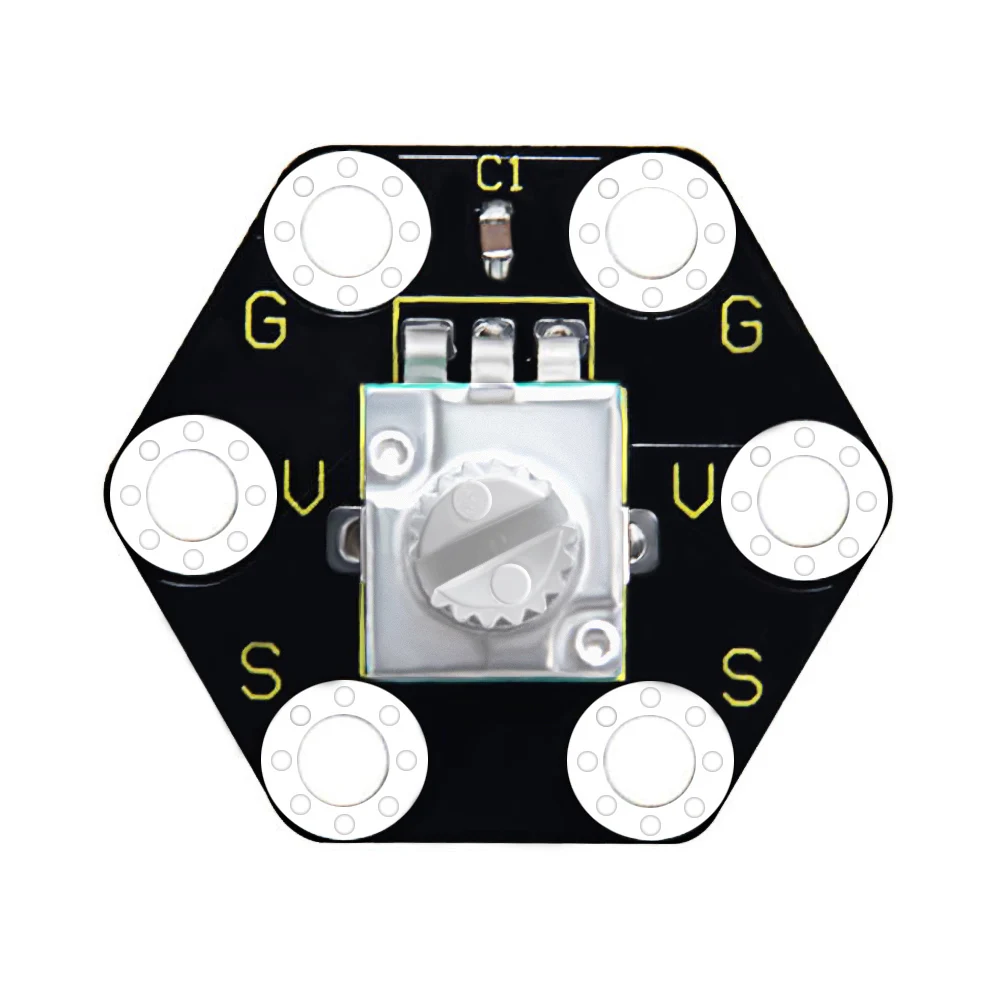

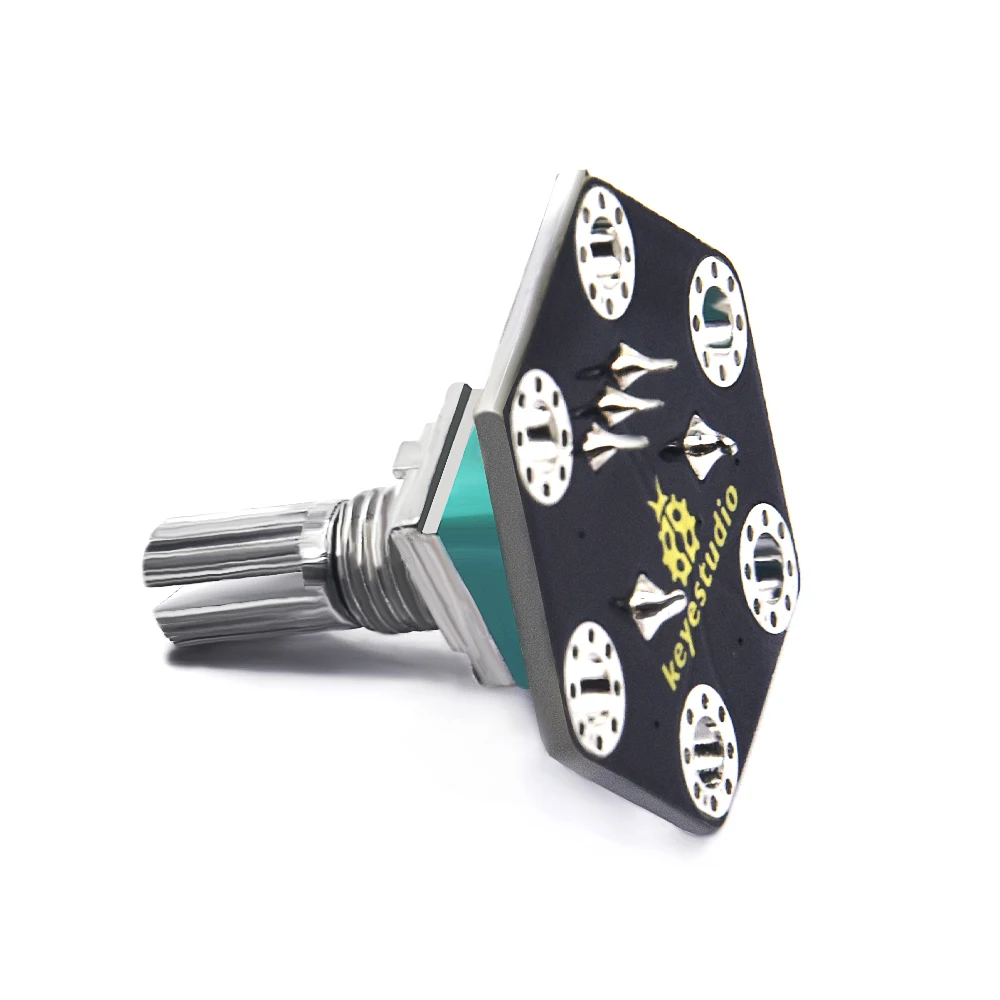

micro bit honeycomb rotary potentiometer module is fully compatible with micro bit control board. In the experiment, we connect the module to the micro:bit control board using the crocodile clip wire. There are 6 ports on the module. The ports with the same name are connected; when connecting the micro:bit control board, we only need to connect 3 ports. The module uses a 10K adjustable resistor. By rotating the potentiometer, we can change the value of the resistor and then build the circuit to convert the resistance change into the voltage change.
Parameters
- Working voltage: DC 3.0-3.3V
- Control port: analog port
- Size: 25mm*28mm*26mm
- Weight: 6.7g
- Environmental attributes: ROHS
