Product Details

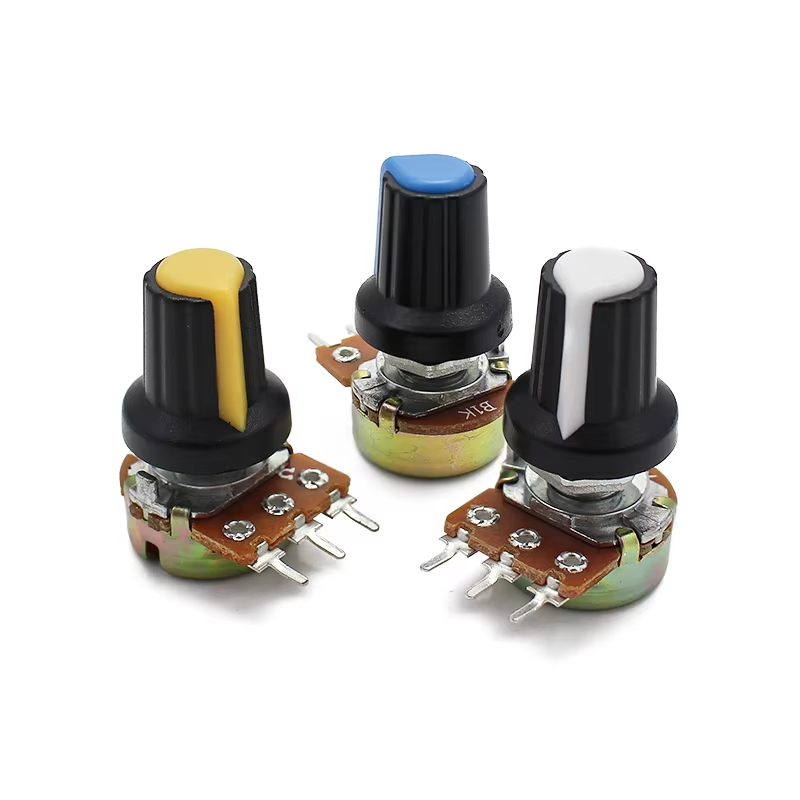

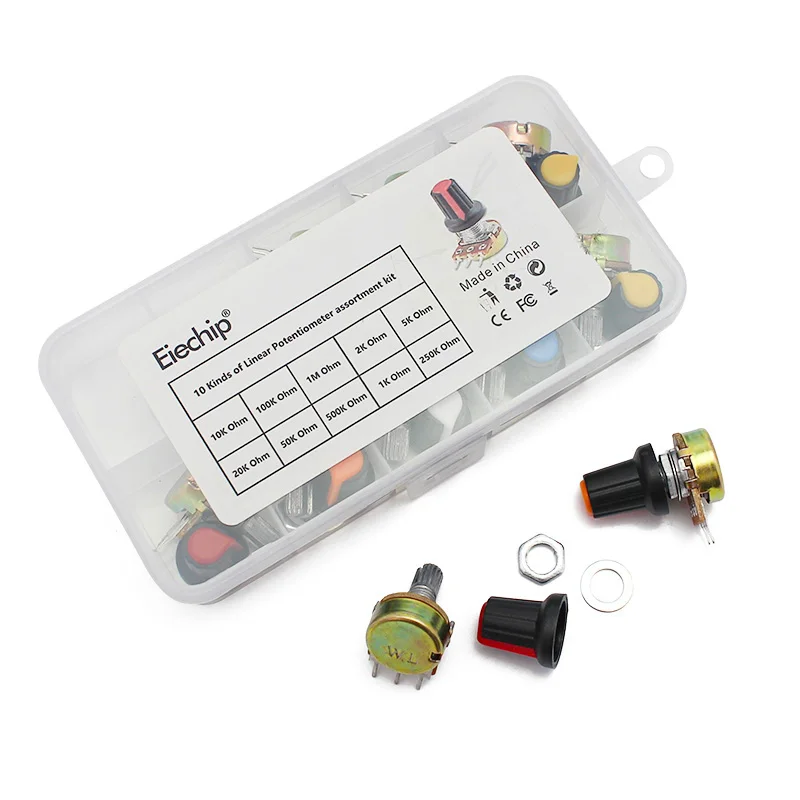

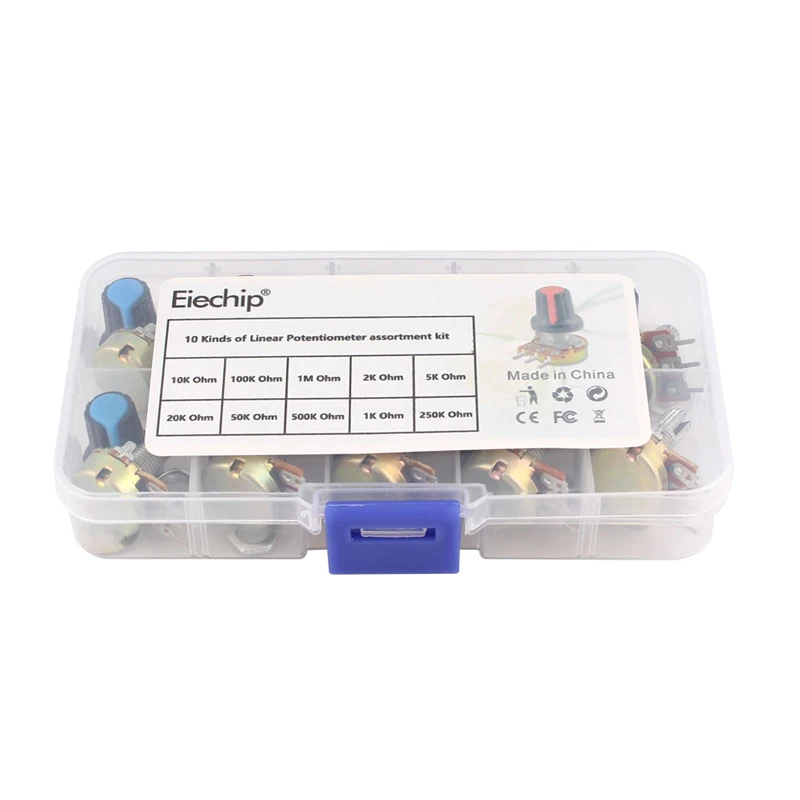

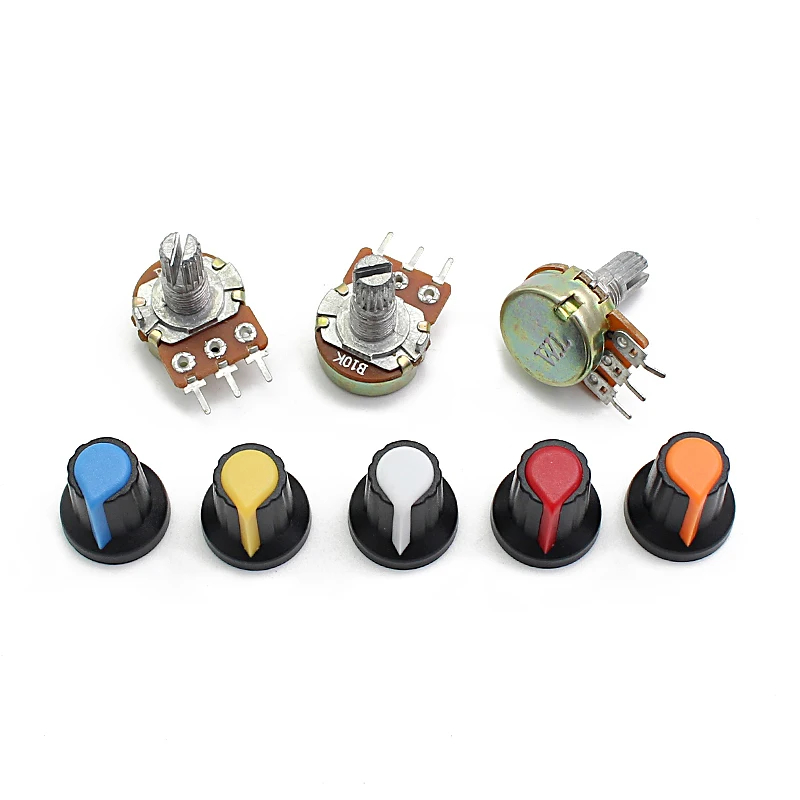

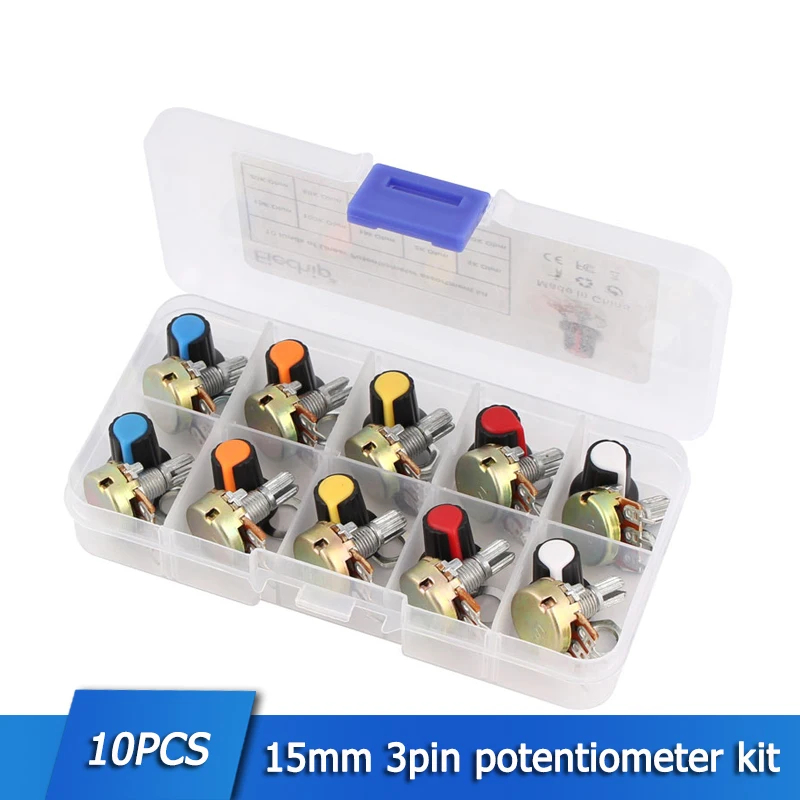

WH148 Potentiometer Kit B1K 2K 5K 10K 20K 50K 100K 250K 500K 1M 15mm Linear Taper Rotary Resistor Potentiometers 3Pin With Knob

Product Description:
A potentiometer is an adjustable electronic component. It is composed of a resistor and a rotating or sliding system. Manually adjust the rotating shaft or sliding handle to change the moving contact on the resistor body The resistance between the moving contact and any fixed terminal is changed, thus changing the voltage and current.
Potentiometer is a synchronous adjustment potentiometer made of resistor substrate. Its role in the circuit is to obtain the output voltage that is in a certain relationship with the input voltage (external voltage), so it is called a potentiometer. Sliding resistor is a potentiometer commonly used in the laboratory. This potentiometer has large volume, large power, visual sliding, and can also be used as a current limiter.

Electrical performance:
Operating temperature: – 10C~100 ° C
Rated power: Curve: 125W Other curve B:
Maximum working voltage: Curve B: 200V Other Curve
Resistance range: 1K~1M
Allowable deviation of resistance value: ± 20% (1M9 or more30%)
Rotating noise: ≤ 47mV
Terminal resistance: R ≥ 250K Ω 0.1% R max 250K Ω
>R>10K Ω 20 Ω max 10K Ω ≥R
Resistance rule: A, B, C
Double synchronization error: 0 ^~40dB ± 3Db
Dielectric strength: AC500V.1minute
Insulation resistance: More than 100MQ at DC500V

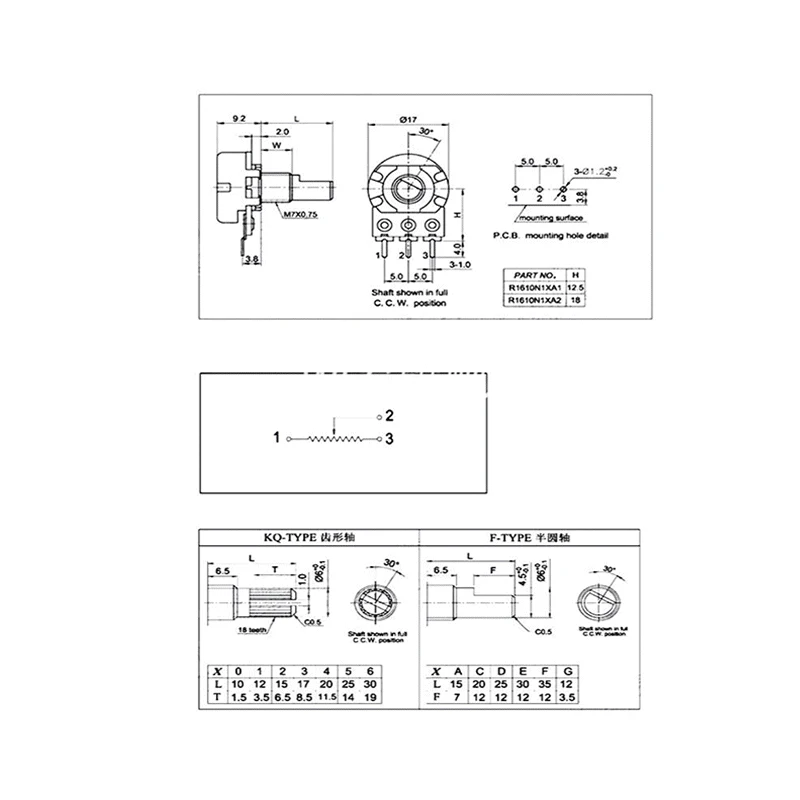

Mechanical properties:

Rotating torque: 2~20mN m( ~200gf. cm)
Total rotation angle: 300 ± 5 °
Rotating life: 10000 cycles
Stopping strength: 6kgf cm
Axial push-pull strength: 60N
Positioning position: Center detent or 10, 20, 40, Position clicks
Welding: 235 ° C ± 5 ° C: ≤ 3s
