1. Description

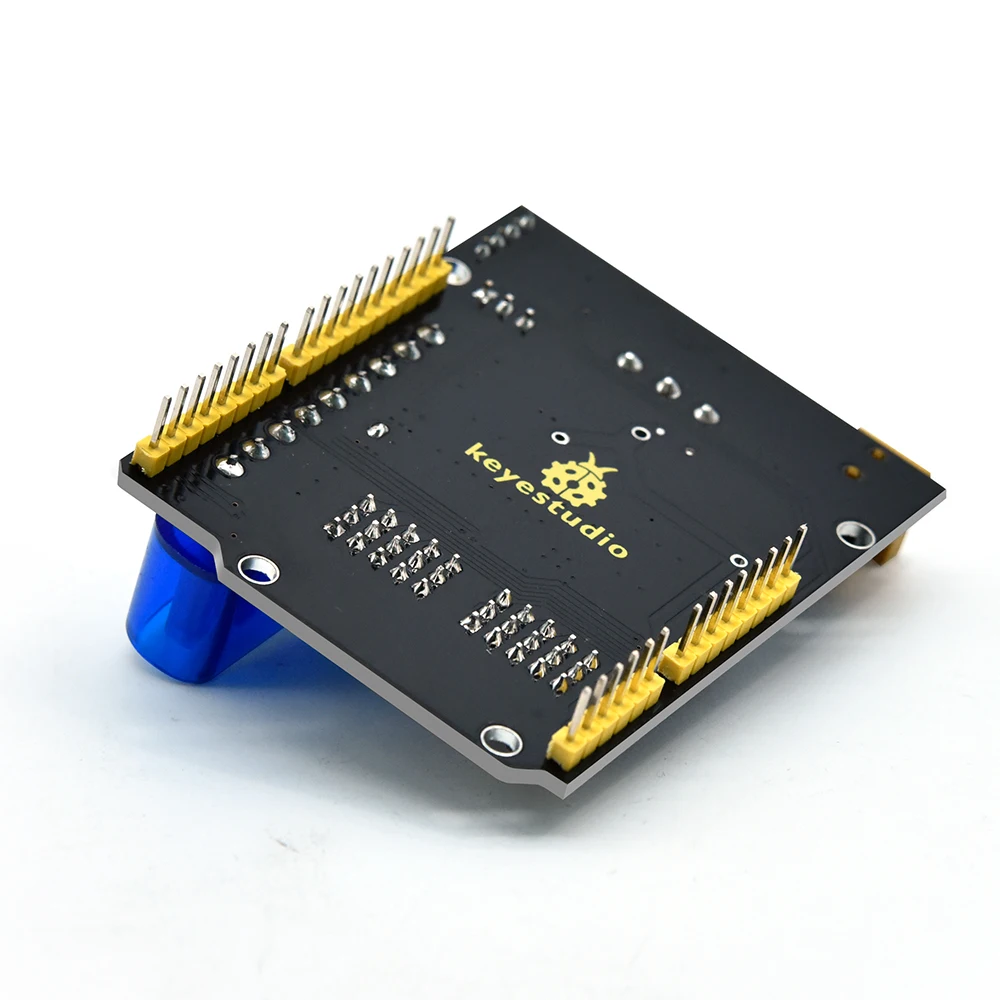

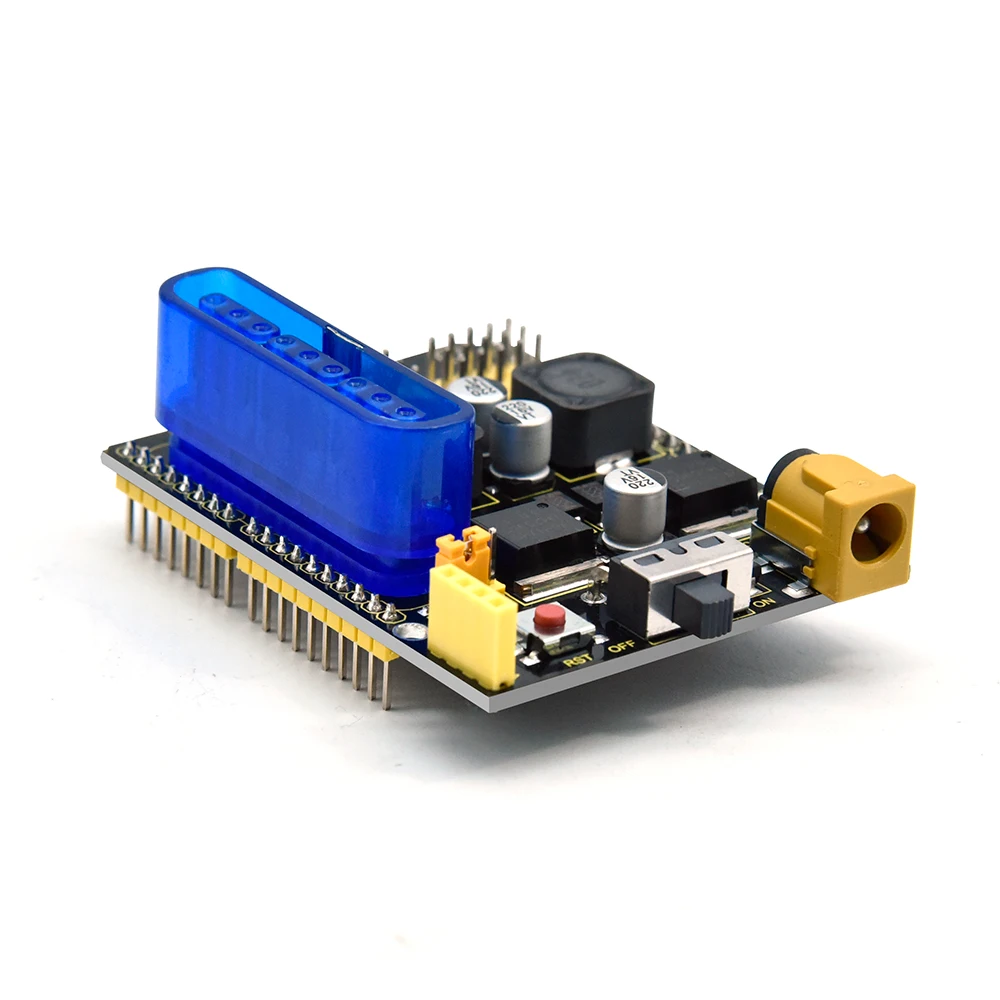

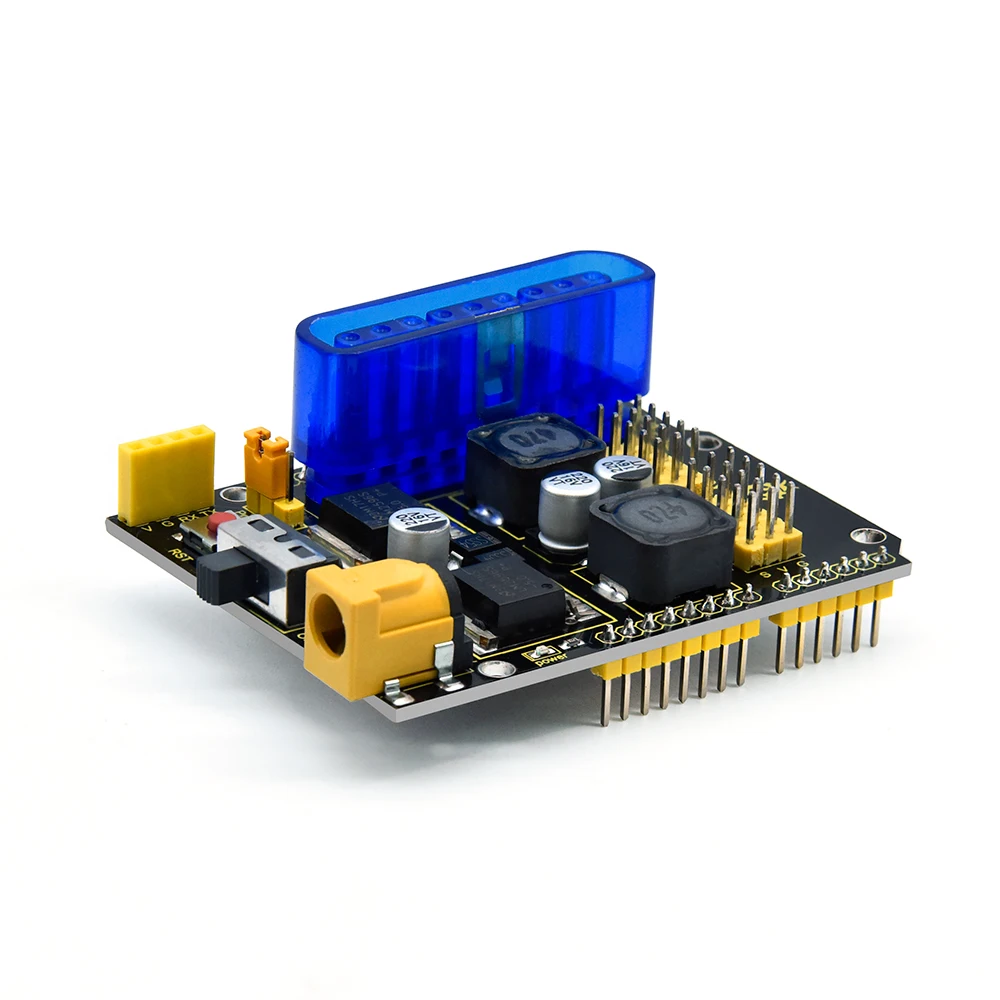

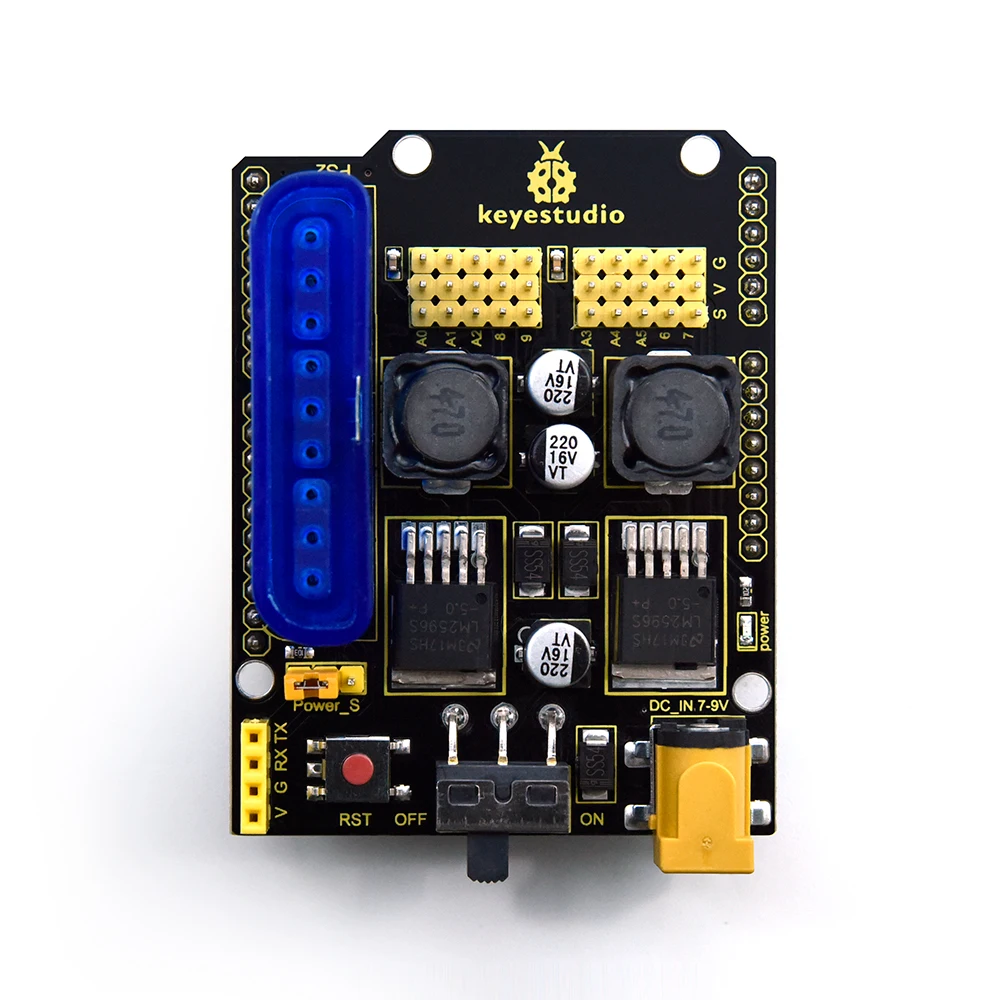

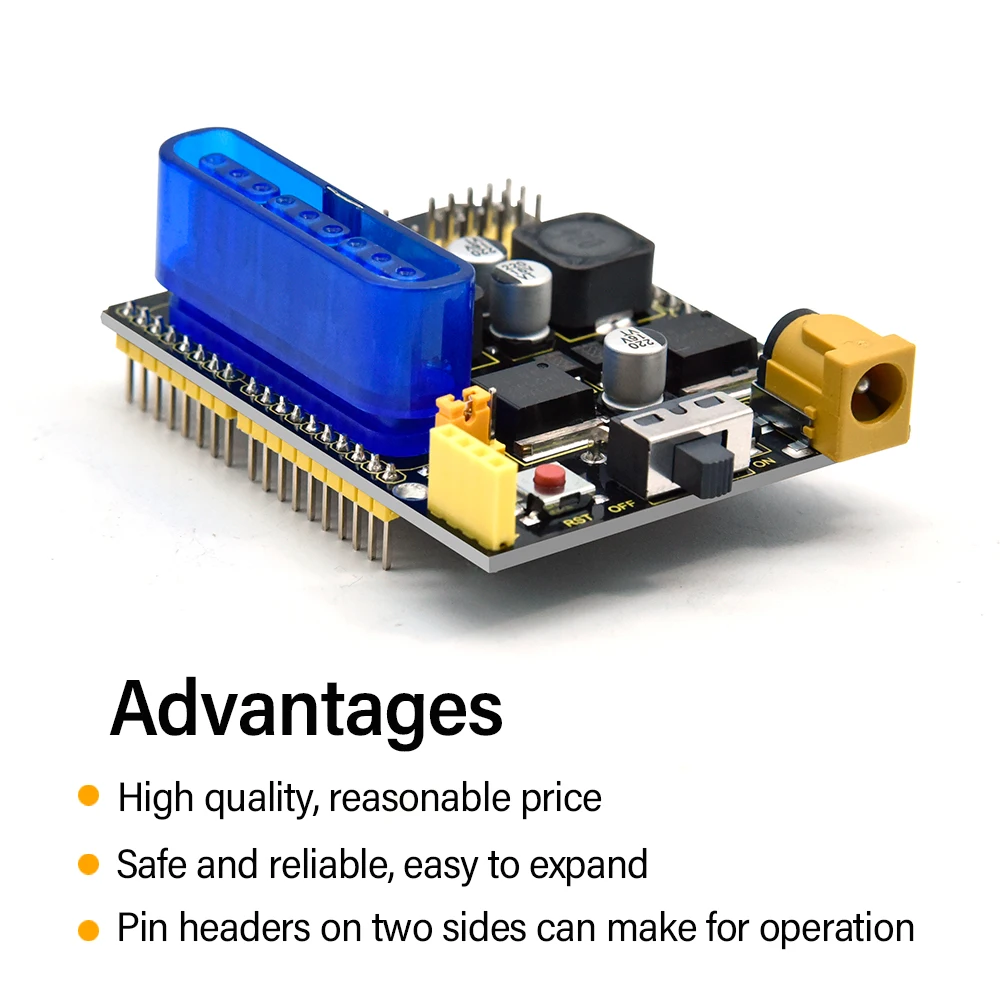

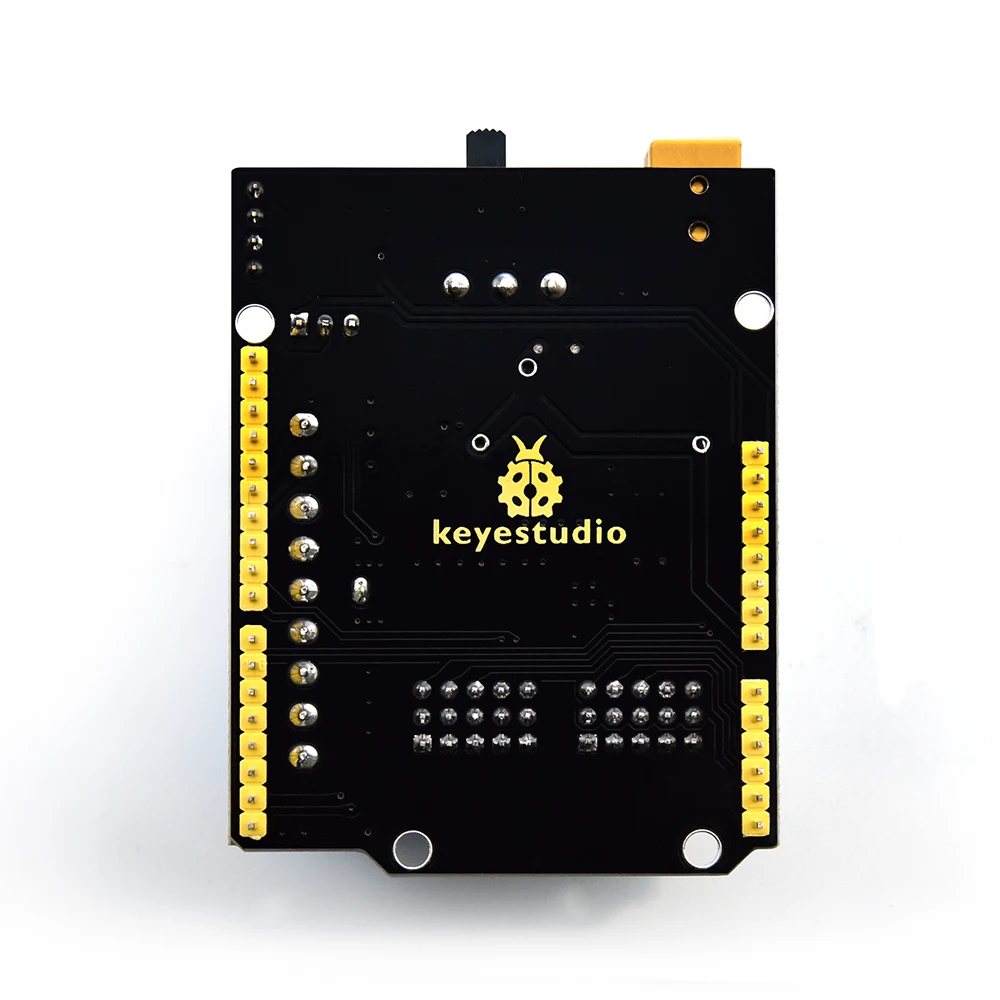

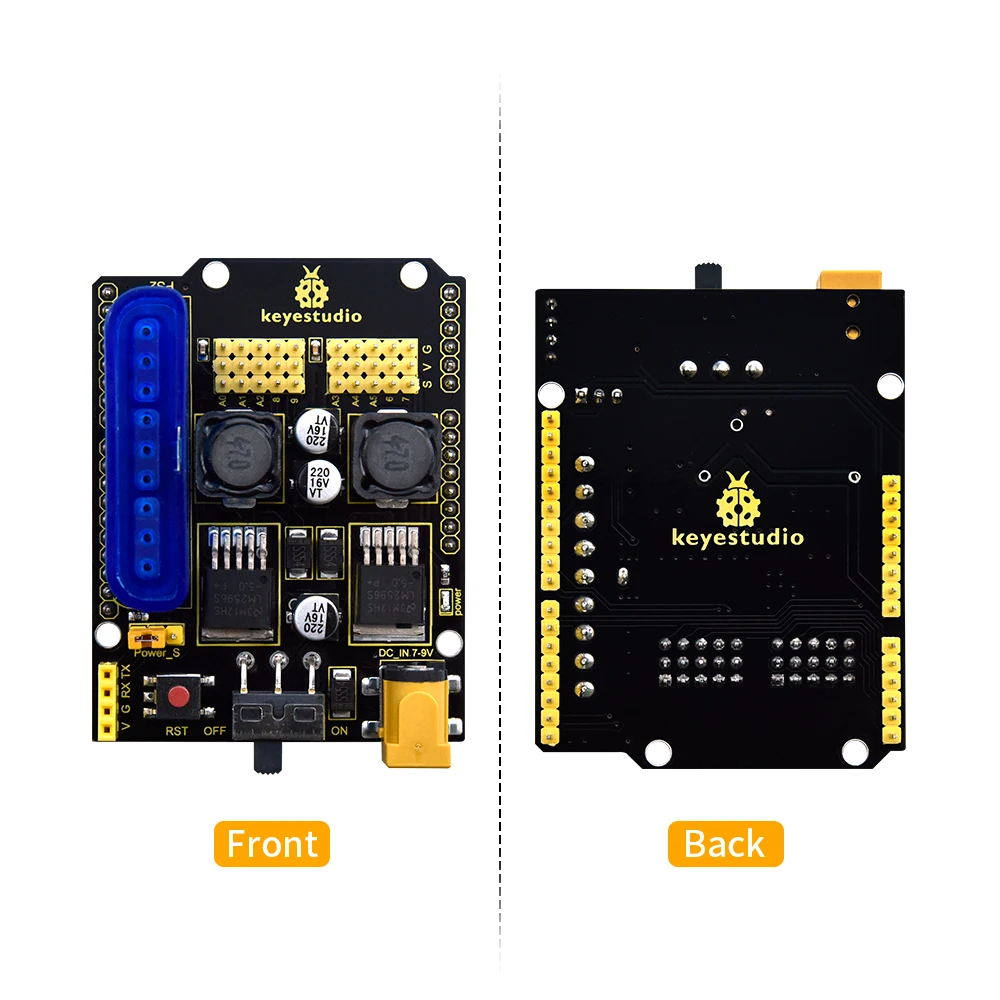

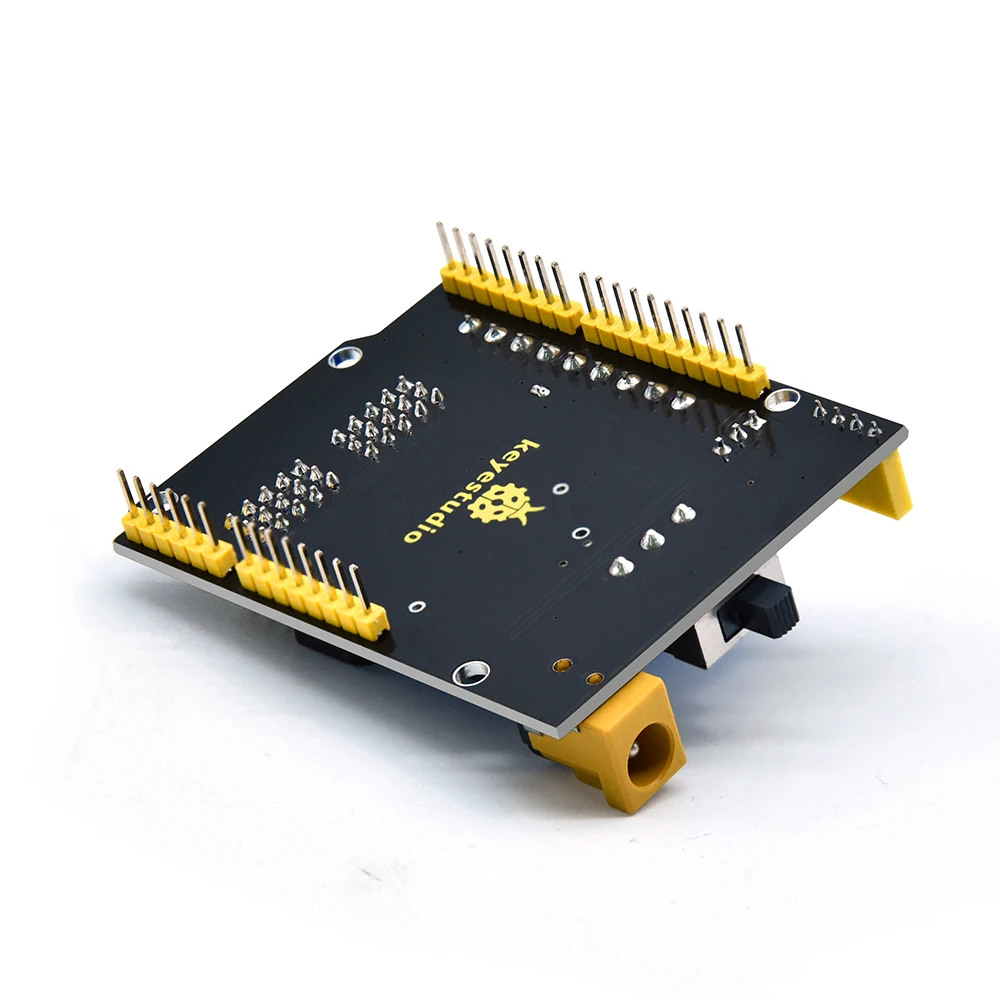

This is an Arduino servo driver shield.

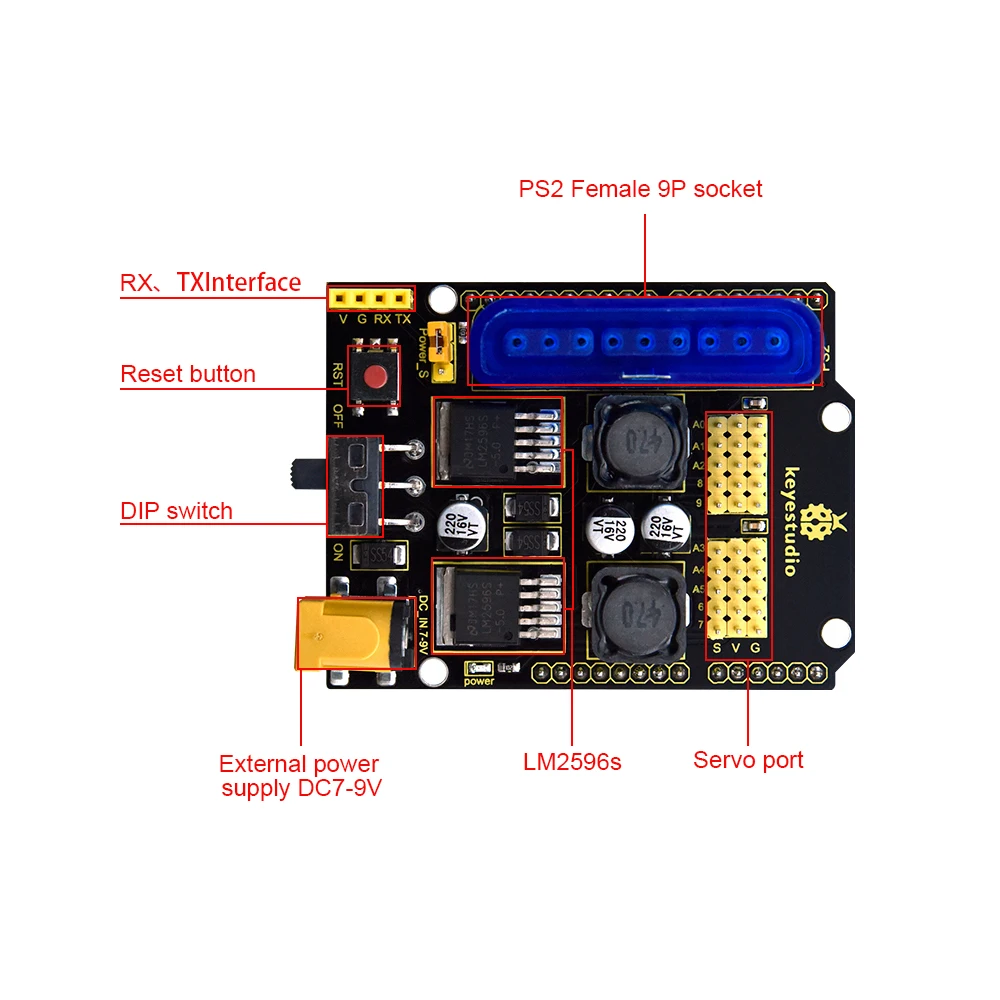

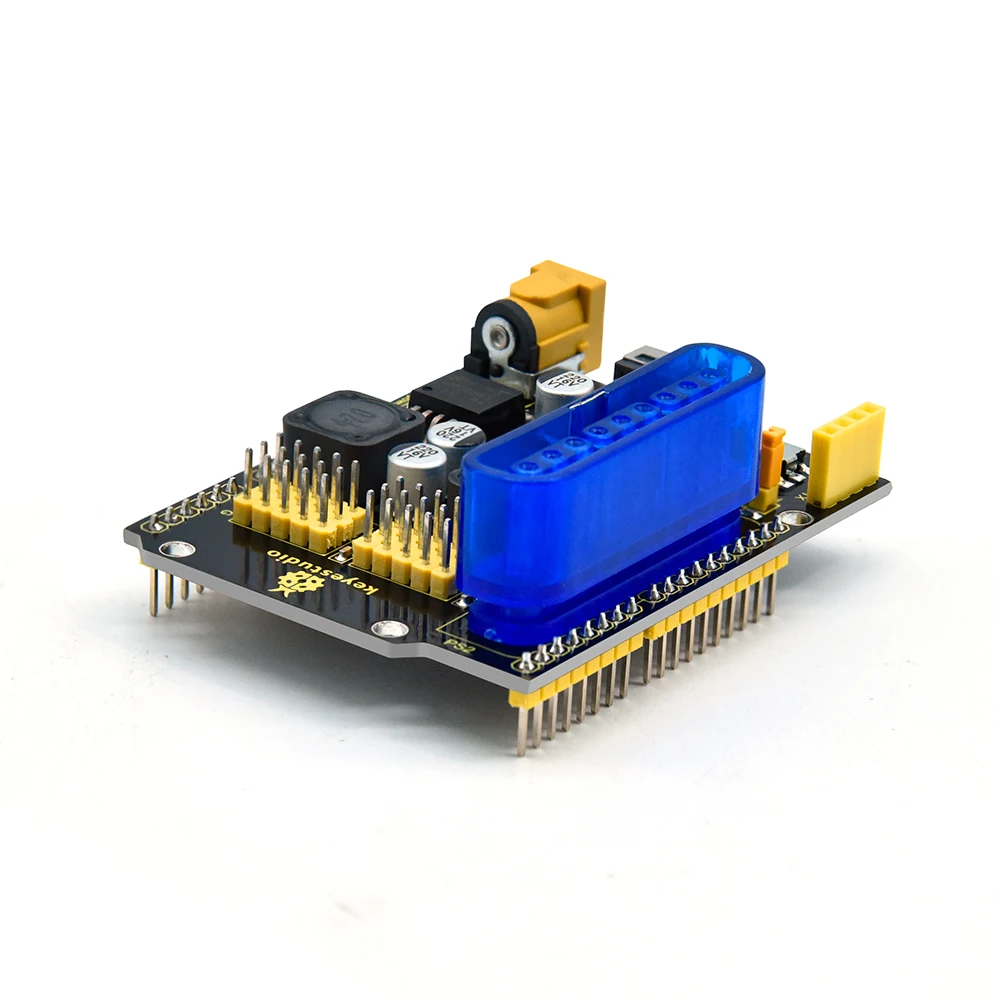

It has a PS2 interfaceforusinga PS2 handle control.
It contains 10 IO interfaces used to connect servos or other sensors.in addition, we have also extended RX/TX interfacesto interface withserial communication modules likeBT modules.

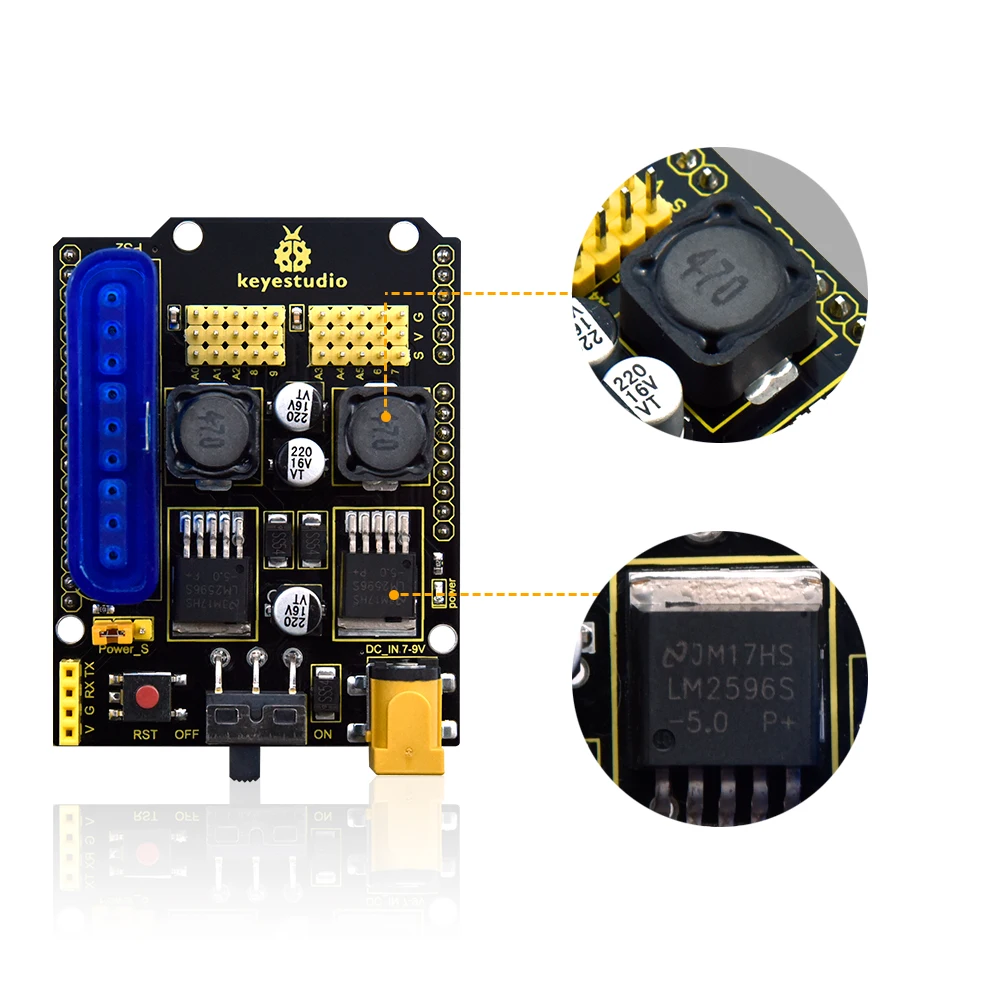

There are two LM2596 voltage regulator ICs onboard, which can provide a stable 600mA current for each servo.
It is alsoapplied to mechanical structures such as robotic arms.
2.Specification
Input voltage VIN: DC 7-9V
Input current VIN: maximum 5A
Output voltage: 5V
Output current: max 3A
Voltage regulator IC: LM2596S
Frequency: 150kHz
PS2 interface: PS2 female 9P socket
Working temperature: 0~50

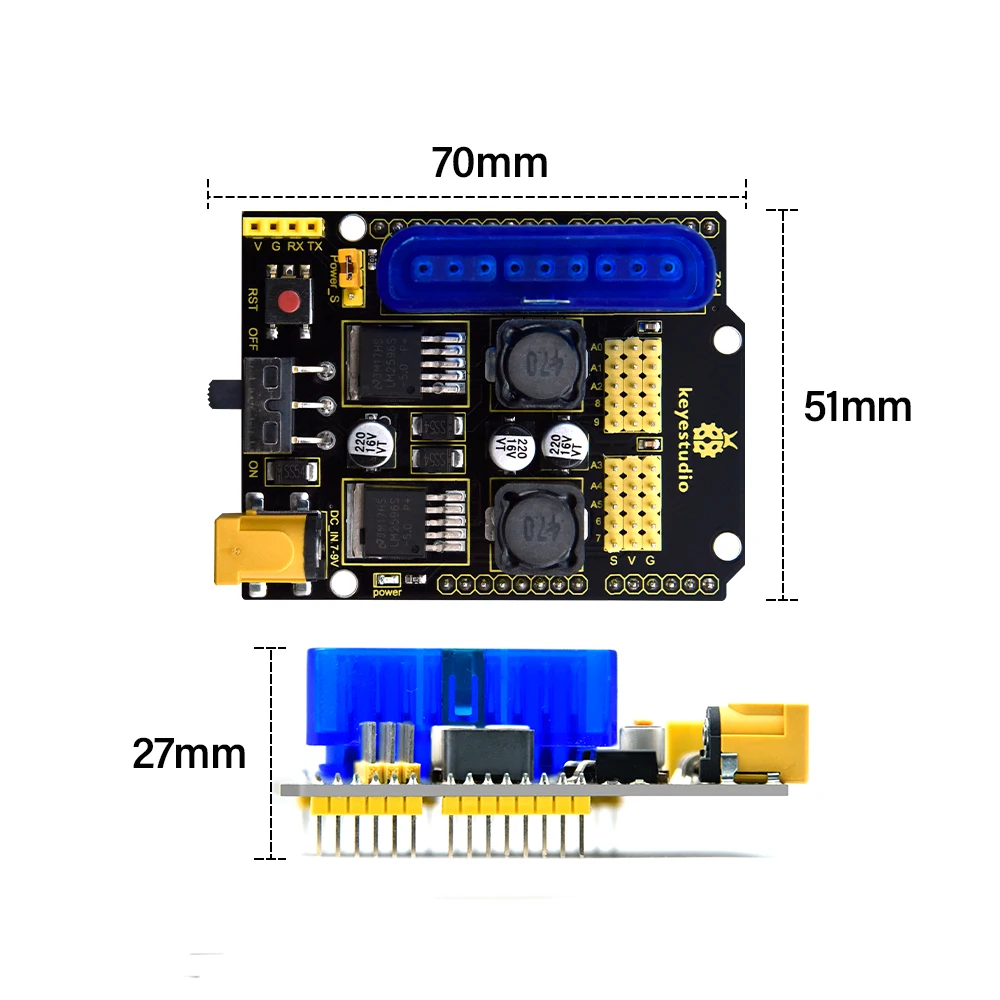

Size: 73*53.34mm

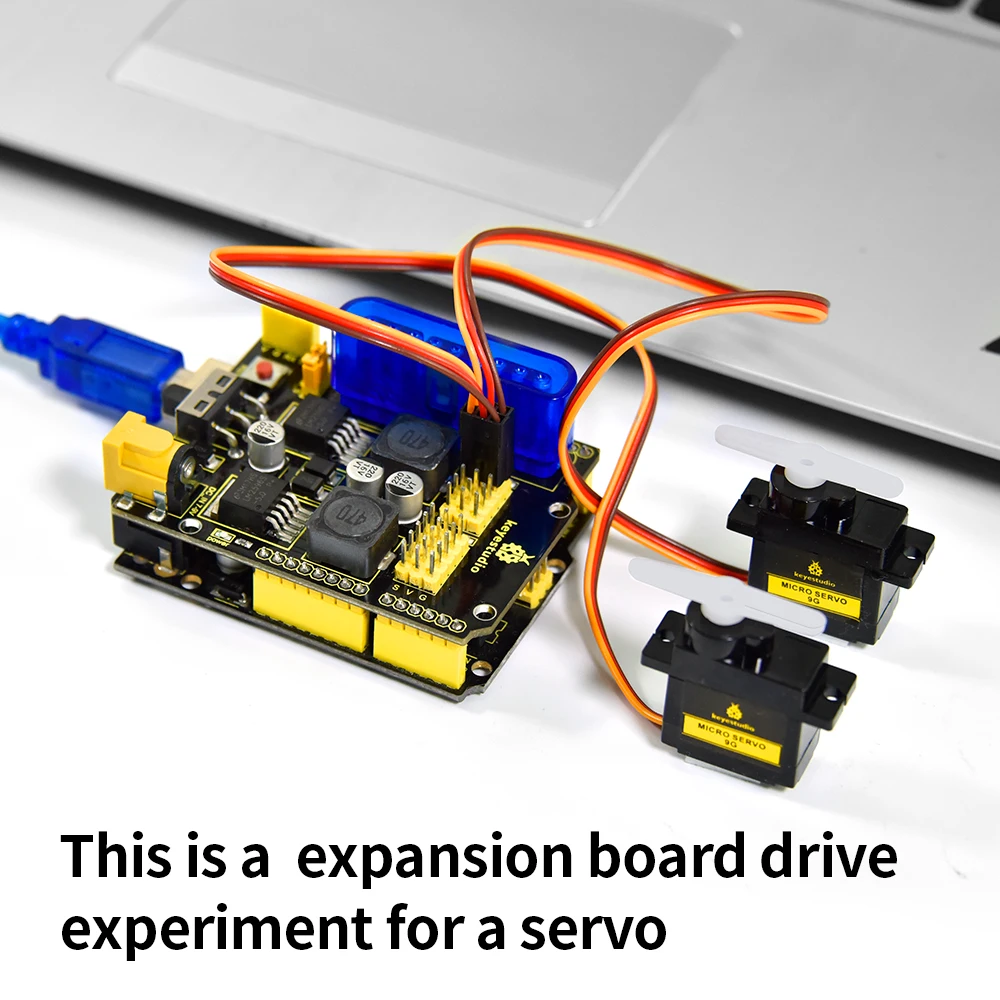

3.Test Result

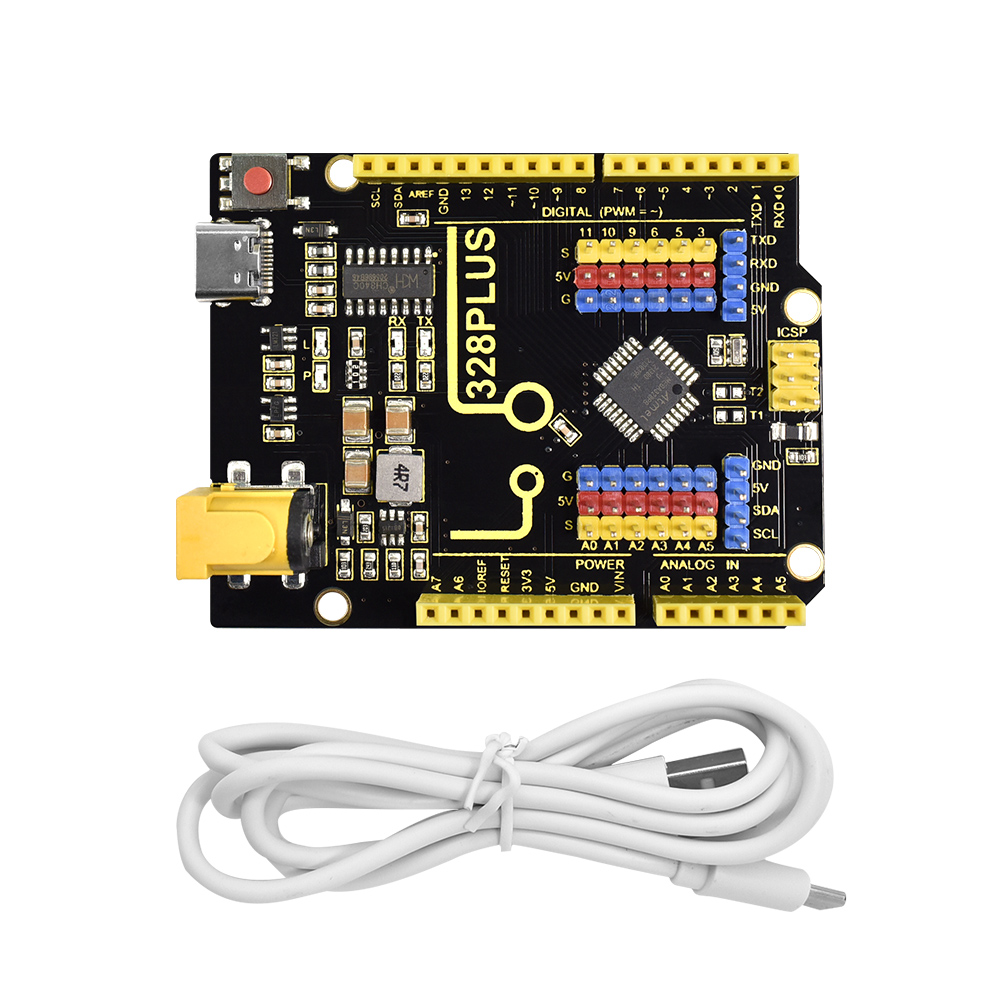

Stack the driver board onto the control board, wire up and upload the code. Four servos rotate from 0° to 180°, then from 180° to 0°
