Purchase Note
This robot is without batteries, and the battery is sold separately, and the battery type is AA battery, there is a link for downloading instructions, if you can’t find it, please do not hesitate to contact us.
2WD Smart Robot Car Kit
Product Description
● The main body of the chassis is made of laser-cut black acrylic plate, which can be fixed on both sides with two gear motors and one supporting universal casters.
● It also has four AA (unattached) compartments with battery terminals protruding from the case for servicing from the top.
● One side of each tt motor has fixed wheels, while the other side is connected to the code plate. The chassis has sufficient holes and openings for mounting sensors, servos, motor drivers, and control modules.
● This kit can be used to build robots for range sensing, obstacle avoidance, line following, flame detectors, speed testers, wireless remote control cars, and any other creative work.
Product Feature
This is a cost-effective and interesting robotic car kit, with a simple mechanical structure, a beautiful system, and easy installation.
● Use the tutorial to write code, which will take you into the world of intelligent programming robot world.

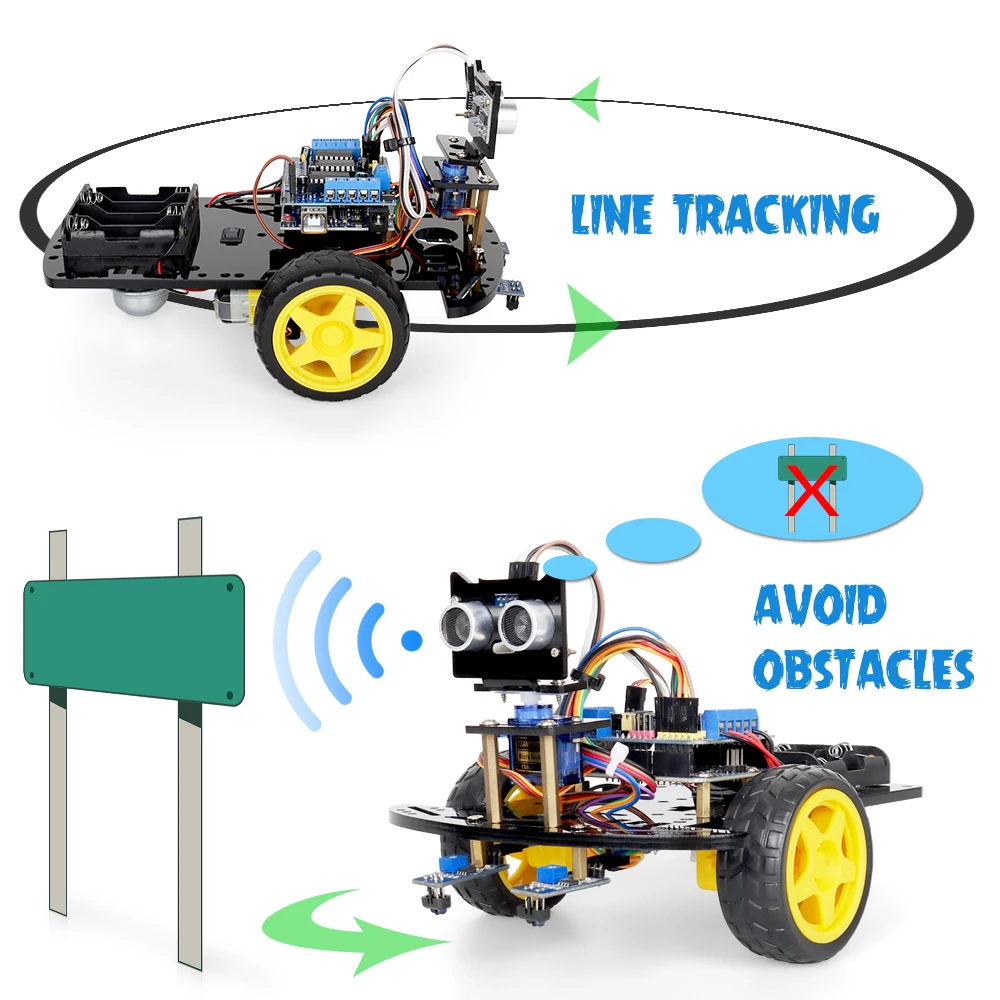

● Keep the car away from obstacles with a lively and interesting ultrasonic sensor suite; at the same time, two infrared tracking modules are used to make the smart car have the line tracking function.
Specification
Motor voltage range: 1-6V
Motor shaft length: 10mm
Motor gear ratio: 1:48
Speed: 6.0V 100rpm / min
Wheel diameter: 66mm
Chassis material: Acrylic
Package: Standard Anti-static Poly Bag Plastic Box

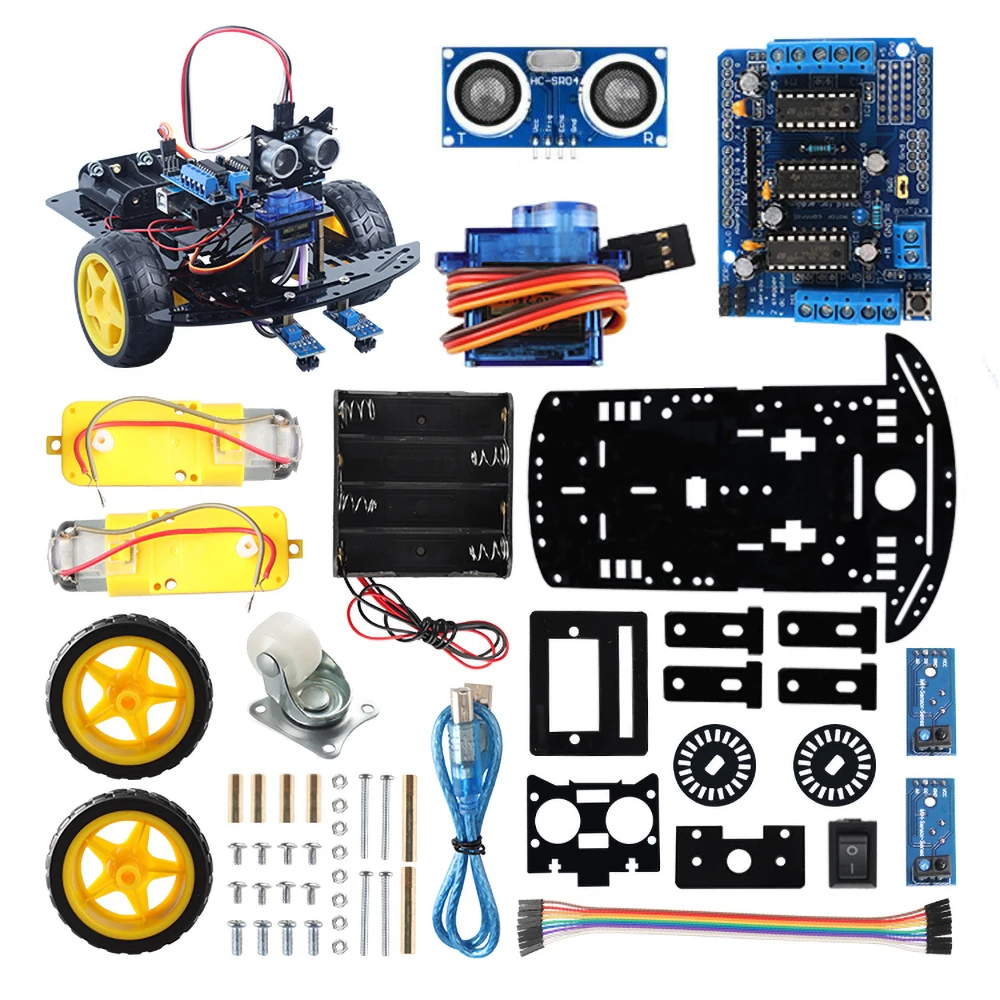

Kit Contains
1 x 2WD Smart Car Chassis with 4 AA battery holder ( without batteries)
1 x ATmega328 Development Board Improved Version
1 x L293D Motor Drive Shield Expansion Board
1 x Ultrasonic Sensor HC-SR04 and acrylic bracket
2 x TCRT5000 Infrared Reflective Sensor Tracking Module
1 x SG90 180 Degrees 9G Micro Servo and acrylic bracket
10 x 20cm Female to Female 40Pin Jumper Wire
Due to the shipping reason, We’ll ship the kit in pieces, not an assembled set, and doesn’t contain batteries.
Comprehensive Starter Robot Kit: Our starter robot car kit is an all-in-one solution designed for beginners in robotics and Arduino programming. It provides everything you need to build and program your robot, making it an ideal starting point for enthusiasts eager to dive into the world of robotics.
Precision Black-Line Tracking: Experience cutting-edge technology with our black-line tracking feature. The robot is equipped with advanced sensors that enable precise navigation along black lines, enhancing its capabilities for line-following tasks. This feature not only adds a fun dimension to your robot but also serves as an educational tool for understanding sensor-based navigation.
Tailored for Arduino Programming: Our robot kit is specifically tailored for Arduino programming, offering a seamless integration with the popular open-source platform. Whether you’re a beginner or an experienced Arduino user, the kit provides an excellent platform to hone your programming skills and experiment with various sensors and actuators.
Comprehensive Instructions and Codes: We understand the importance of a smooth learning curve. That’s why our kit includes detailed instructions and ready-to-use codes. The step-by-step guide empowers users to assemble the robot with ease, while the included codes serve as valuable learning resources, allowing you to understand the principles behind each function and customize the robot to suit your preferences.
Complete Robotic Kit: Say goodbye to the hassle of sourcing individual components. Our starter robot car kit is a complete package that includes all the necessary hardware, sensors, and accessories required to build a fully functional robot. This eliminates the guesswork and ensures that you have everything you need in one box, saving you time and effort so you can focus on the exciting aspects of building and programming your robot.
