Introduction:

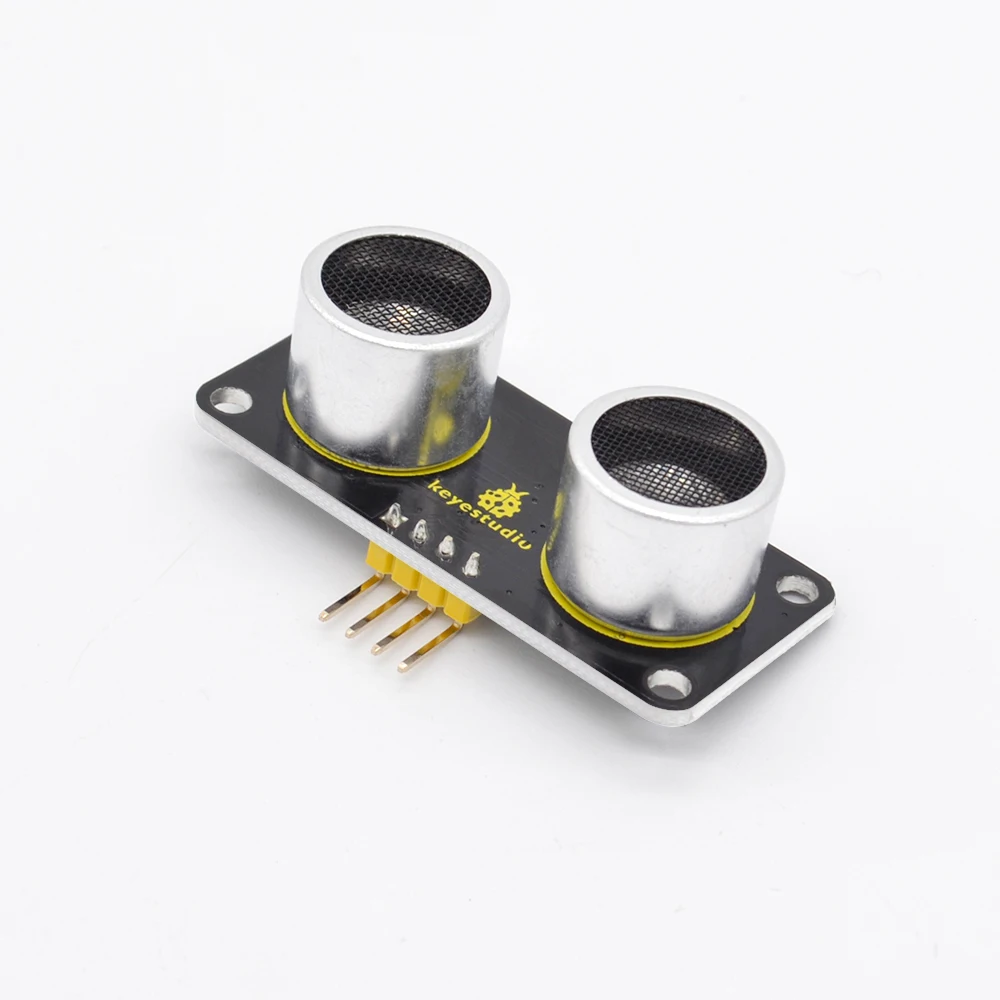

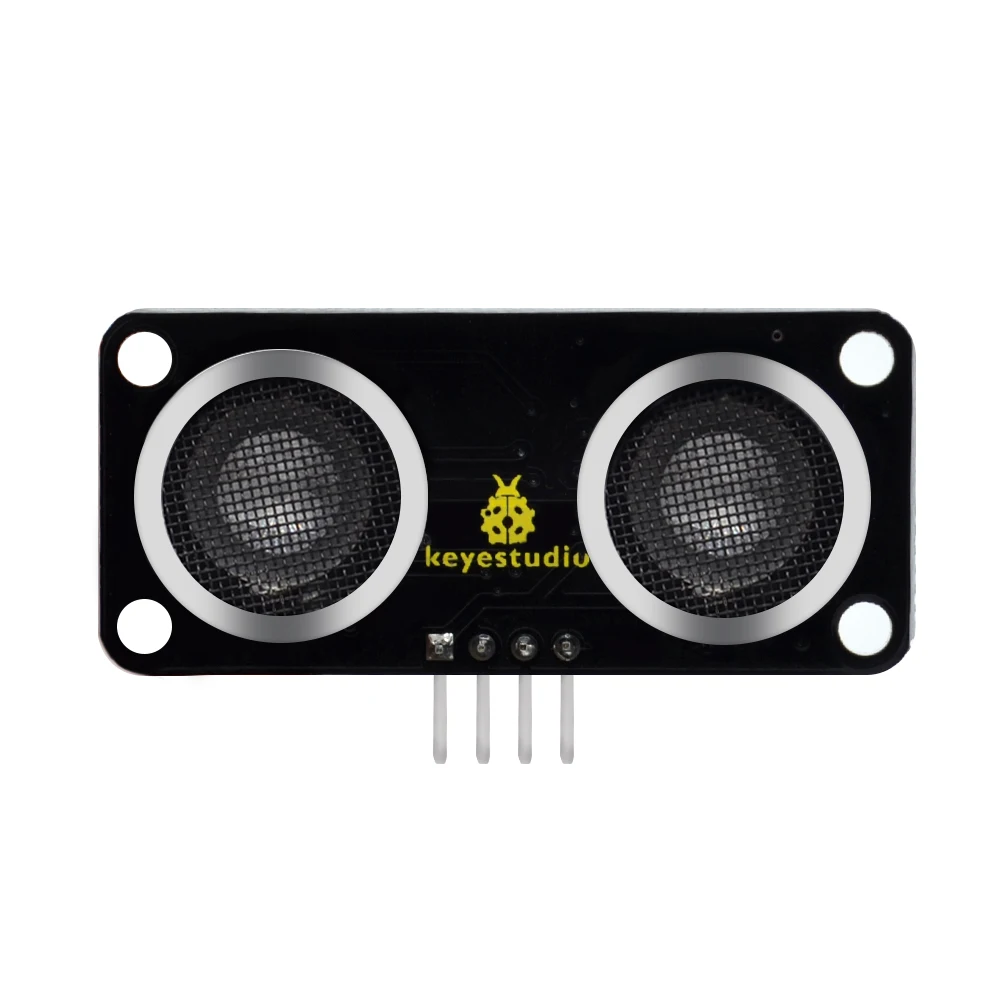

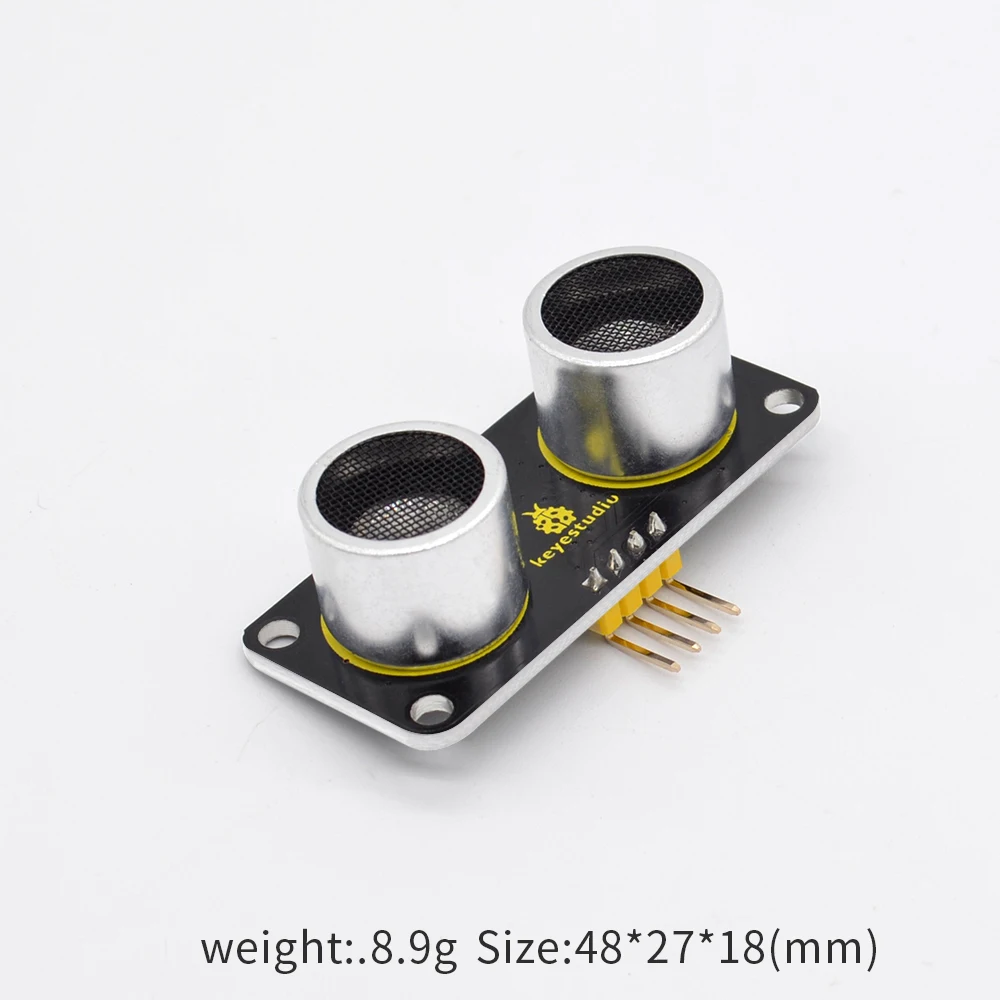

keyestudio SR01 Ultrasonic Module V2 is a very affordable proximity/distance sensor that has been used mainly for object avoidance in various robotics projects.
It essentially gives your Arduino eyes / spacial awareness and can prevent your robot from crashing or falling off a table.
It has also been used in turret applications, water level sensing, and even as a parking sensor.

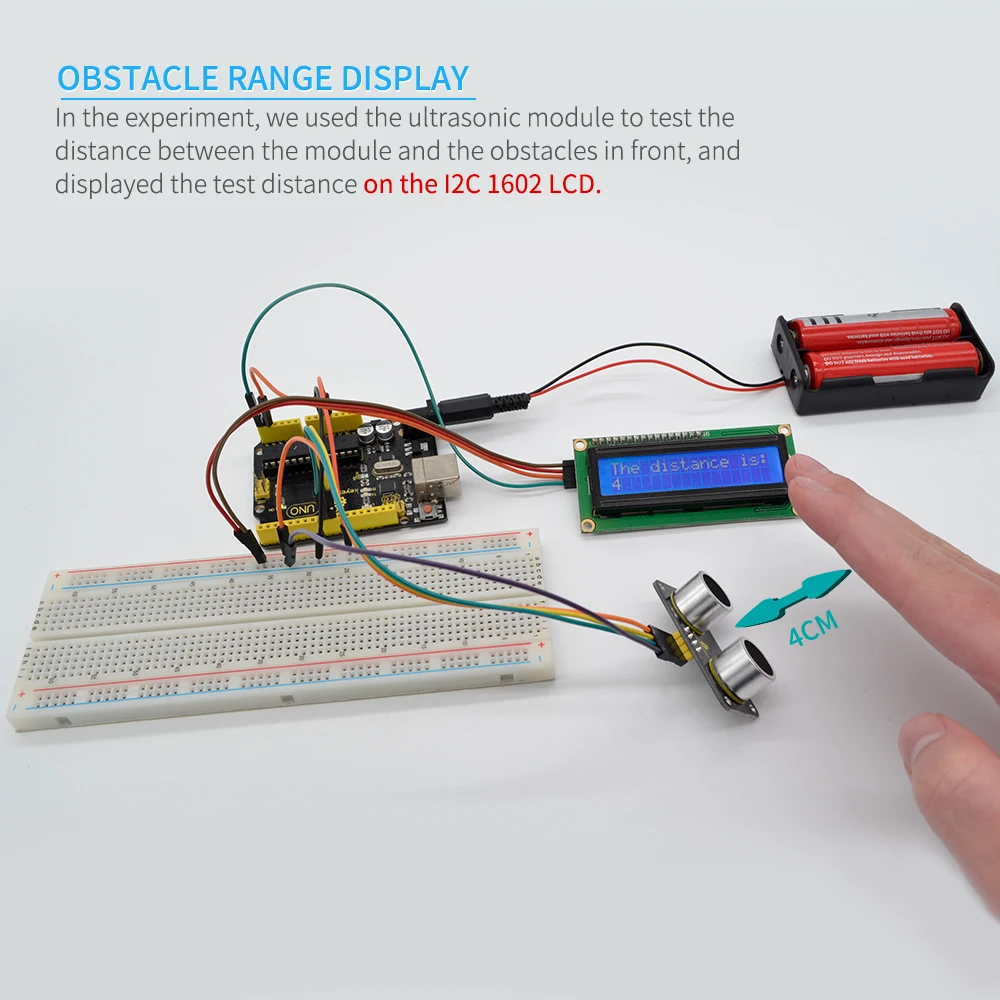

This simple project will use the SR01 ultrasonic module V2 with an Arduino and a processing sketch to provide a neat little interactive display on your computer screen.
Specification：
Working Voltage: DC 5V
Working Current: 15mA
Working Frequency: 40KHz
Max Range: 2–3m
Min Range: 2cm
Measuring Angle: 15 degree
Trigger Input Signal: 10µS TTL pulse
