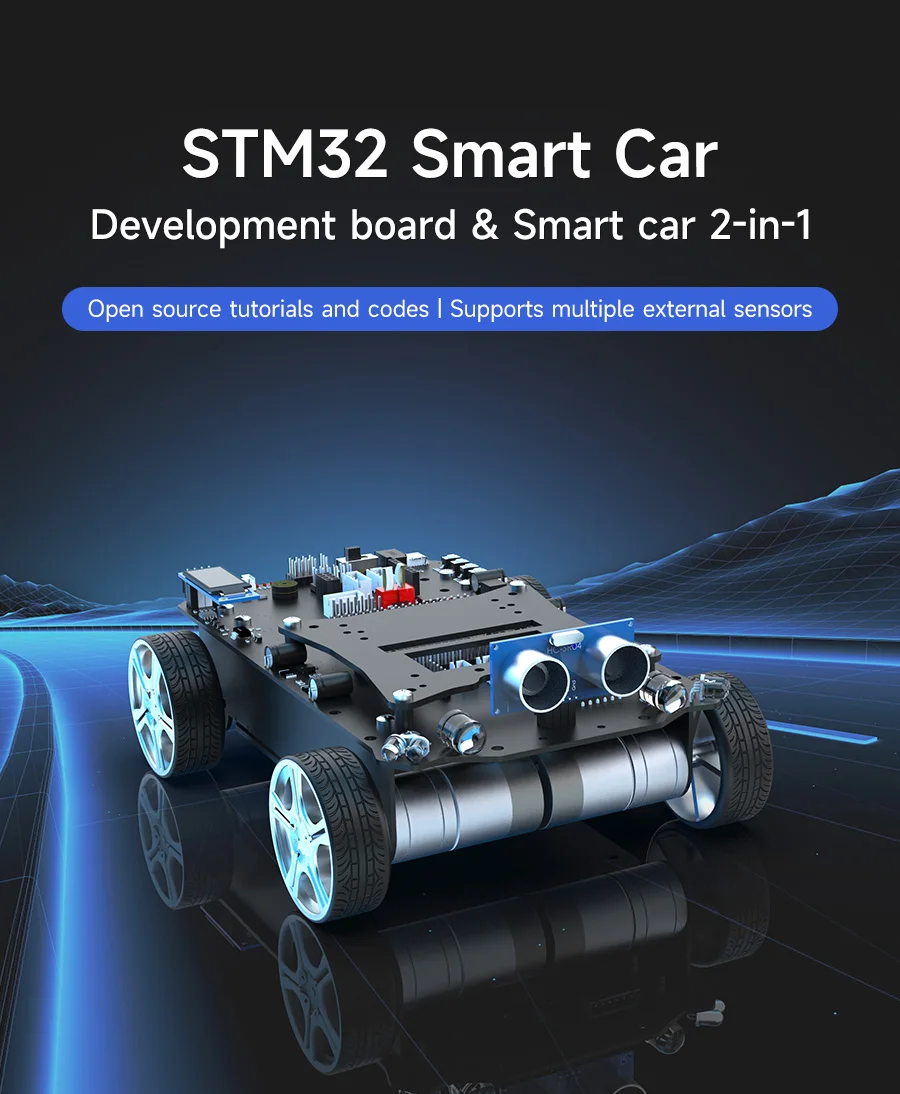

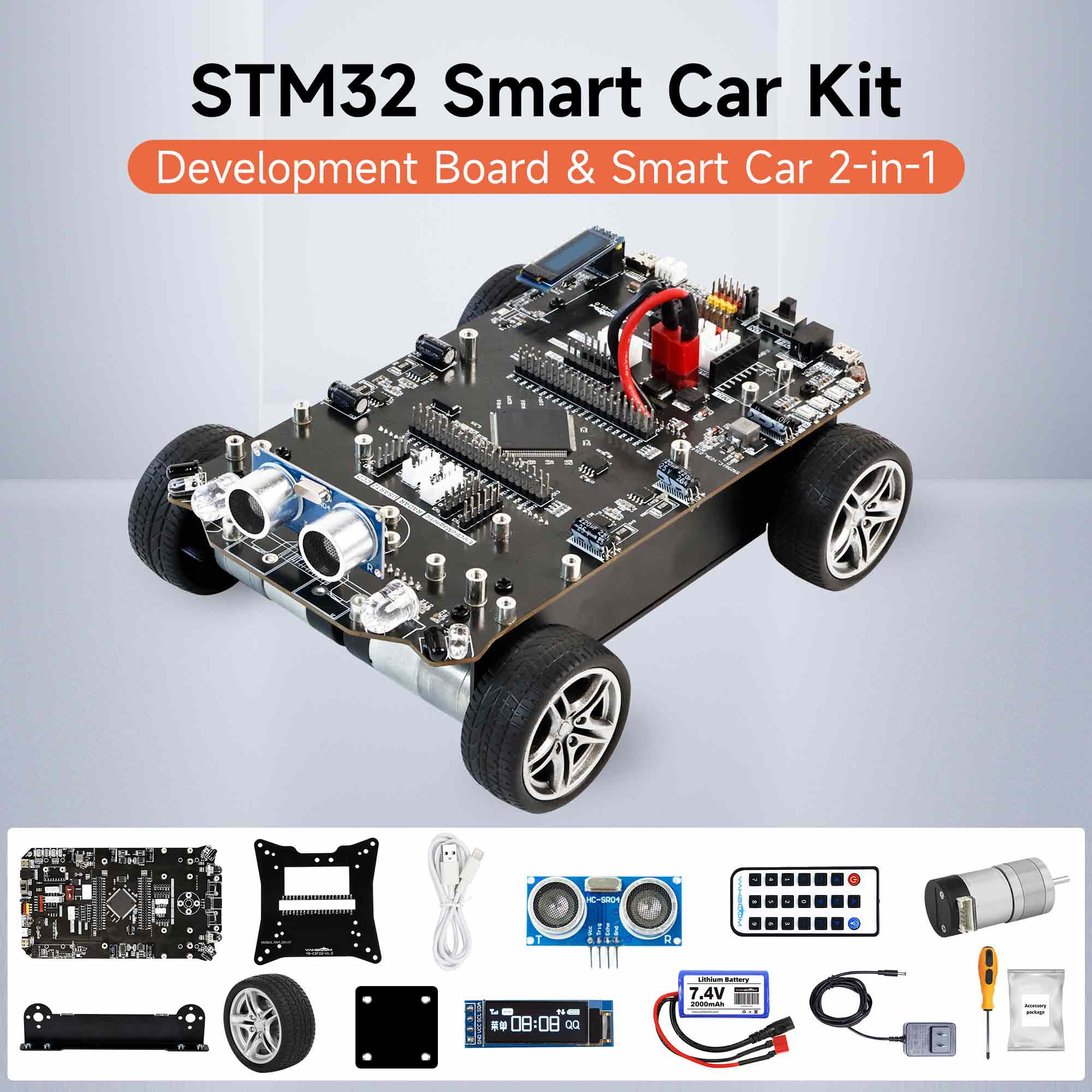

STM32 Smart Robot Car Electronic Kit With 310 Encoder Motor Ultrasonic Module DIY Development Board Project

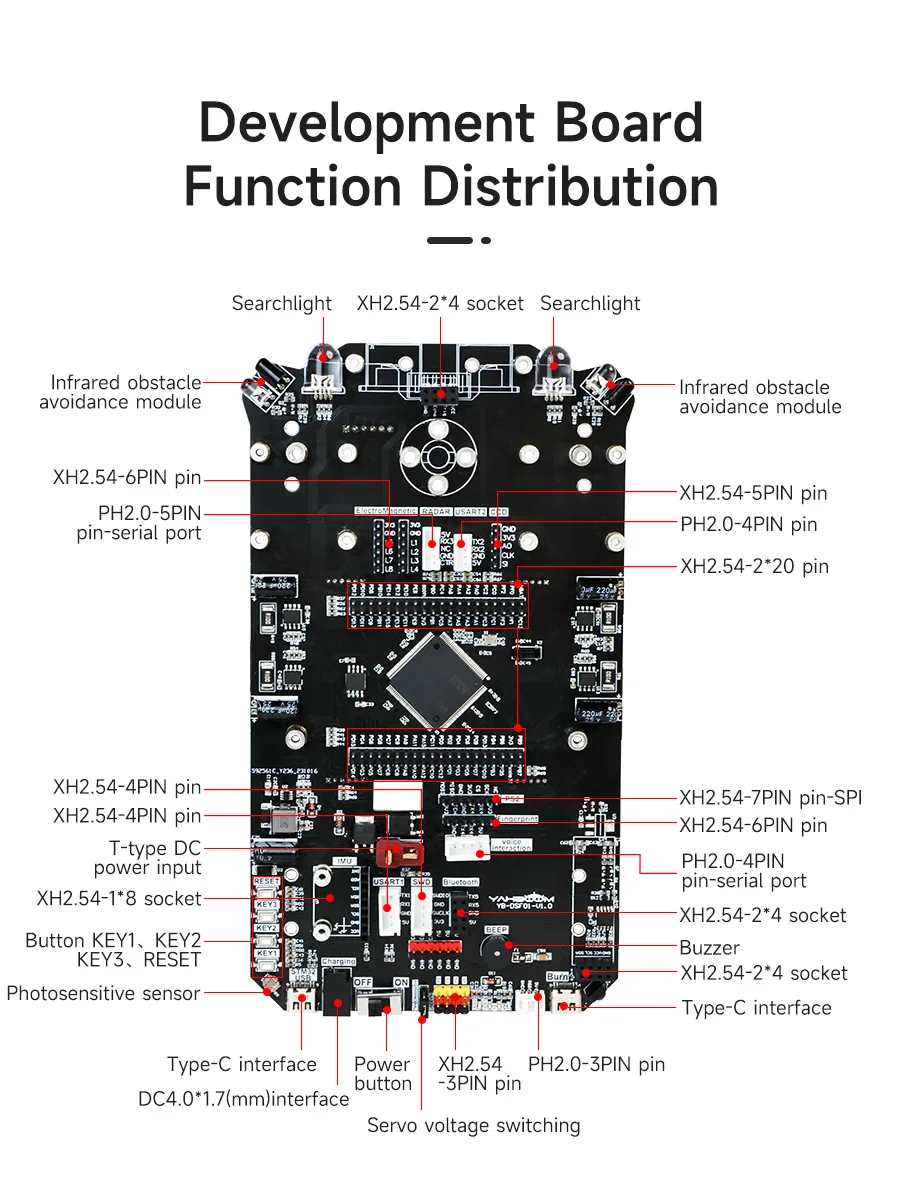

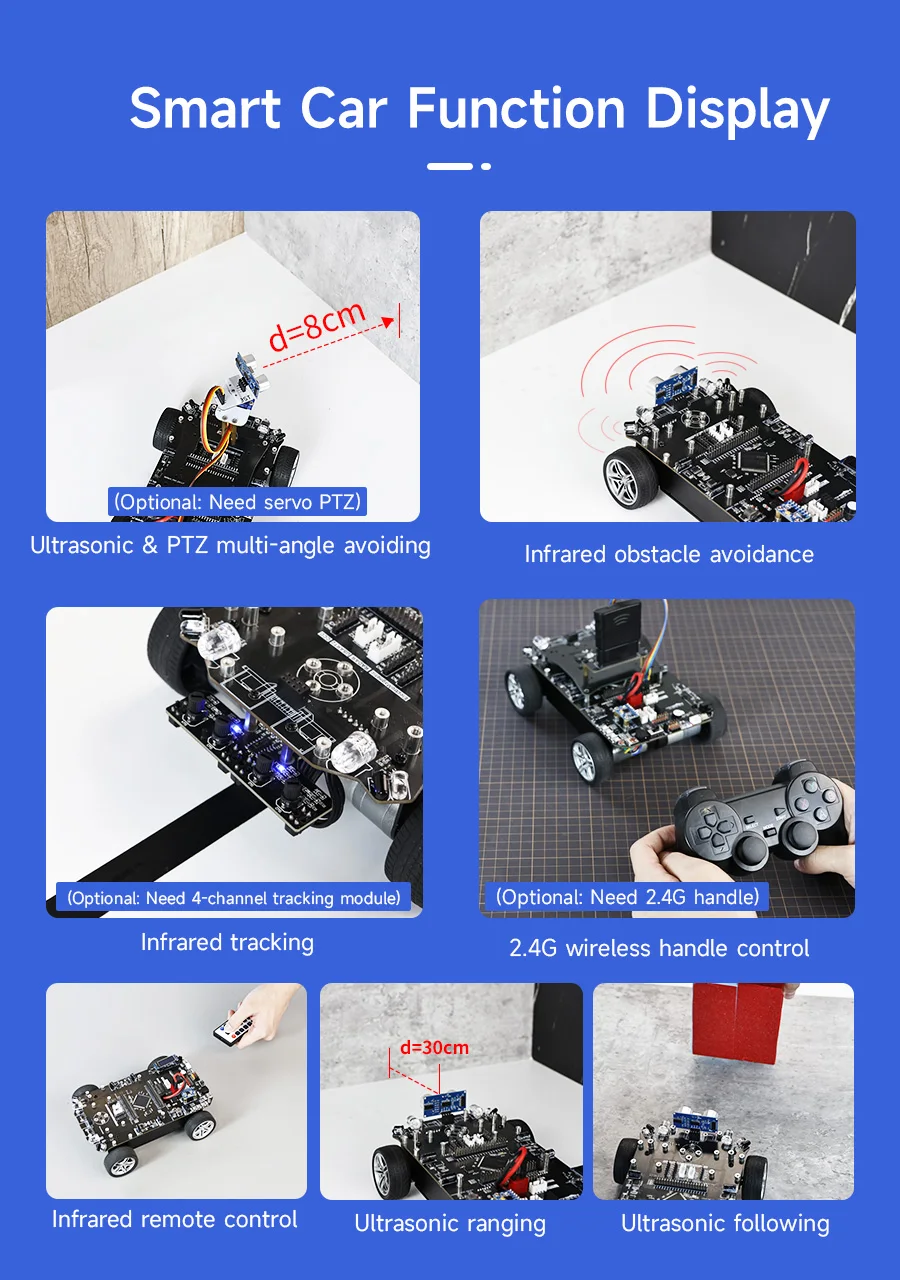

This development board designed based on STM32 MCU, and it integrates a variety of components and sensors, with STM32F103ZET67 as the core chip. It brings together various components such as buzzers, infrared sensors, photosensitive sensors, RGB searchlights, independent buttons, etc., . If you combined it with tires, motors and ultrasonic modules, it can be assembled into a 4WD smart car. Through C language programming, multiple functions such as autonomous obstacle avoidance, infrared following, and remote control can be realized. We have also designed a wealth of interfaces(XH2.5, PH2.0, UART, SPI, etc.) on this STM32 board , providing developers with the possibility of custom expansion and function enhancement. This makes it an ideal platform for learning embedded system development and robot car.

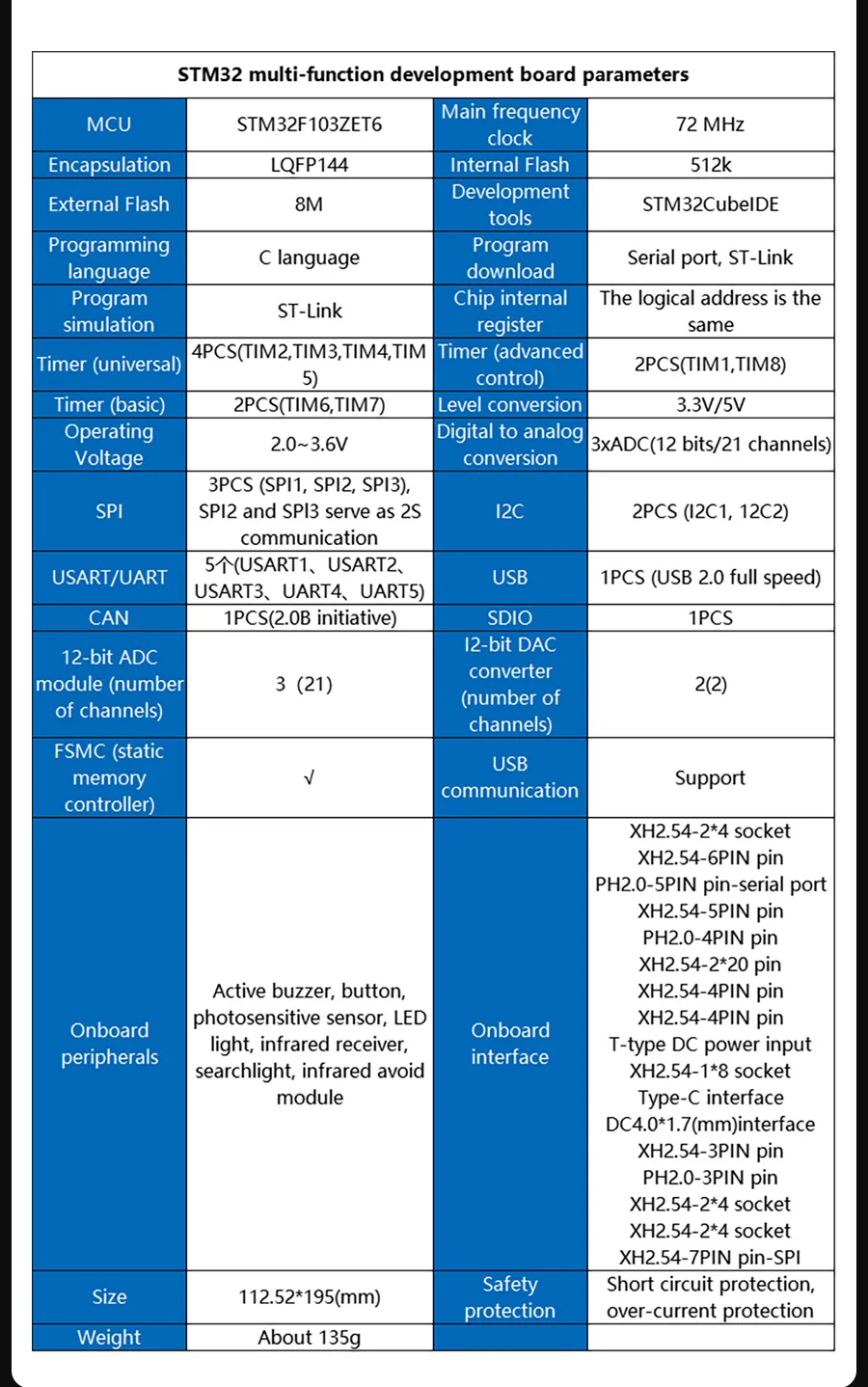

1.Onboard STM32F103ZET6 chip, with ARM Cortex-M3 core, 512KB Flash memory, 64KB RAM, maximum operating frequency up to 72MHz, andmany peripherals (Timers, GPIO, ADC, SPI/I2C/USART, etc. )

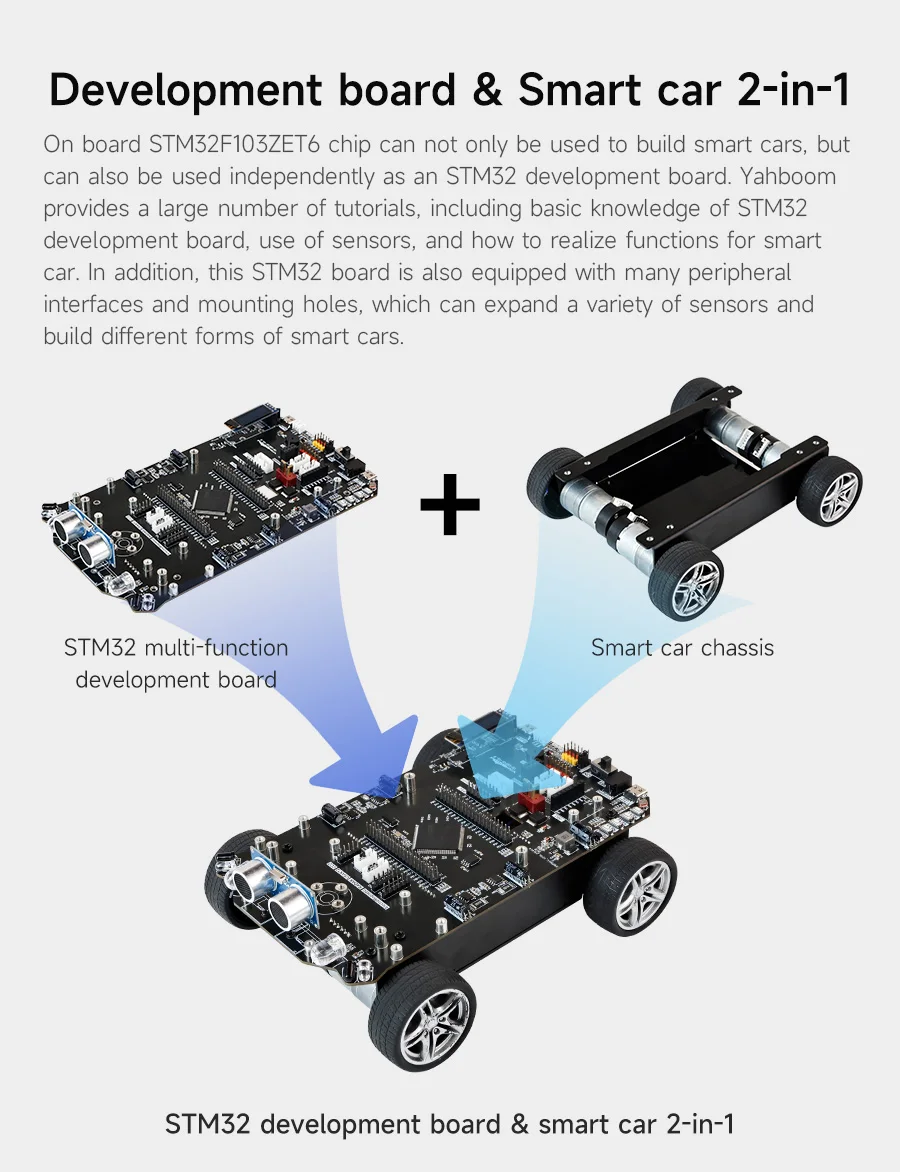

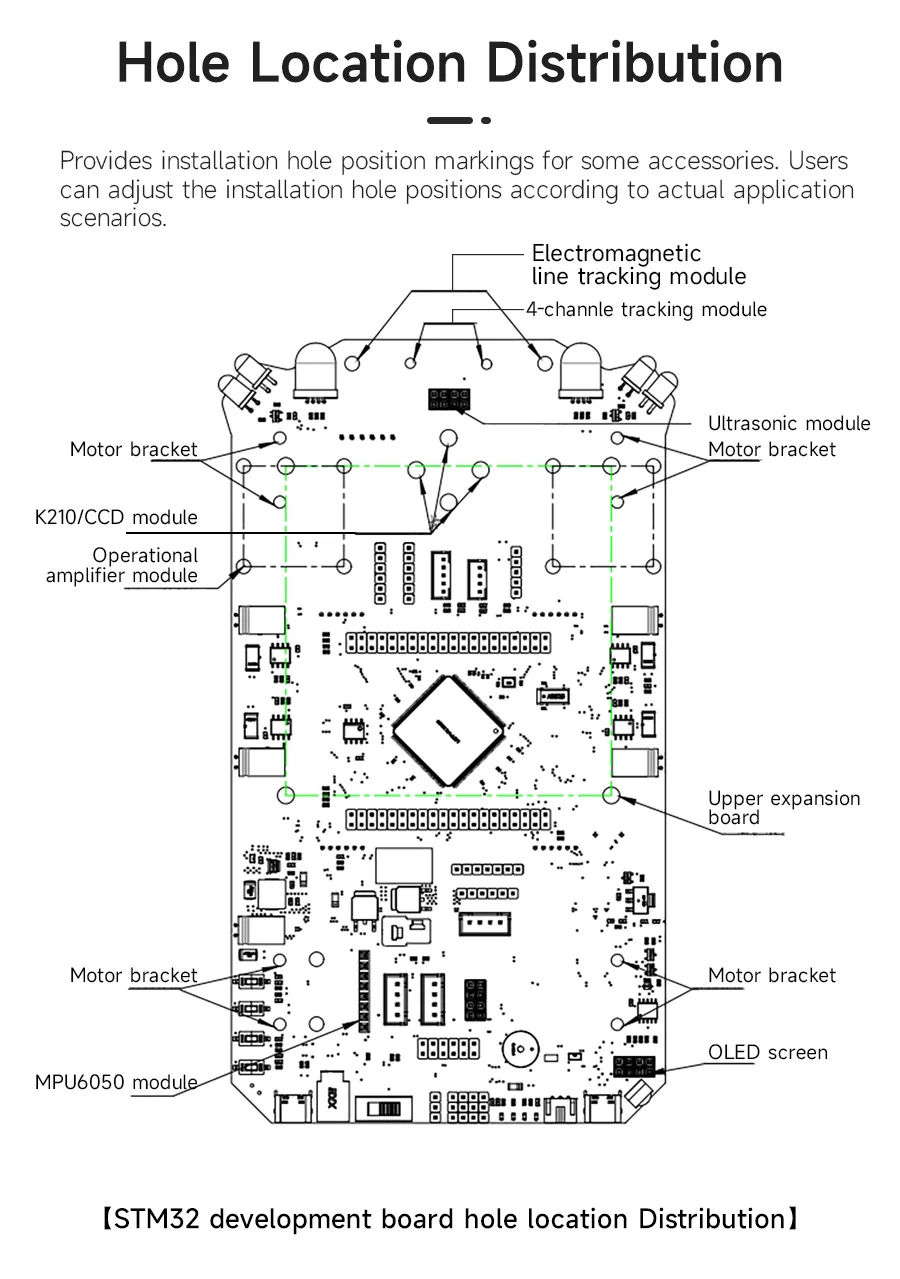

2.The STM32 development board independently designed by Yahboom is used as the car chassis, providing a large number of interfaces for sensors and control modules for user expansion.

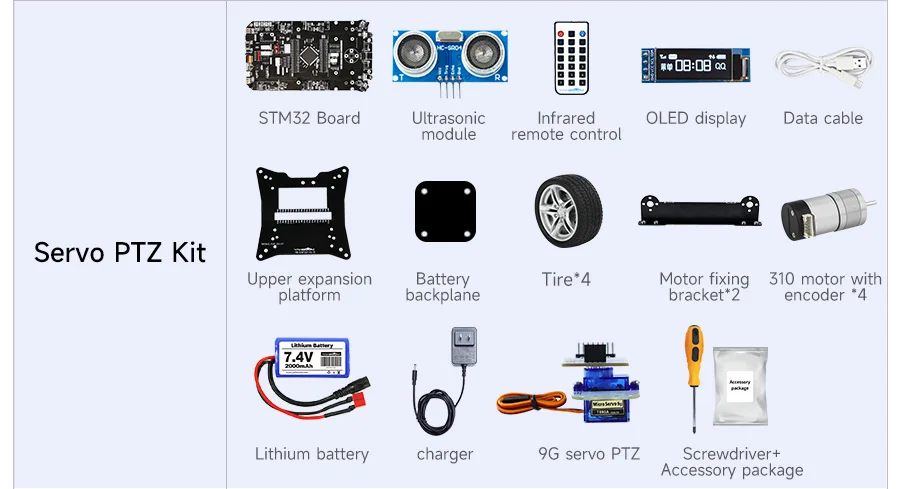

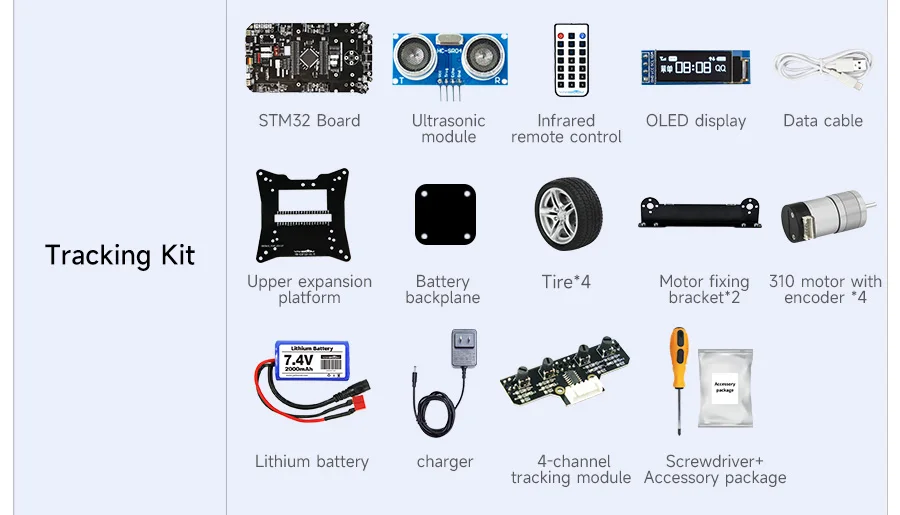

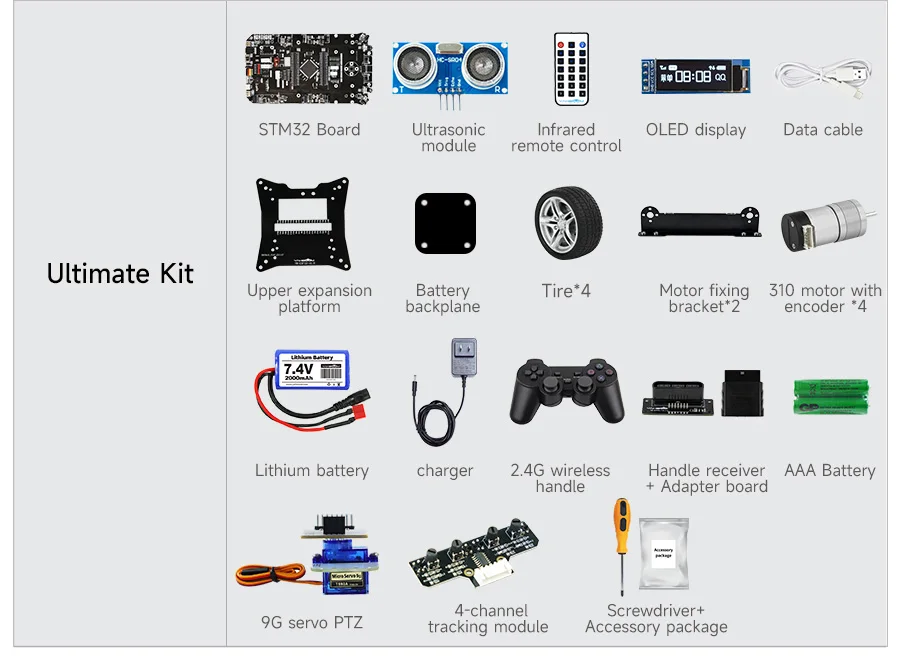

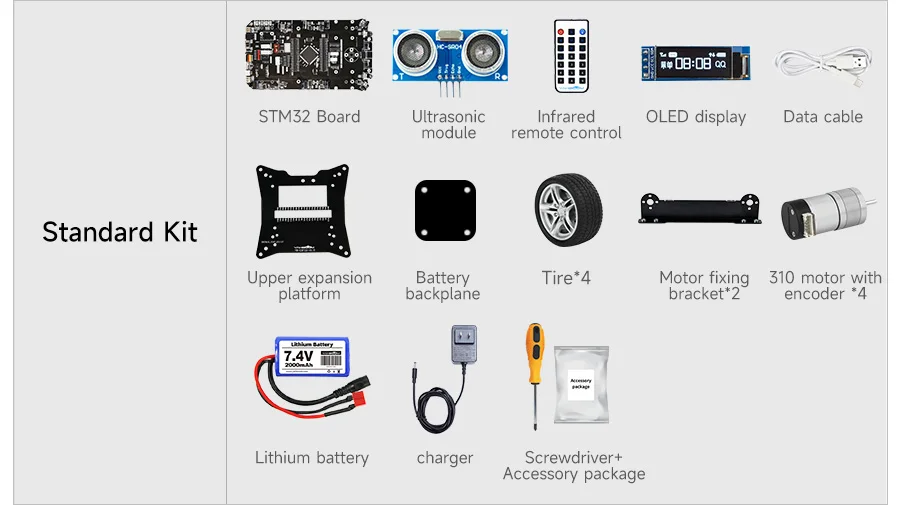

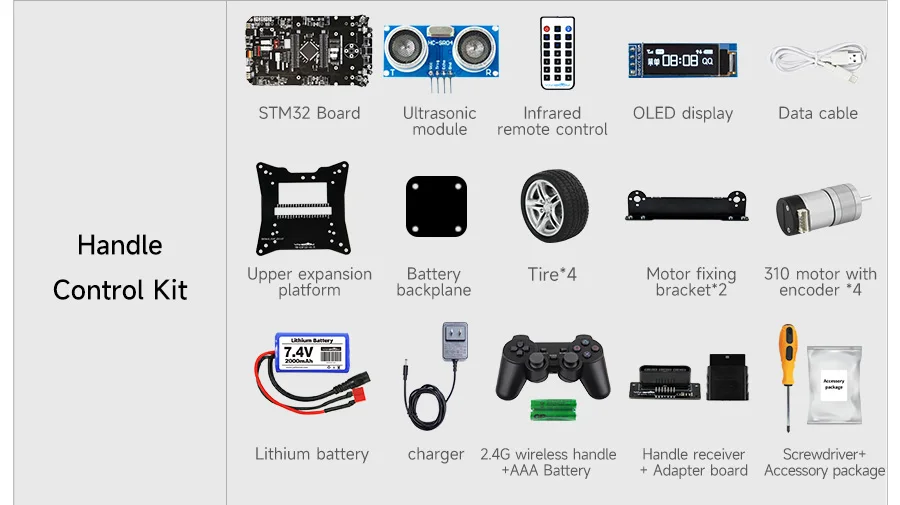

3.Smart cars have a variety of configurations for choice, andinclude large-capacity lithium batteries, 310 motors with encoder, OLED displays, infrared controller.

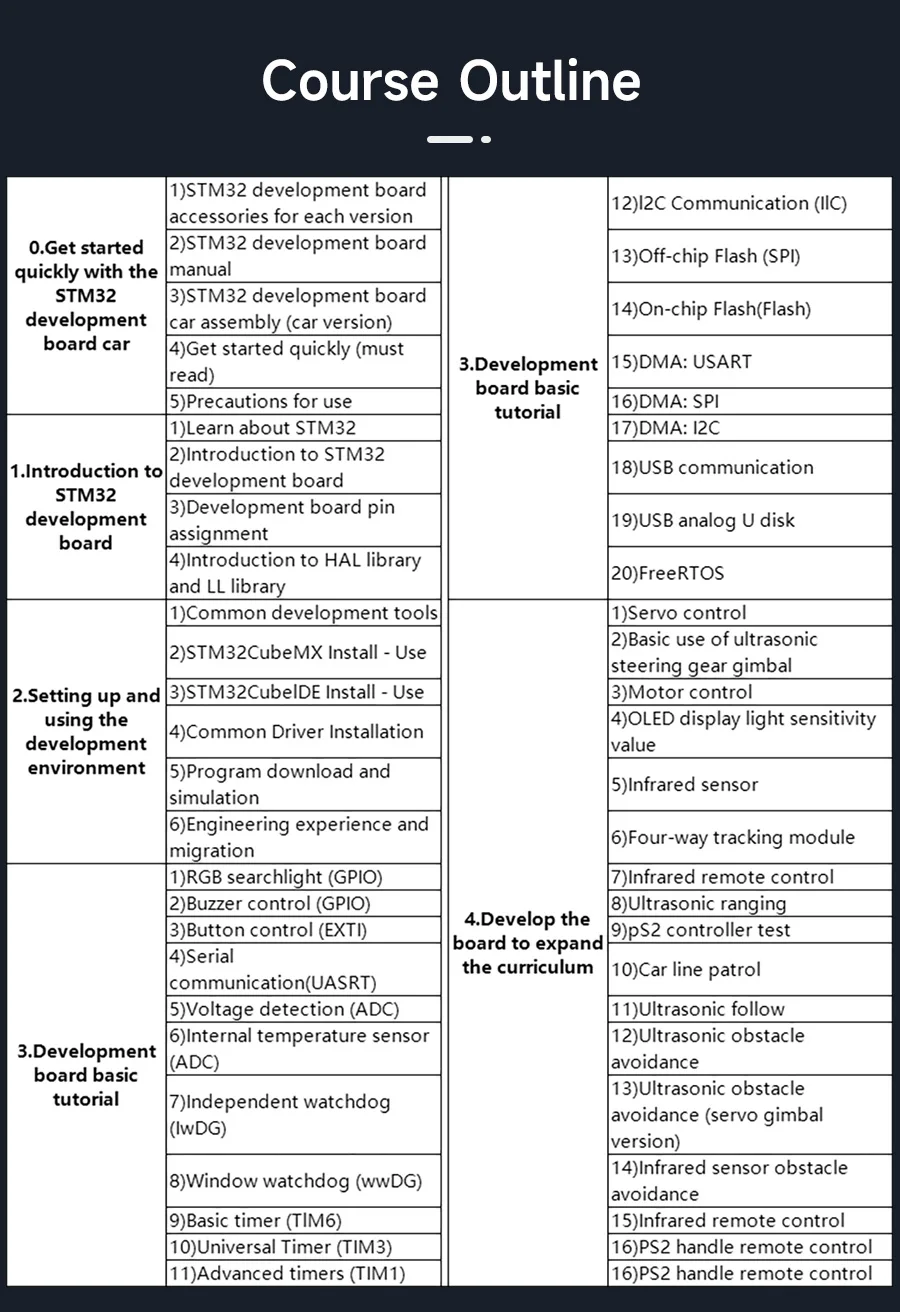

4.Provide details materials, such as sample codes, circuit diagrams, tutorials, , both beginners and experienced developers can learn, practice and create on this platform.
