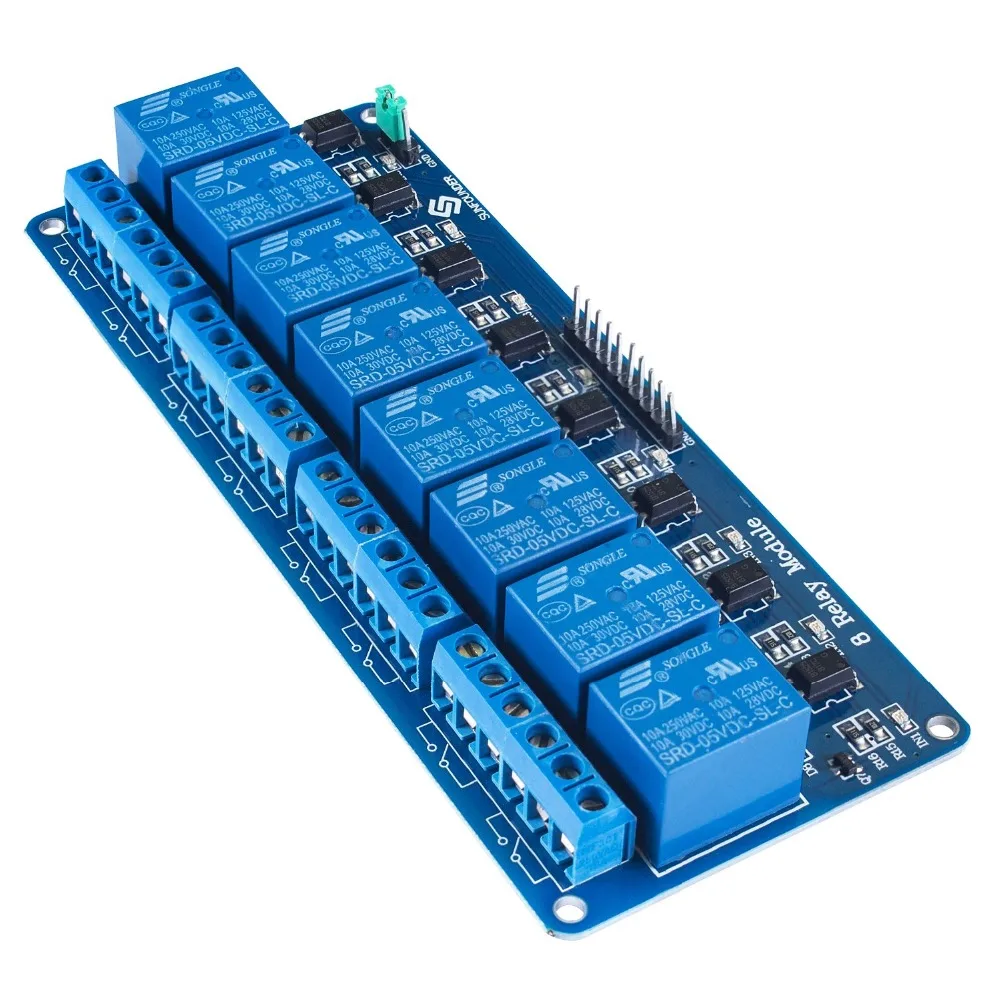

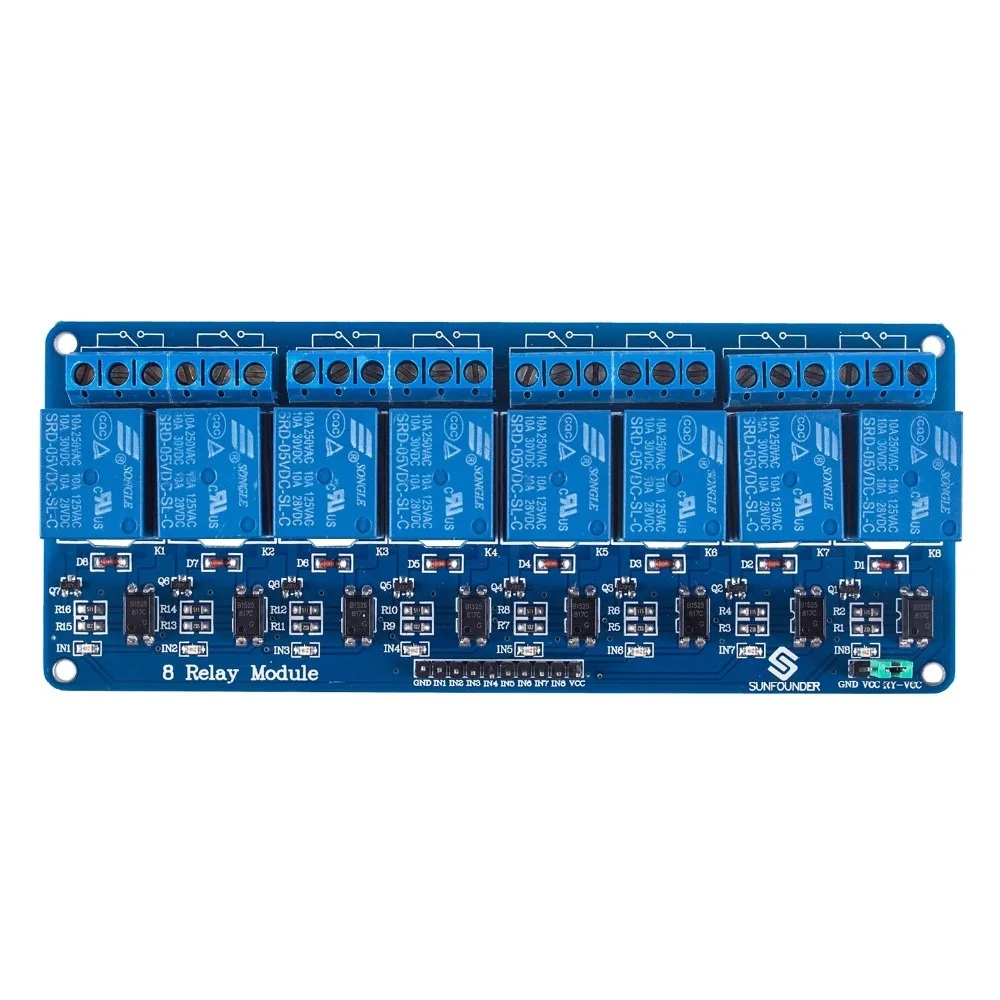

• 5V 8-Channel Relay interface board, and each one needs 15-20mA Driver Current

• Equiped with high-current relay, AC250V 10A ; DC30V 10A

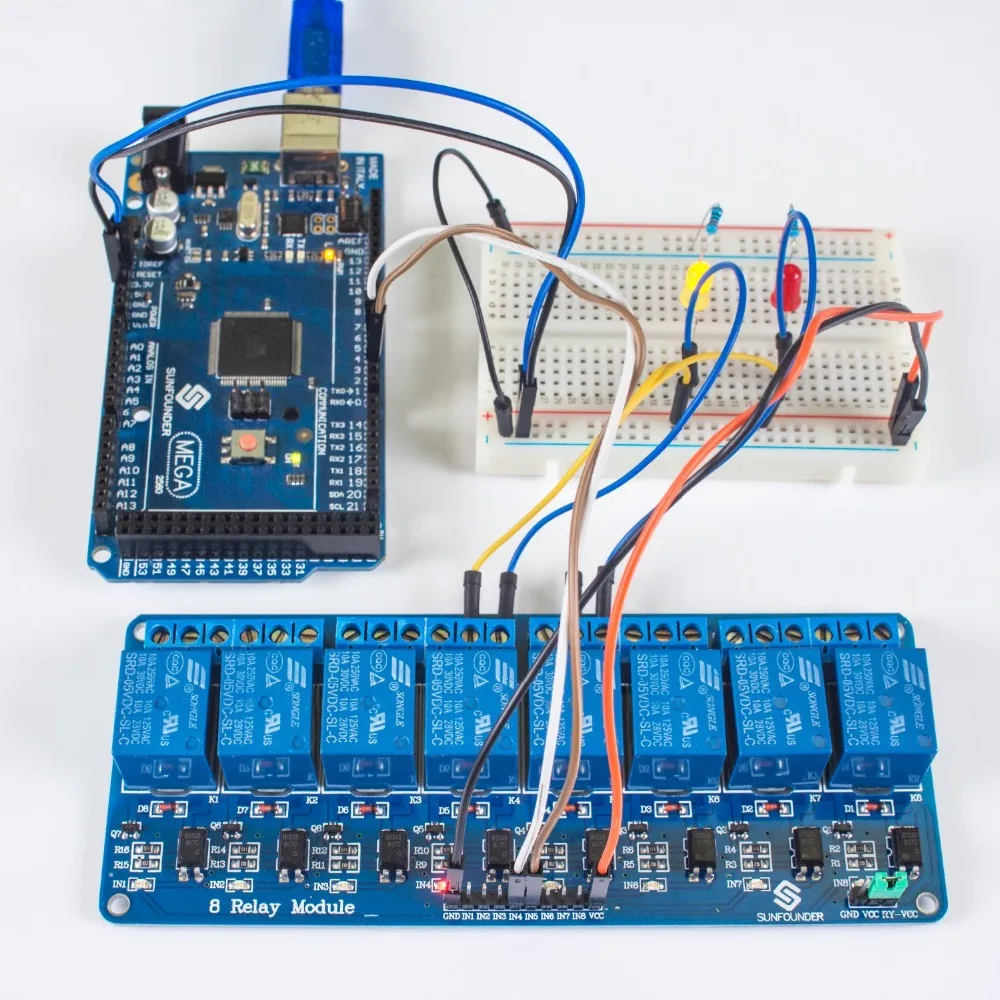

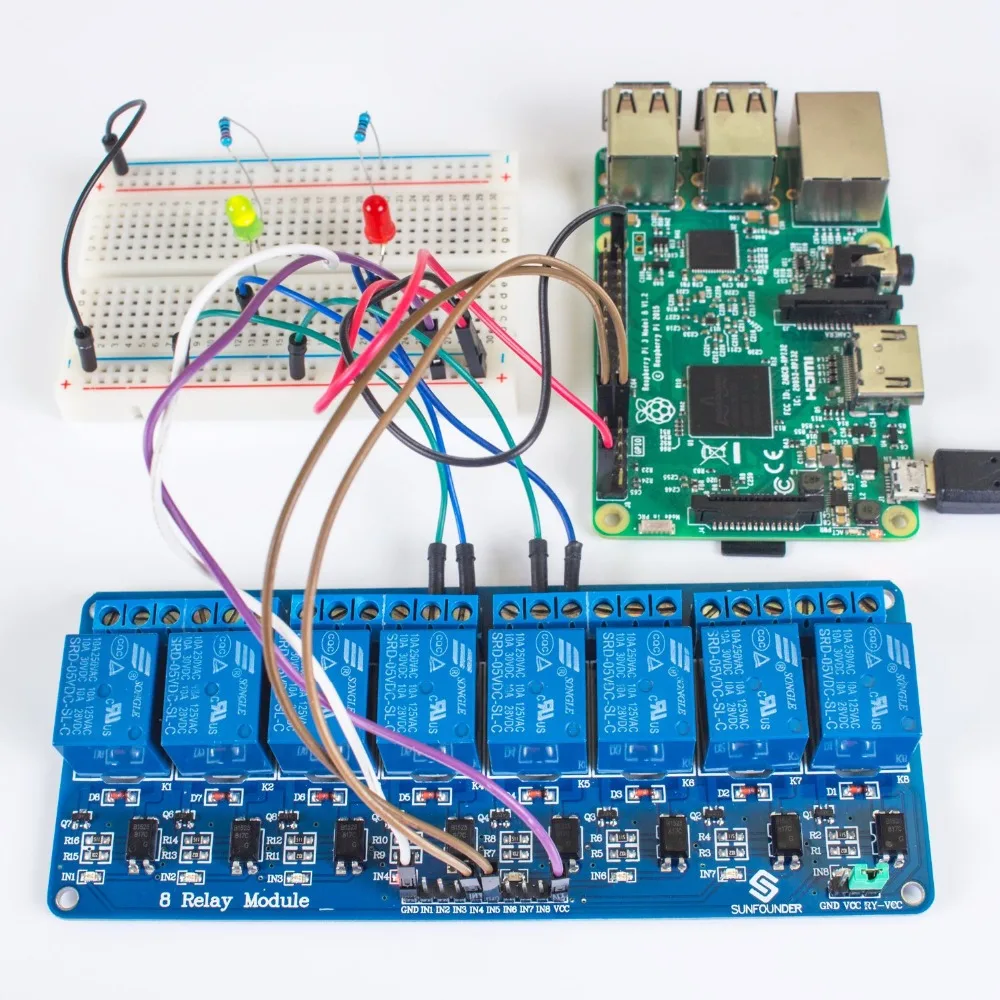

• Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)

• Indication LED’s for Relay output status

• Size:14cm x 5.7cm x 1.7cm (5.51inch x2.24inch x 0.67inch)

Sunfounder8 Channel DC 5V Relay Module with Optocoupler

• Simple relay magnetic circuit to meet low cost of mass production.

• Switching capacity available by 10A in spite of small size design for highdensity P.C. board mounting technique.

• UL,CUL,TUV recognized.

• Selection of plastic material for high temperature and better chemical solution performance.

• Sealed types available.

Perfect used for domestic appliance, office machine, audio, equipment, automobile, etc. （Remote control TV receiver, monitor display, audio equipment high rushing current use application）

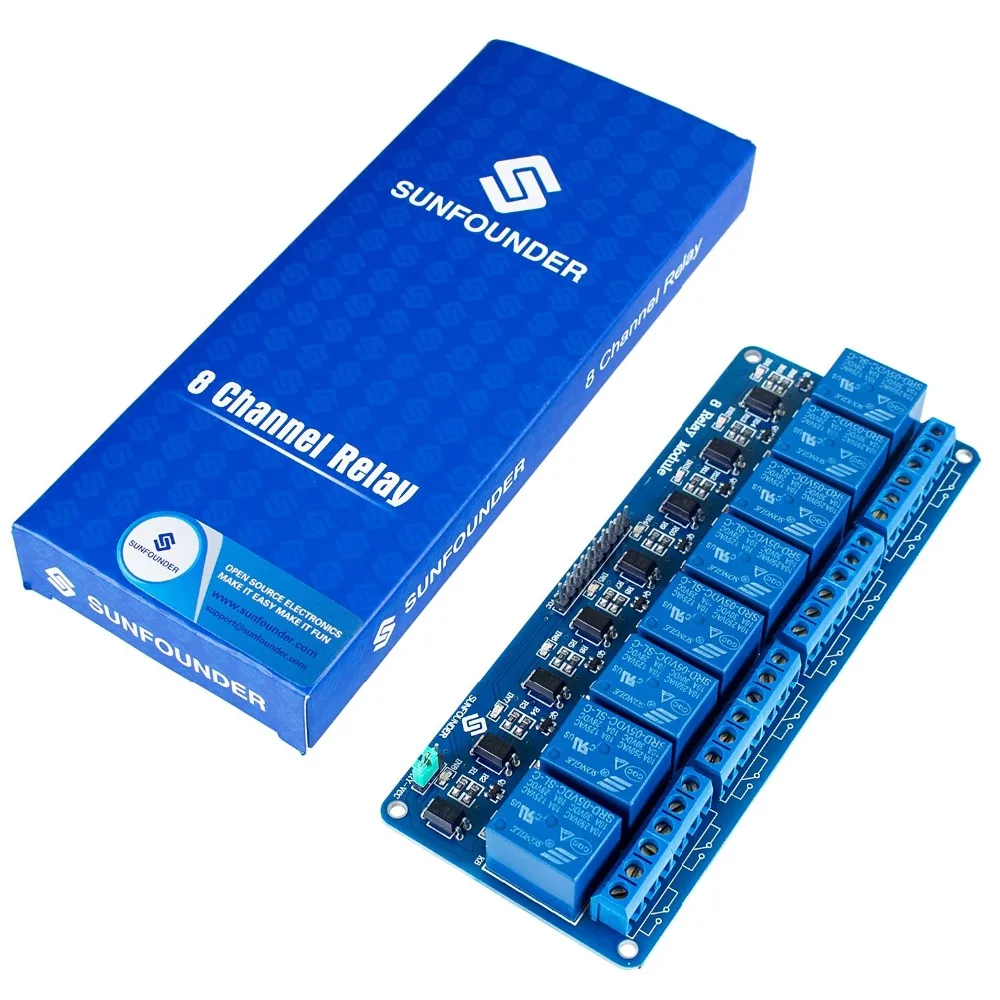

1 x 8-Channel Relay Module
