1.Easy to use. Less I/O ports are occupied, only four – VCC, GND, SDA (serial data line), SCL (serial clock line).

2.Support IIC protocol. The I2C LCD1602 library is provided, so you can call it directly.

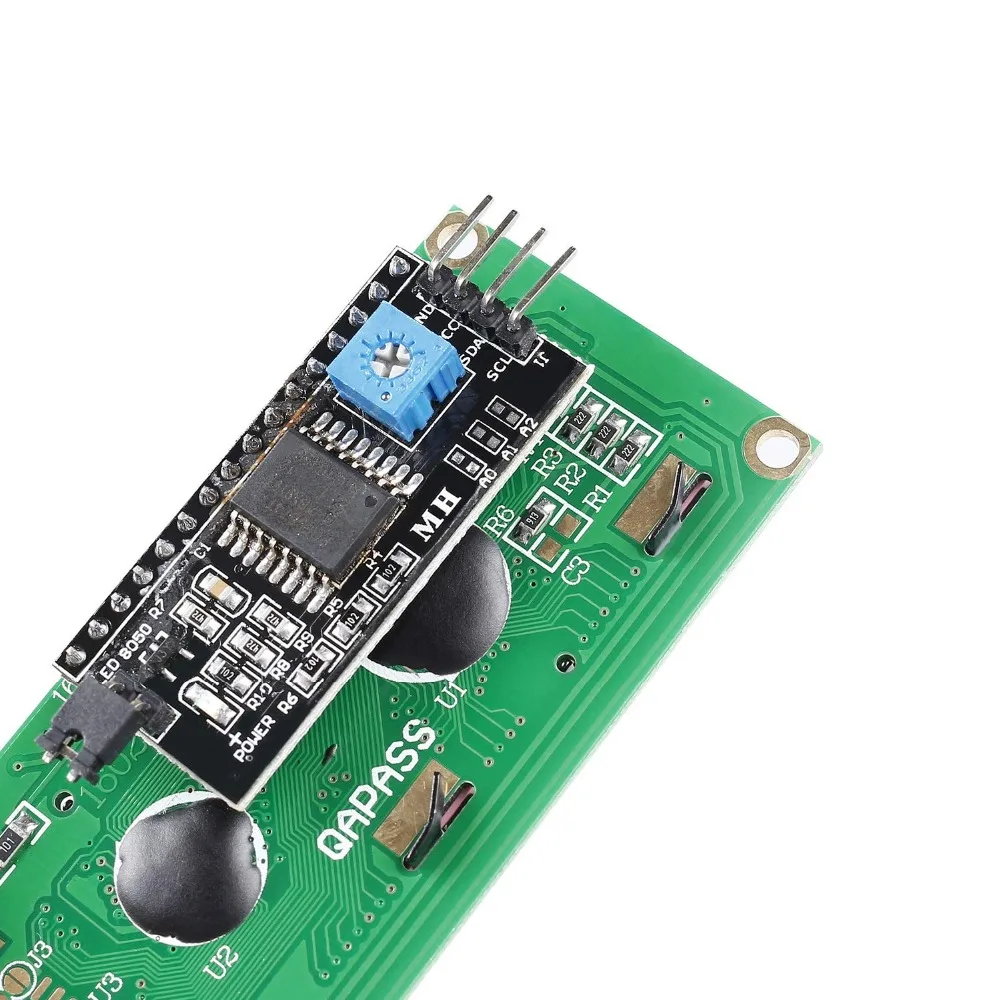

3.With a potentiometer used to adjust backlight and contrast.

4.Power supply: +5V;

5.Address of the module: ox27

Introduction
As we all know, though LCD and some other displays greatly enrich the man-machine interaction, they share a common weakness. When they are connected to a controller, multiple IOs will be occupied of the controller which has no so many outer ports. Also it restricts other functions of the controller. Therefore, LCD1602 with an I2C port is developed to solve the problem. It is also simple to handle. It has only two bidirectional data lines, a serial data line and a serial clock one.

How to wire:GND—GND ; VCC—VCC ; SDA—A4;SCL—A5

Application
Used to display Characters, letters and Numbers.

Features:

Display: 4 lines x 20 characters

Backlight: Blue with white character color

LCD controller: HD44780

Pin Definition: VCC/ GND/SDL and SCA

Contrast Adjust: Potentiometer

Backlight Adjust: Jumper

Default Address: 0x27, 0x3F

Working Voltage: 5V

For More information refer to ://wiki.sunfounder.cc/index.php?title=I%C2%B2C_LCD1602

Component :
-1 * I2C LCD1602

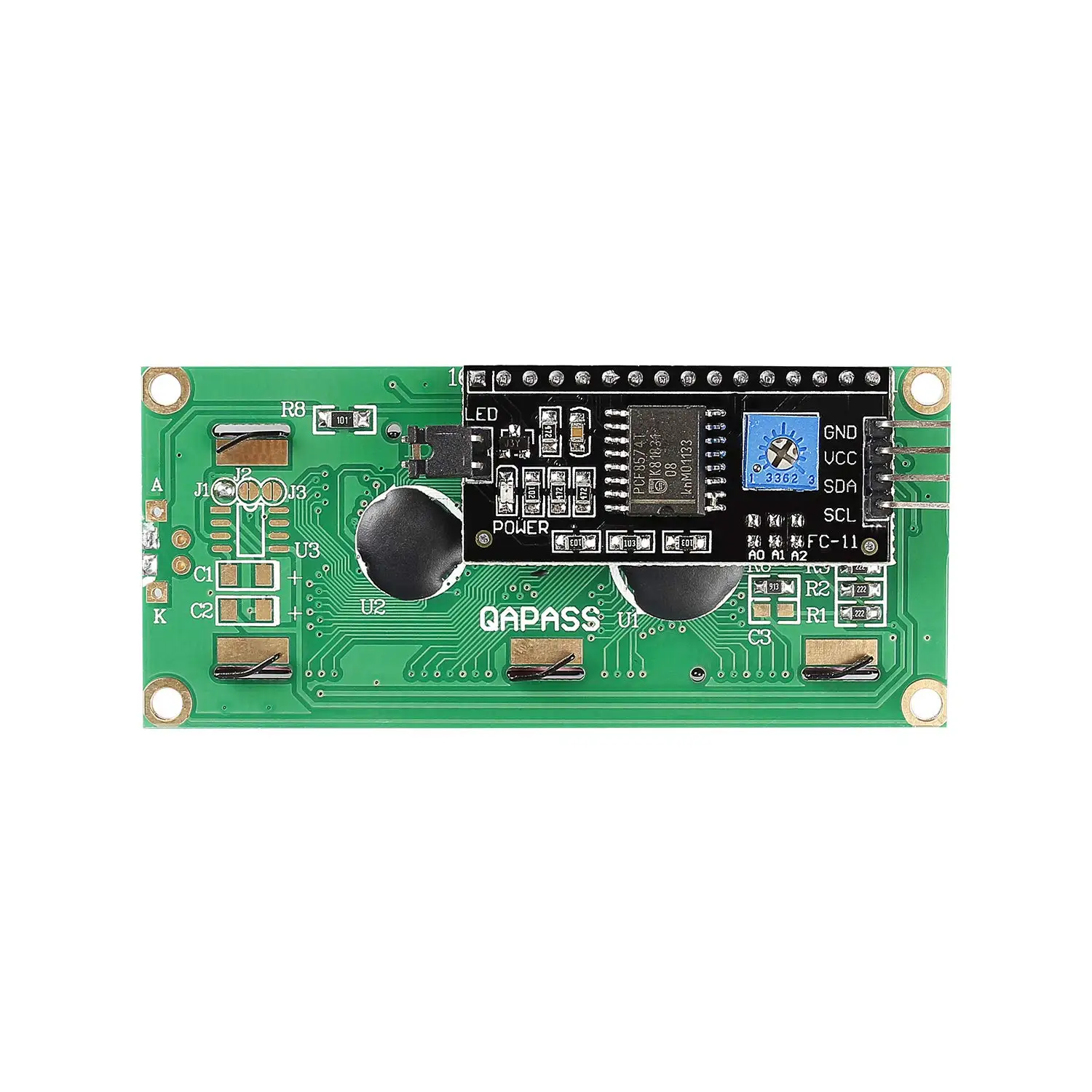

SunFounder IIC I2C TWI 1602 Serial LCD Module Display

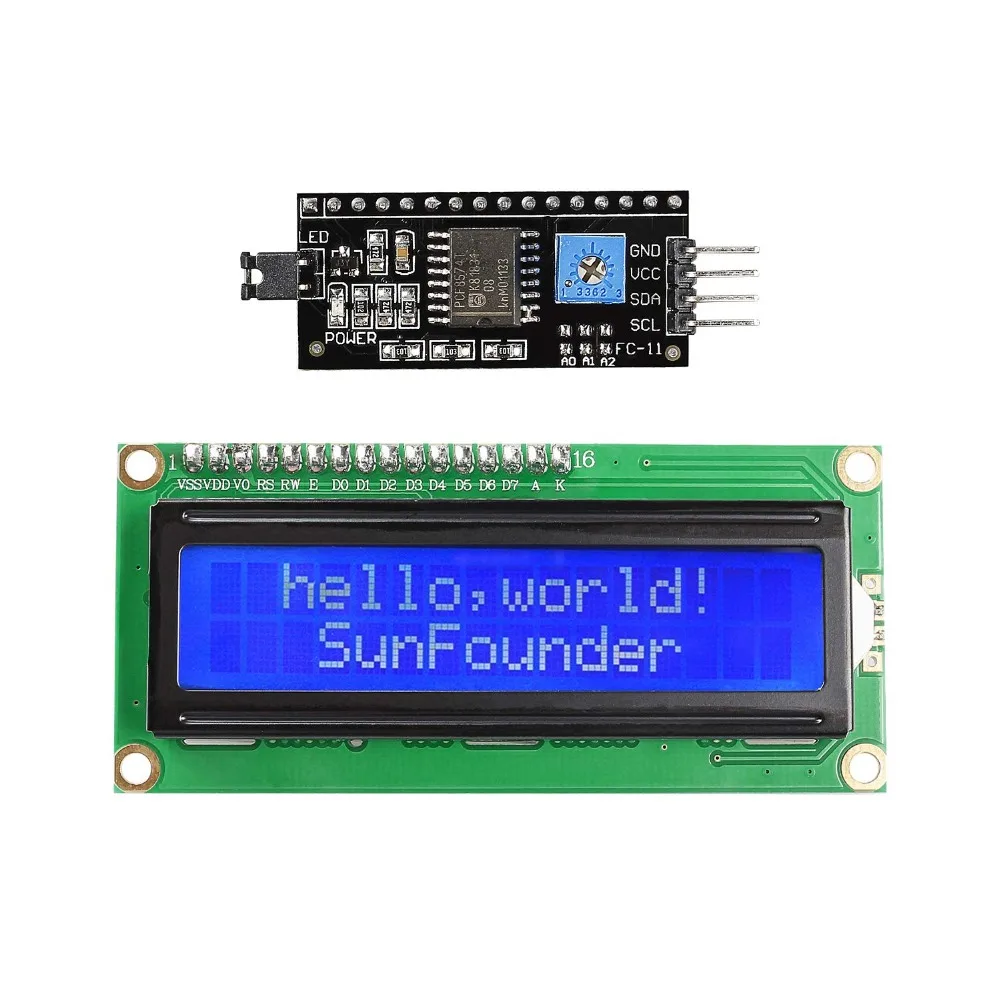

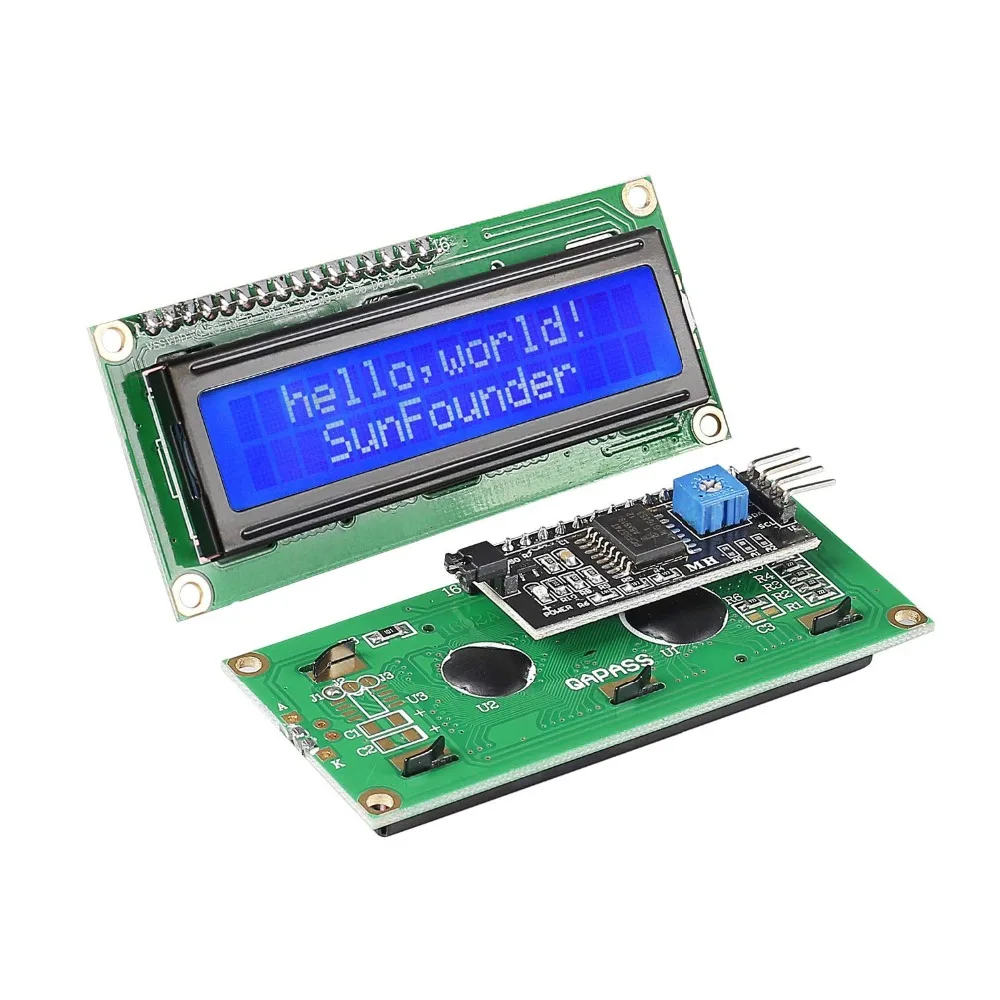

1 x 1602 lcd display with I2C serial interface

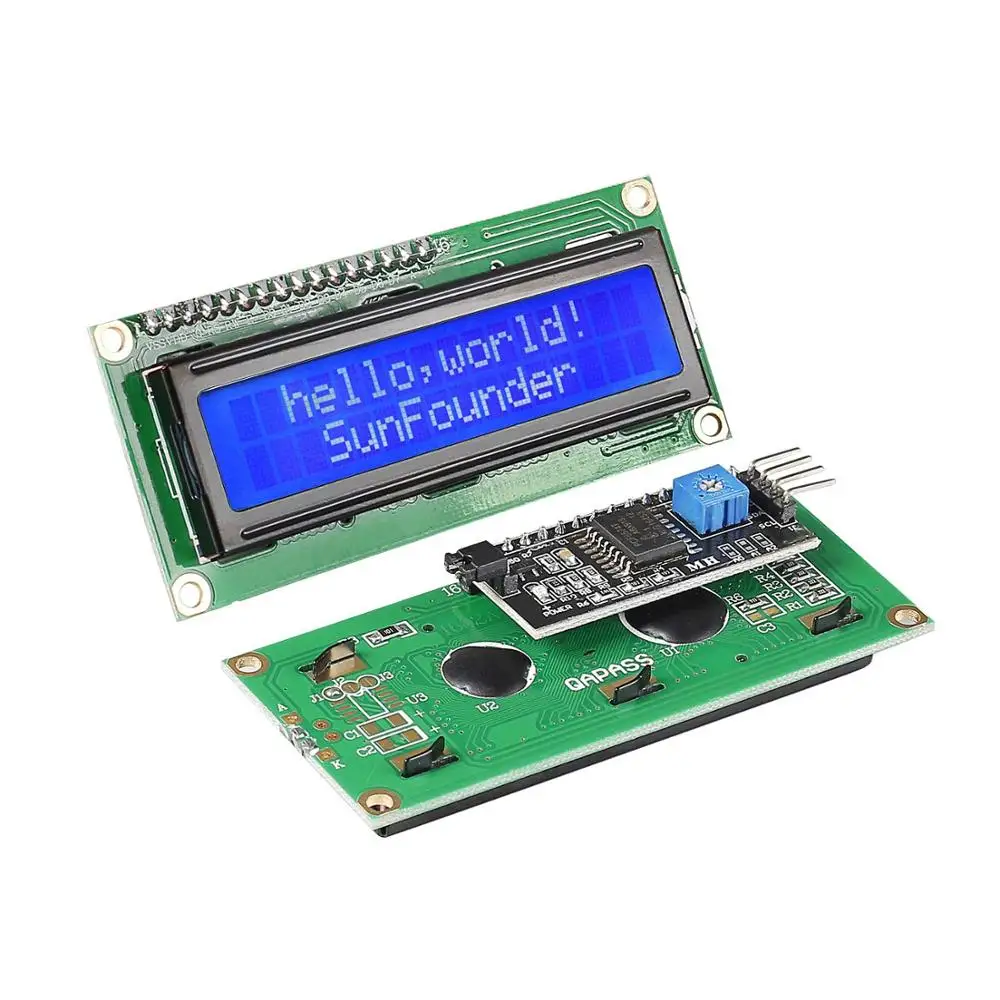

SunFounder IIC I2C TWI 1602 Serial LCD Module Display
