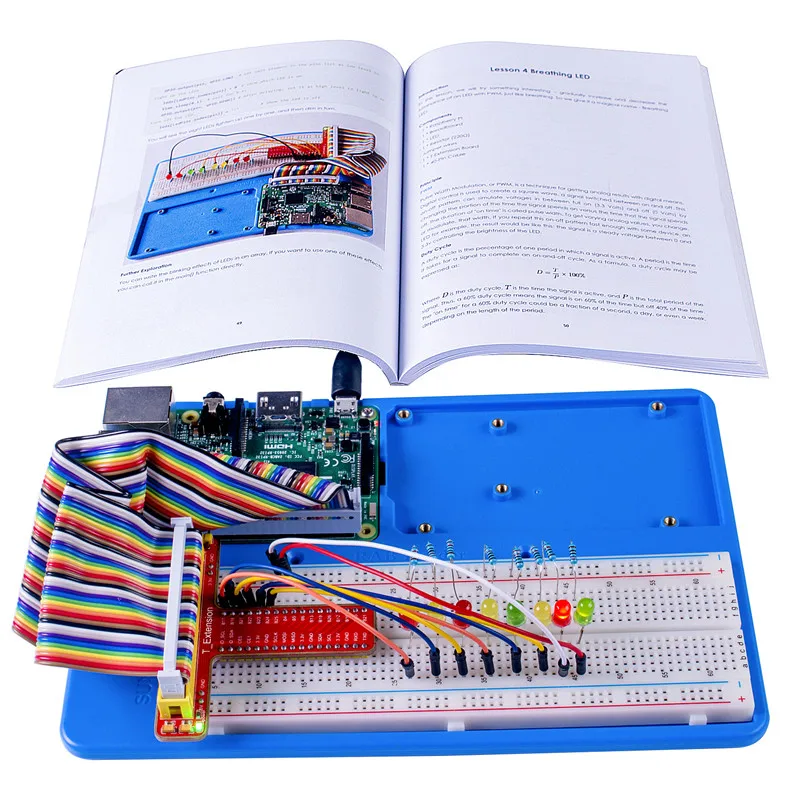

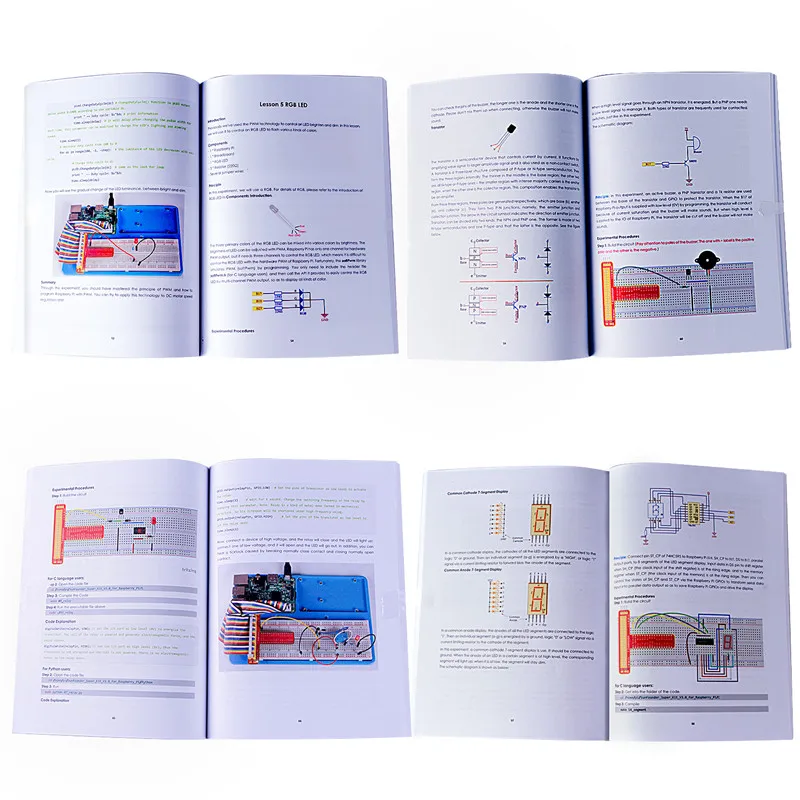

2.17 Projects provided – Detailed user manual provided includes 17 funny experiments with elaborate Fritzing images of wiring and physical experiment diagrams, thorough operational instructions and code explanations.

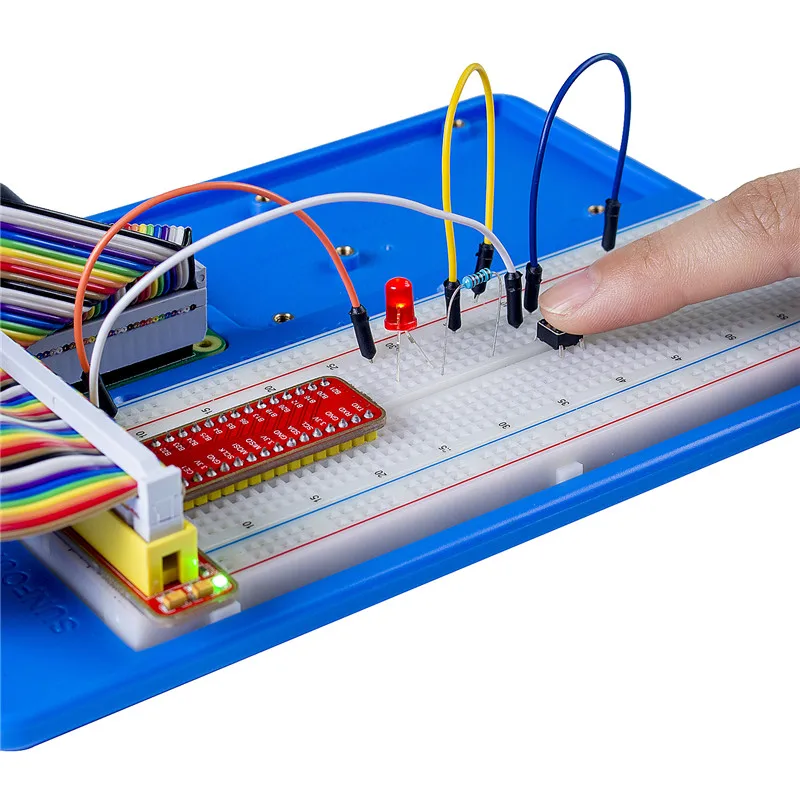

3.RAB Holder – large enough for a Raspberry Pi, an Arduino Uno (Mars) or Mega 2560(Mercury) and a breadboard, convenient for making projects.

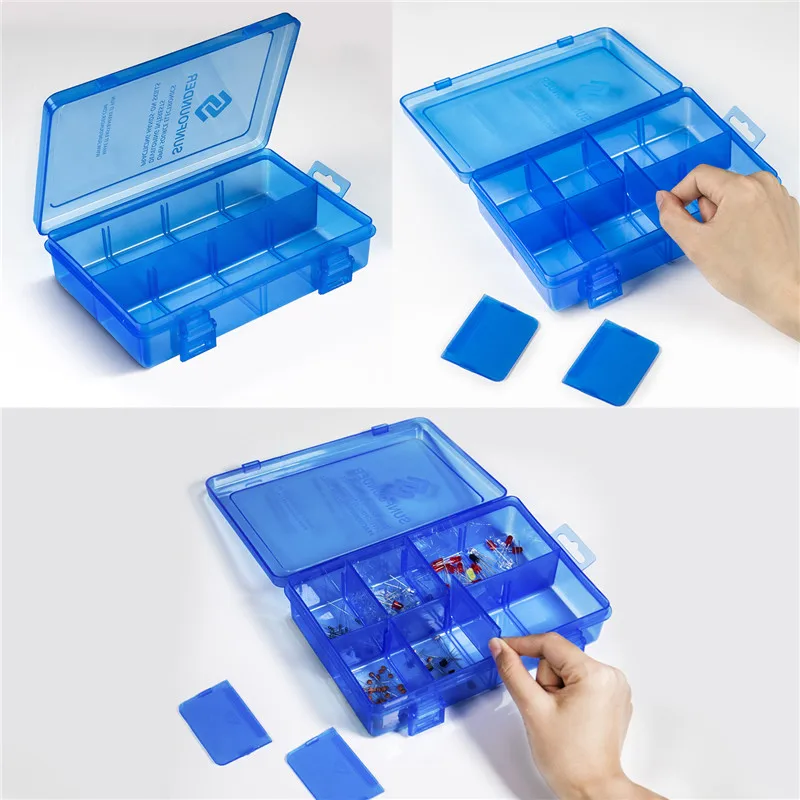

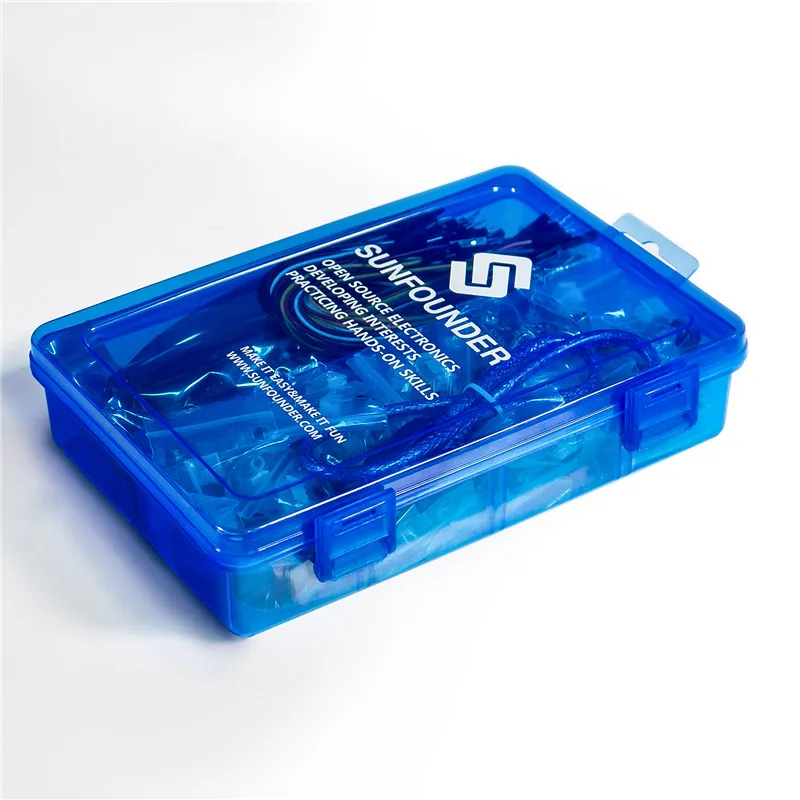

4.Stylish packaging – Comes with a delicate blue packing box, inside which can be divided into 8 grids to store different components.

5.T-Extension Board & 40-Pin GPIO Cable with pin name marked for convenient wiring in experiments; Raspberry Pi NOT included.

Introduction

This is a magical tool kit with various components inside for learning,which will lead you to the world of Raspberry Pi quickly. It includes 17 lessons,each containing the circuit connection,principles,fritzing images and code explanations for you to learn Raspberry Pi from scratch.In addition, detailed introduction of the components is included in the manual and you can try extension experiments by yourself after studying this kit.

Note: For the experiment in Lesson 11 How to Drive a DC Motor, please prepare another 9V power adapter or a 9V battery with the buckle included in the kit to power the Power Module.

17 Projects for Beginners

Lesson 1 Blinking LED

Lesson 2 Controlling an LED by a Button

Lesson 3 Flowing LED Lights

Lesson 4 Breathing LED

Lesson 5 RGB LED

Lesson 6 Buzzer

Lesson 7 Relay

Lesson 8 4N35

Lesson 9 Ne555

Lesson 10 Slide Switch

Lesson 11 How to Drive a DC Motor

Lesson 12 Rotary Encoder

Lesson 13 Driving LEDs by 74HC595

Lesson 14 Driving 7-Segment Display by 74HC595

Lesson 15 Driving Dot-Matrix by 74HC595

Lesson 16 LCD1602

Lesson 17 ADXL345

Learning materials://www.sunfounder.com/learn/category/Super_Kit_V3_0_for_Raspberry_Pi.html

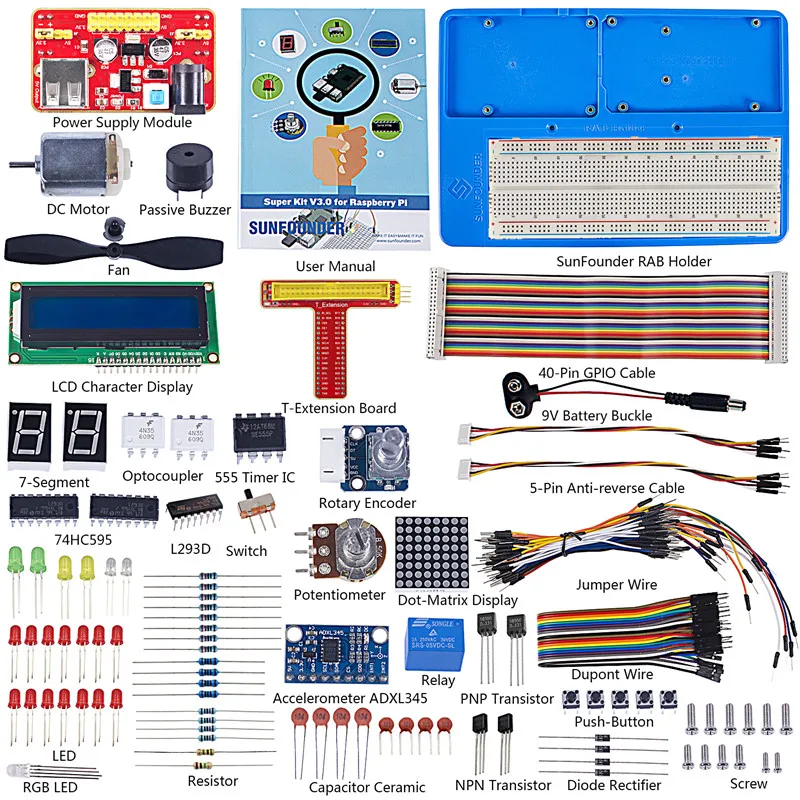

Package List

1 x Project Box

1 x T-Extension Board

1 x 40-Pin GPIO Cable

1 x User Manual

1 x 555 Timer IC

2 x Optocoupler (4N35)

2 x Shift Register (74HC595)

1 x L293D

1 x Accelerometer ADXL345

1 x Rotary Encoder

5 x Button

1 Set x Resistor (220Ω, 1kΩ, 10kΩ, 1MΩ, 5.1MΩ)

4 x Diode Rectifier

1 x Switch

1 x Potentiometer (50k)

1 x Power Supply Module

1 x LCD1602

1 x Dot Matrix Display (8*8)

2 x 7-Segment Display

1 x DC Motor

1 Set x LED (Red, White, Green, Yellow)

4 x NPN Transistor (PNP/NPN)

8 x Capacitor Ceramic (100nF/10nF)

1 x Breadboard

1 x Active Buzzer

1 x Relay

1 x Fan

65 x Male-to-Male Jumper Wire

20 x Female-to-Male Dupont Wire

2 x 5-Pin Anti-reverse Cable

1 x 9V Battery Buckle

1 Set x Screw

1 x RAB Holder
