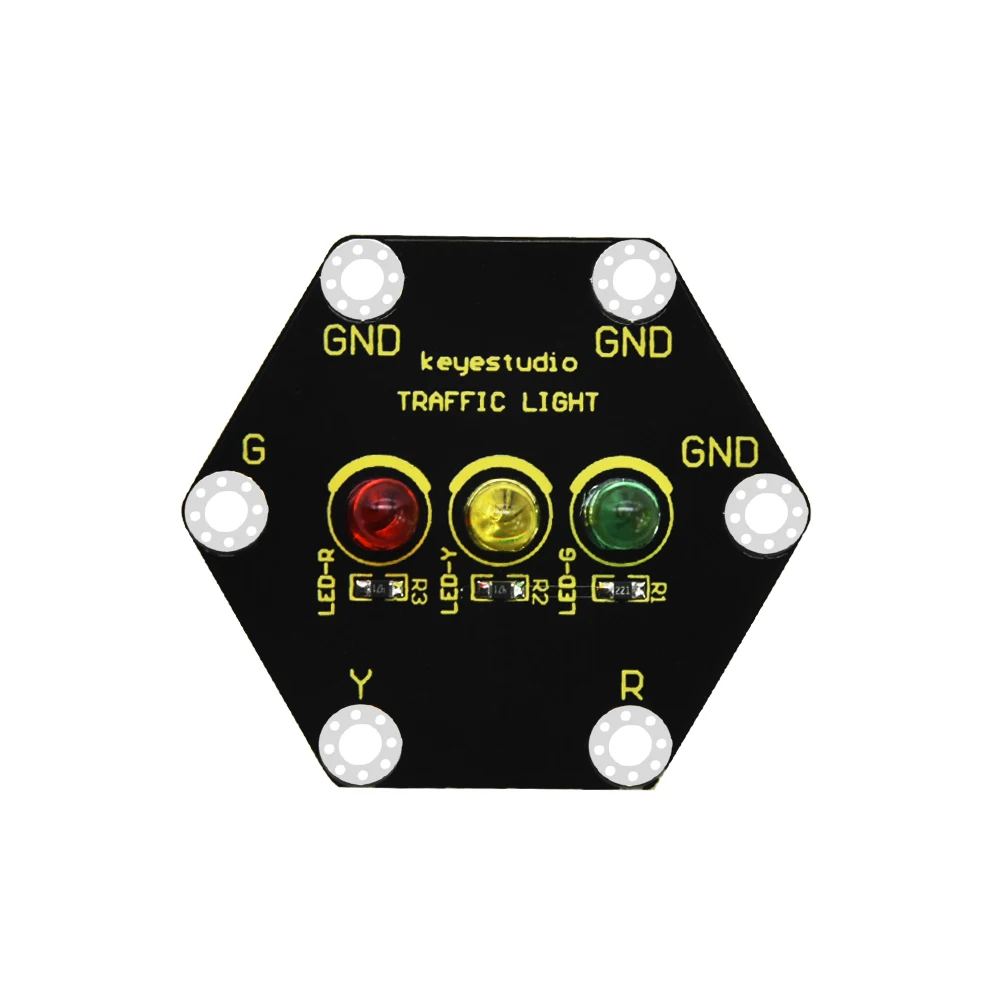

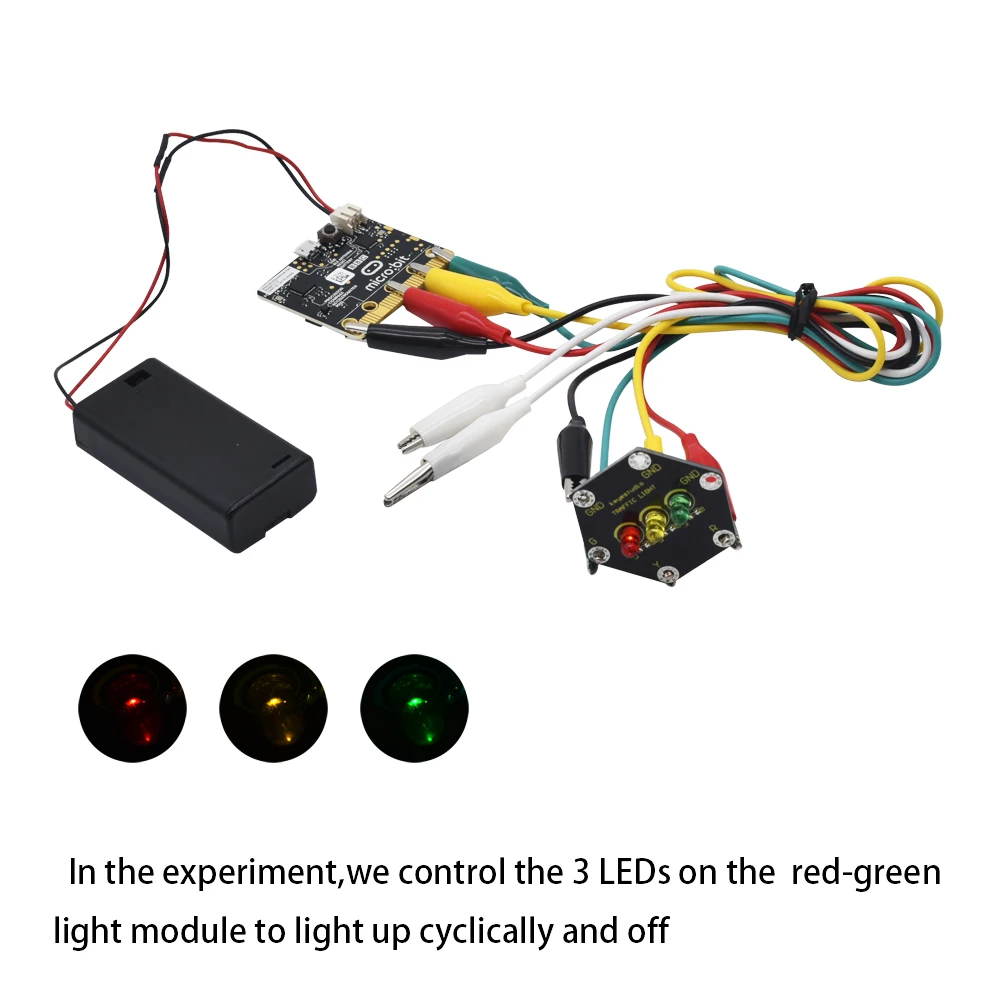

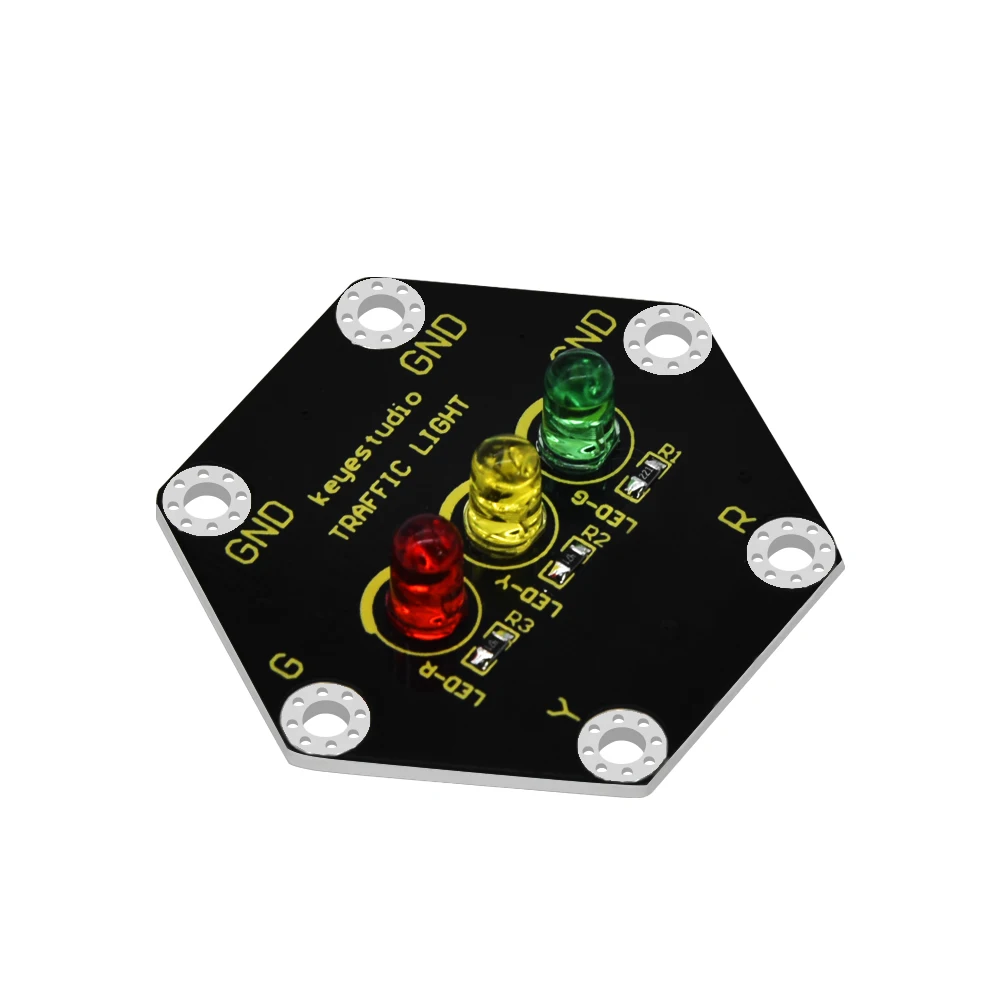

micro bit Honeycomb traffic light module is fully compatible with the micro bit control board. In the experiment, we connect this module to the micro:bit control board using crocodile clip wire. There are 6 ports on the module, 3 GND ports are connected. The module comes with red, yellow and green 3 LED lights, we can control the 3 LEDs on and off on the module , and simulate the roadside traffic lights flashing.
Parameters
- Working voltage: DC 3.0-3.3V
- Control port: digital port

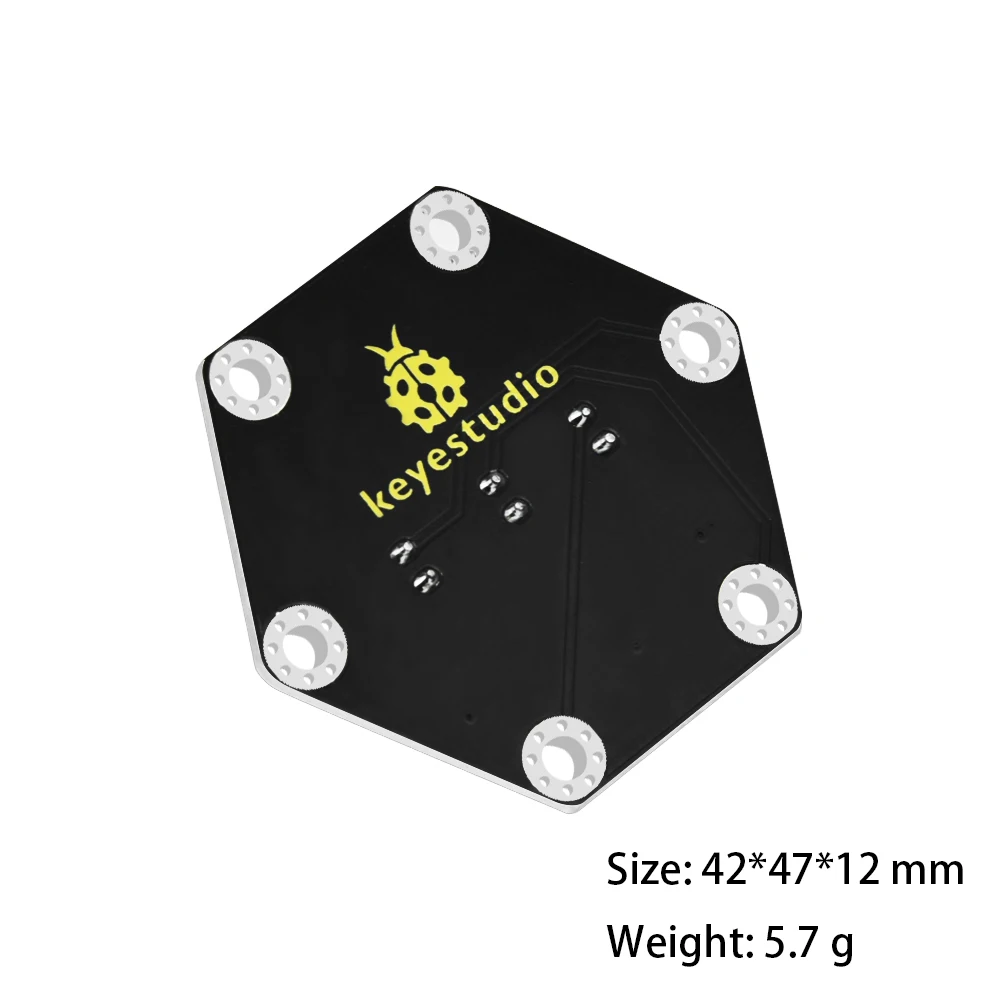

- Size: 42mm*47mm*12mm
- Weight: 5.7g
- Environmental attributes: ROHS
