Introduction

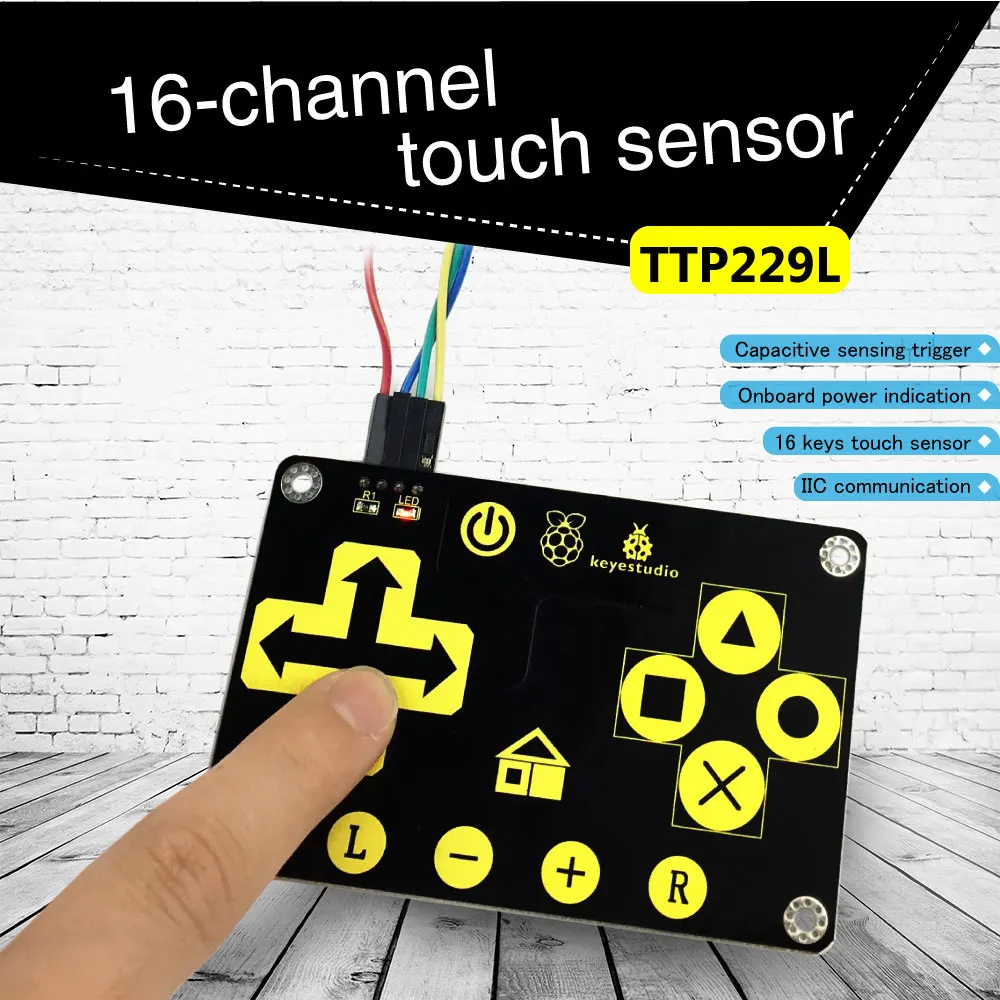

This is a 16-key digital capacitive touch switch sensor, using the working mode of capacitive sensing trigger. Its communication is I2C communication, with simple and convenient wiring.
Performance Parameters

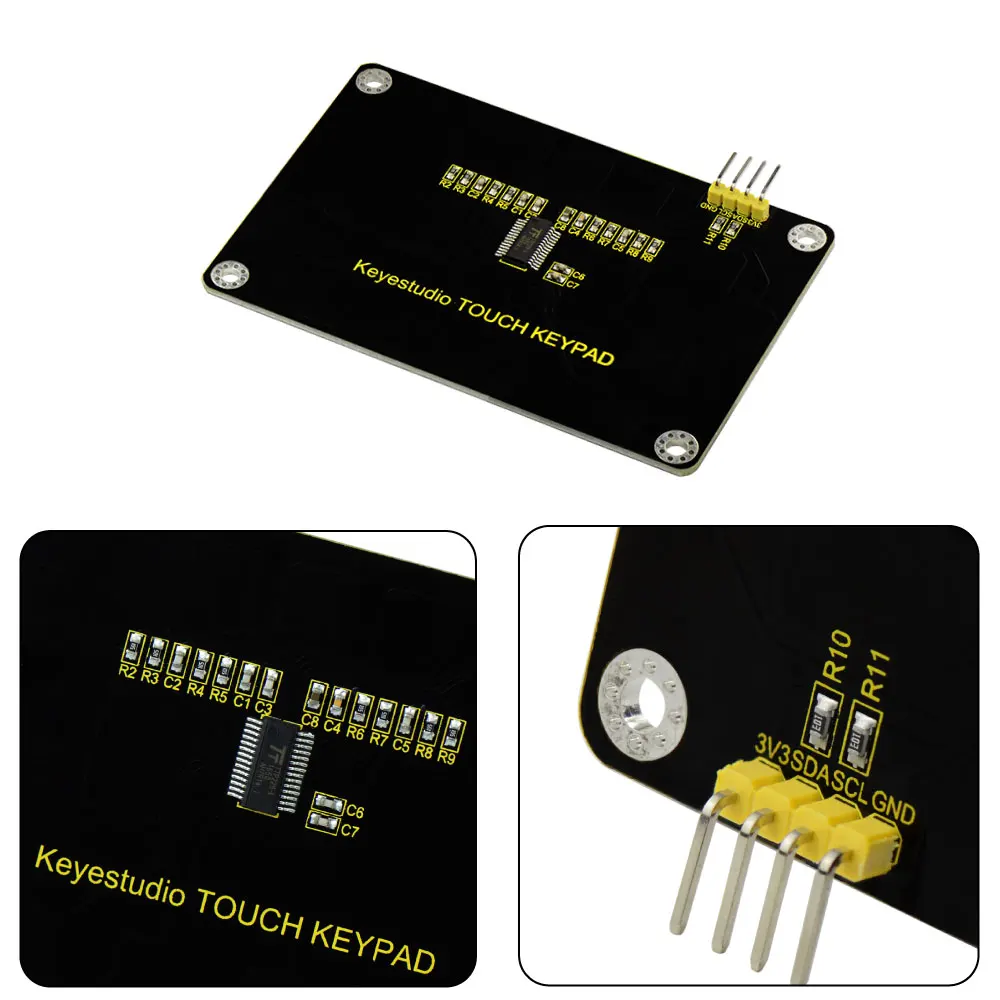

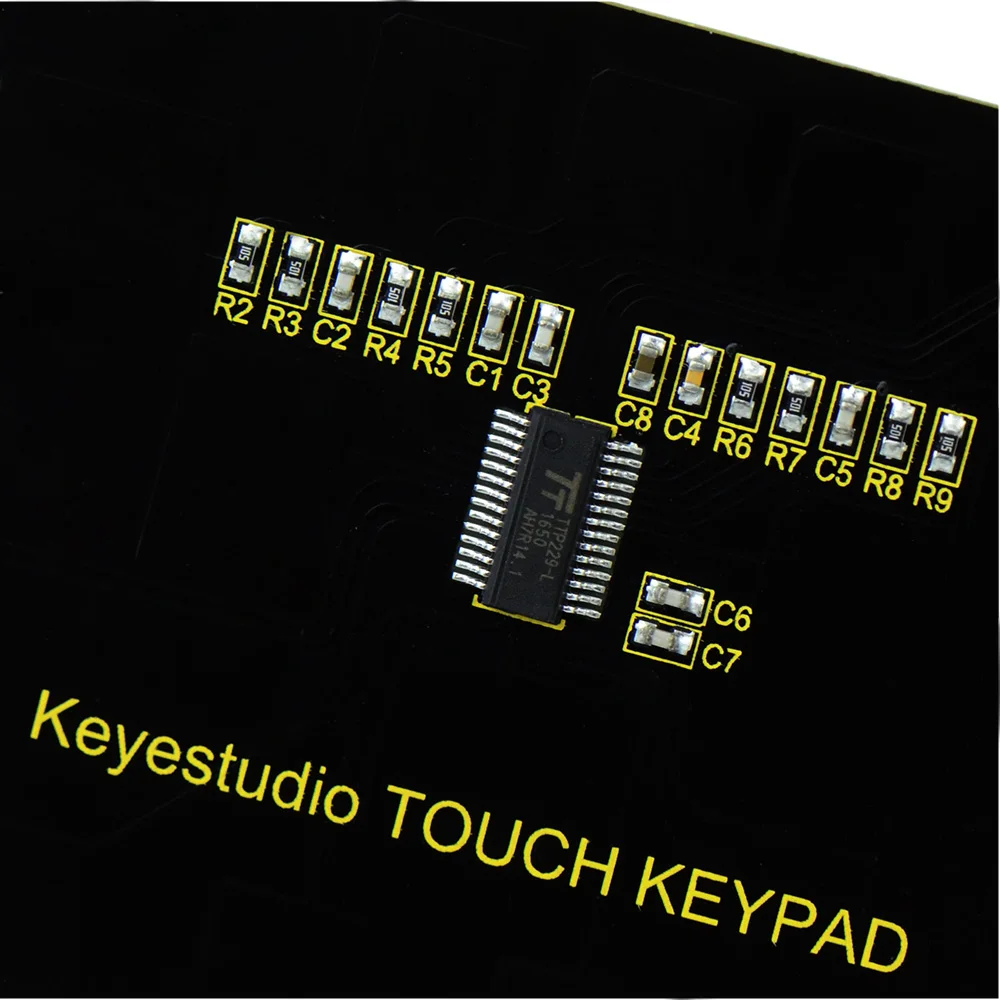

Onboard TTP229 capacitive 16-key touch sensor IC
Onboard power indicator
Working voltage: 2.4V-5.5V
Support to set the output mode, key output mode, the longest output time and fast / low power options

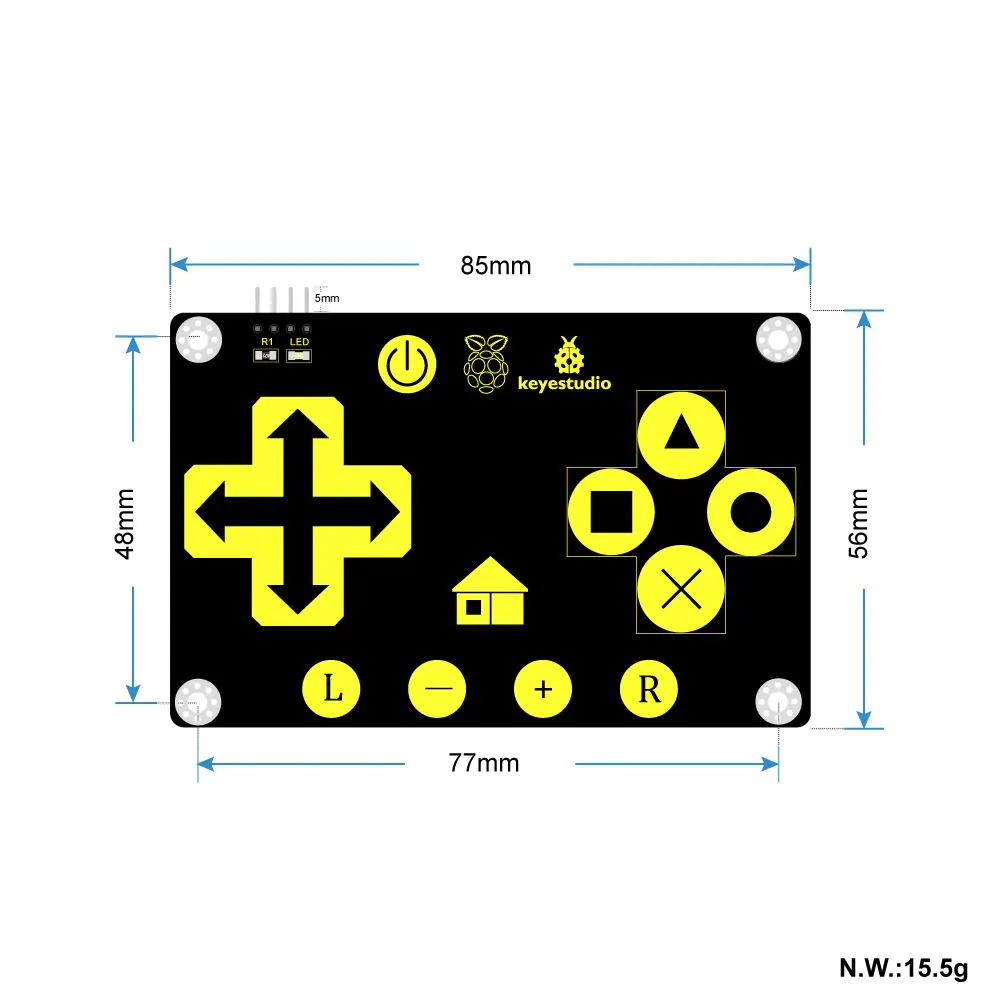

Size: 85mm * 55mm
Weight: 15.5g

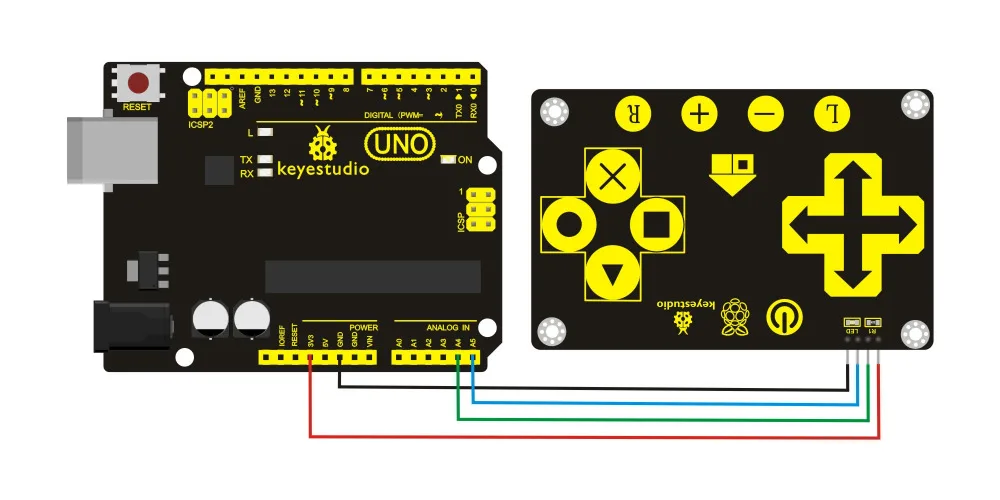

Connection Diagram
Codes
#include “TTP229L_I2C.h”
void setup()
{
Serial.begin(9600);
}
void loop()
{
unsigned int dat;
dat=TTP229_i2c_read();
Serial.println(dat);
delay(1000);
}
Result

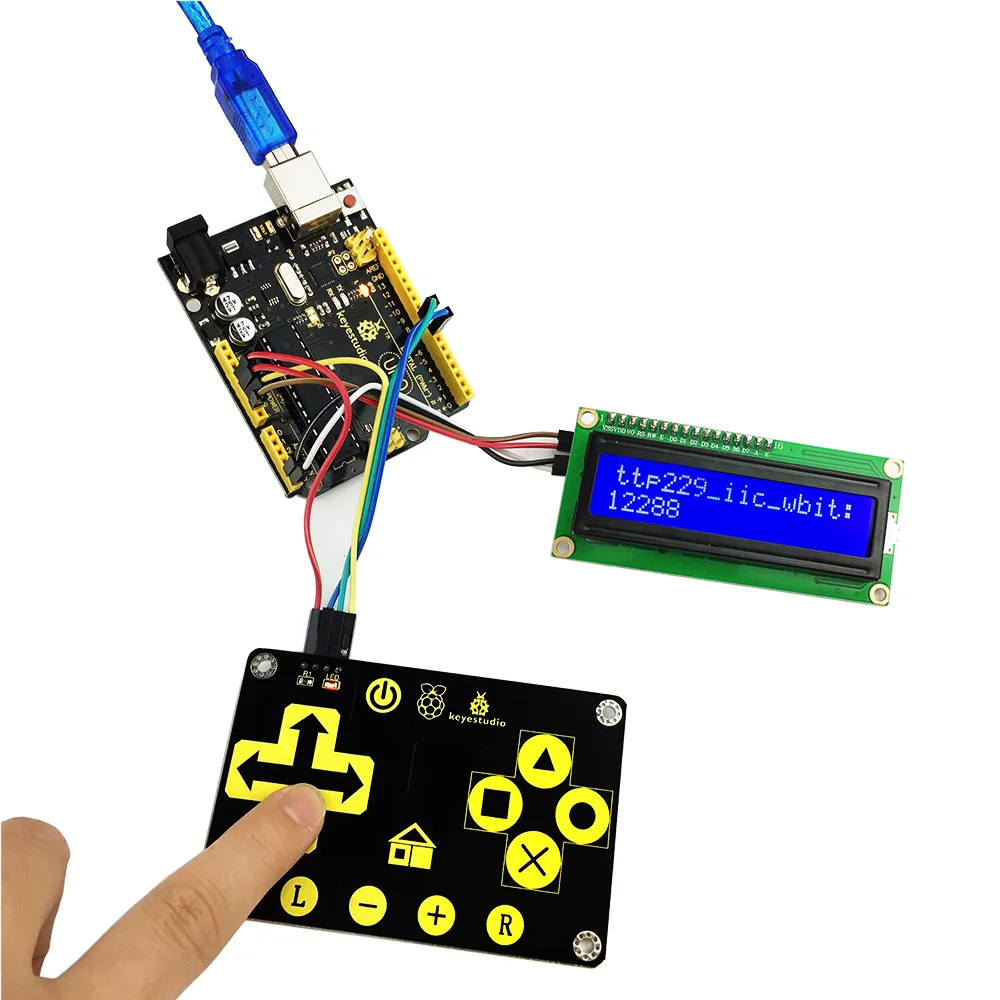

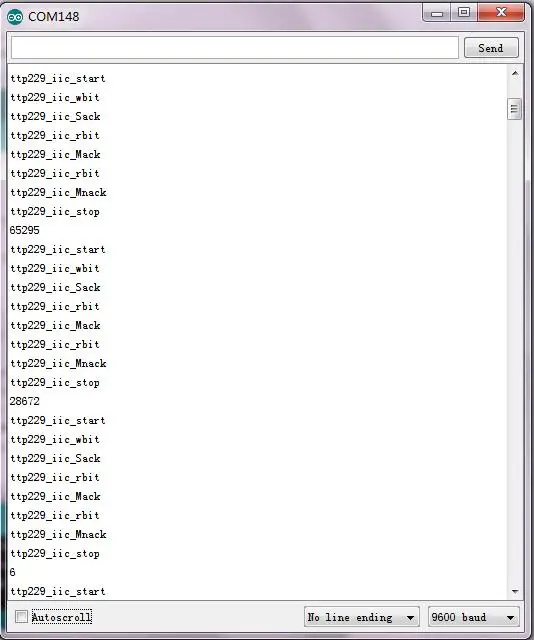

After uploading the code to the UNO board, connect the UNO board to TTP229L module. Powered up, you can see the red LED on the module is on, then open the serial monitor, touch the key with finger and you can see the corresponding value as the figure shown below：
