Introduction

This sensor is mainly used to test the water’s turbidity.

The principle is to convert the current signal into the voltage output through the circuit.

Its detection range is 0%-3.5% (0-4550NTU) , with an error range of ±05%F*S.

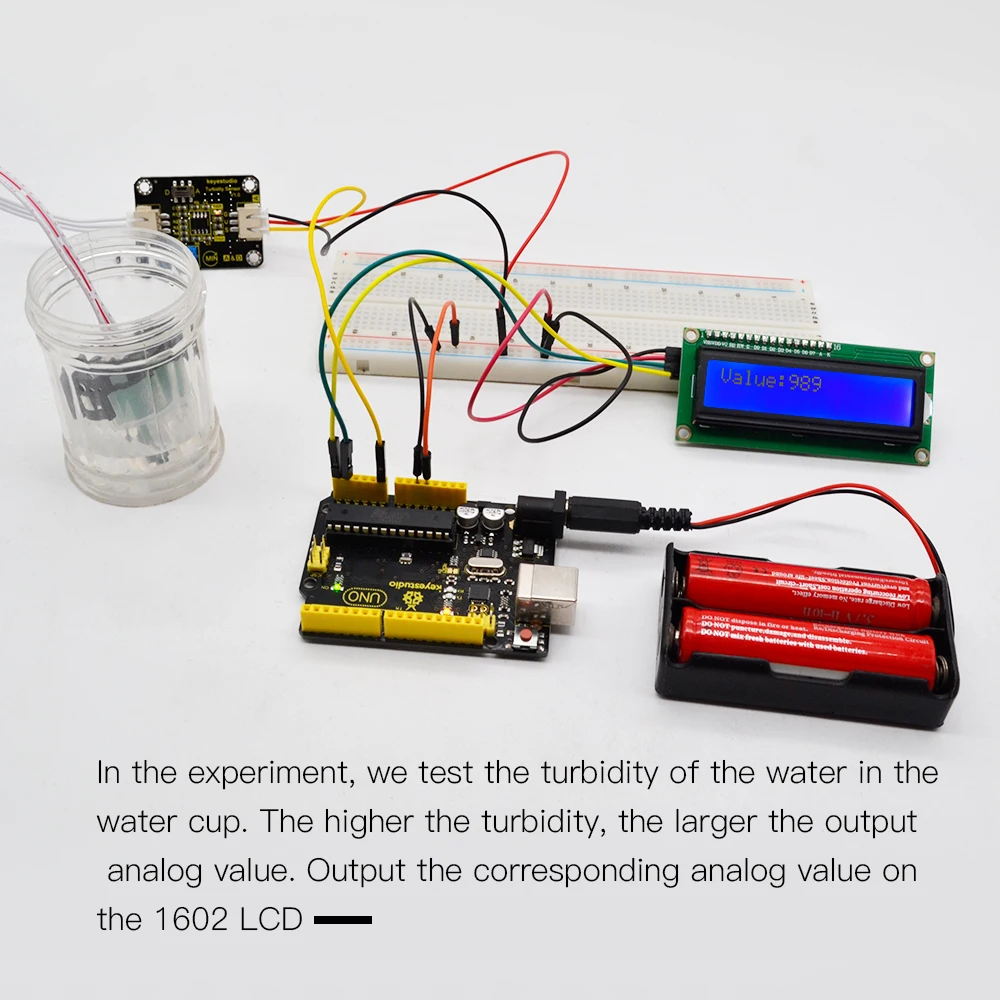

When using, measure the voltage value of sensor’s Signal end; then work out the water’s turbidity by simple calculation formula.

Note: the sensor is not water-proof; can only place the transparent part into water.

Input Voltage: 3.3 ~ 5.5V

Output Voltage: 0 ~ 2.3V

Working Current: 3 ~ 6mA
