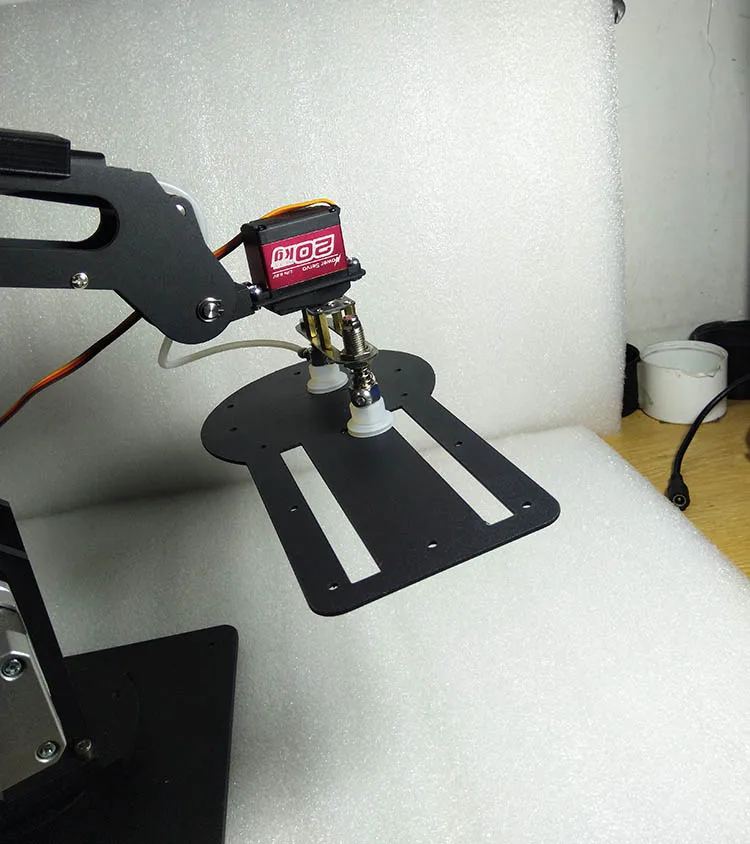

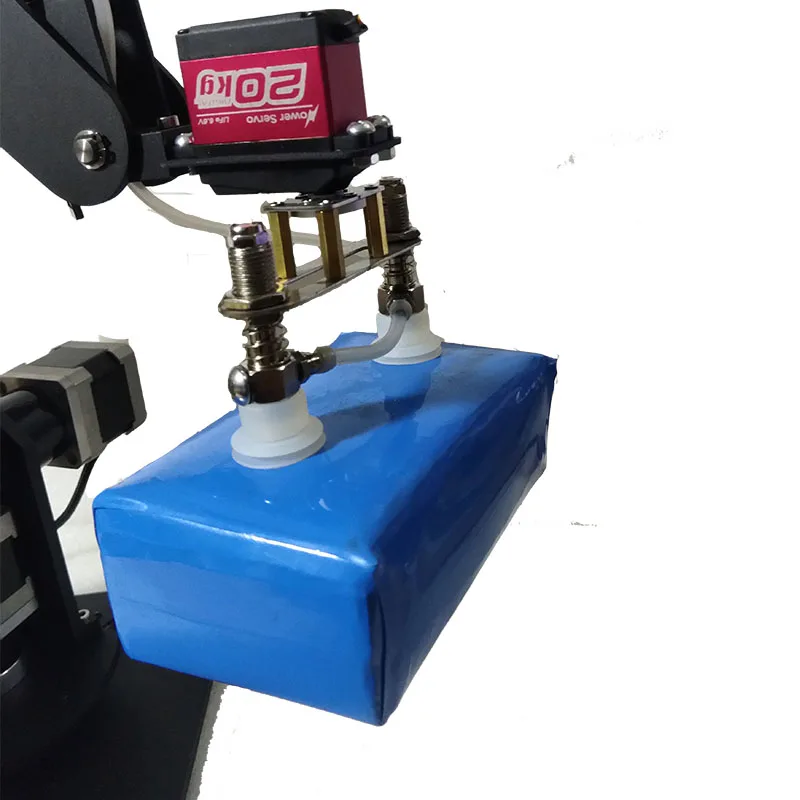

UNO R3 Robotic Arm True Air Pump Suction Cup Multi-purpose Pumping Water Pump Support For Arduino Programmable DIY kit

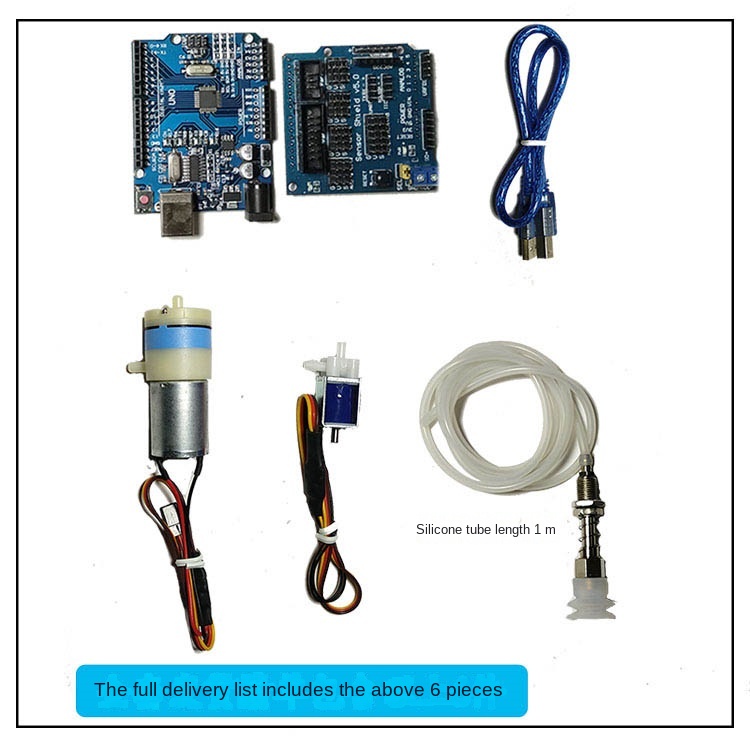

Package Included:(OPTIONAL)

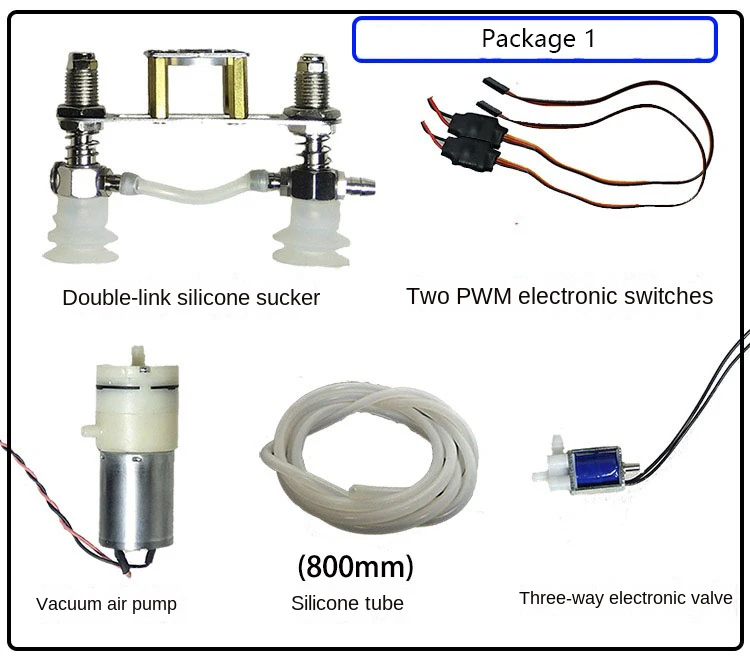

Package 1:
Vacuum 2 air pump *1
Three-way electronic valve *1
Vacuum telescopic connecting rod + suction cup *2
Silicone trachea 800mm*1
PWN digital electronic switch *2
Packgae 2:
Vacuum 2 air pump*1
Three-way electronic valve*1
Vacuum telescopic connecting rod + suction cup*2
Silicone trachea 800

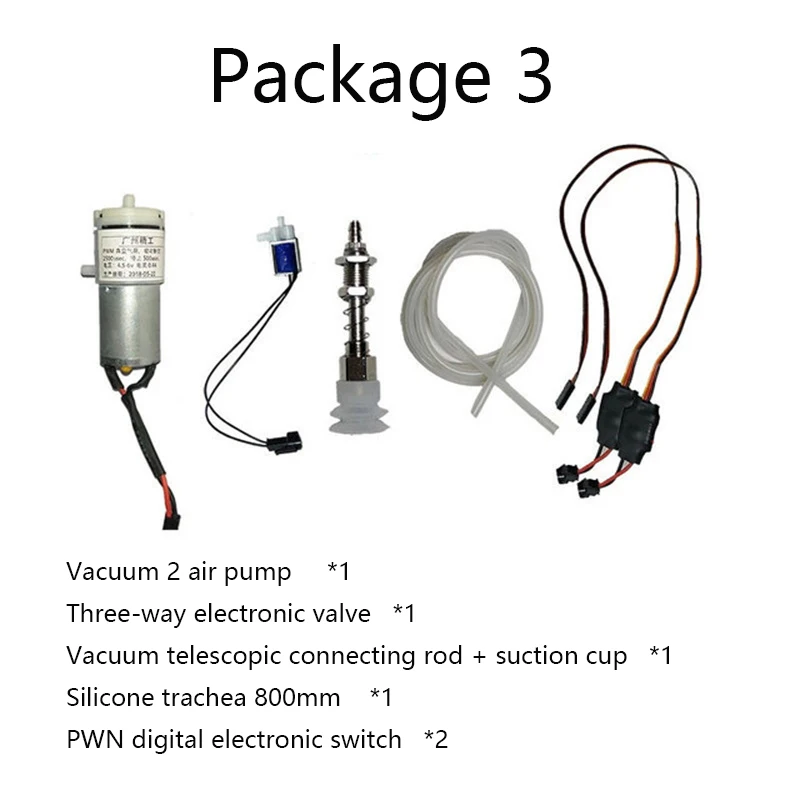

Package 3:
Vacuum 2 air pump *1
Three-way electronic valve *1
Vacuum telescopic connecting rod + suction cup *1
Silicone trachea 800mm*1
PWN digital electronic switch *2

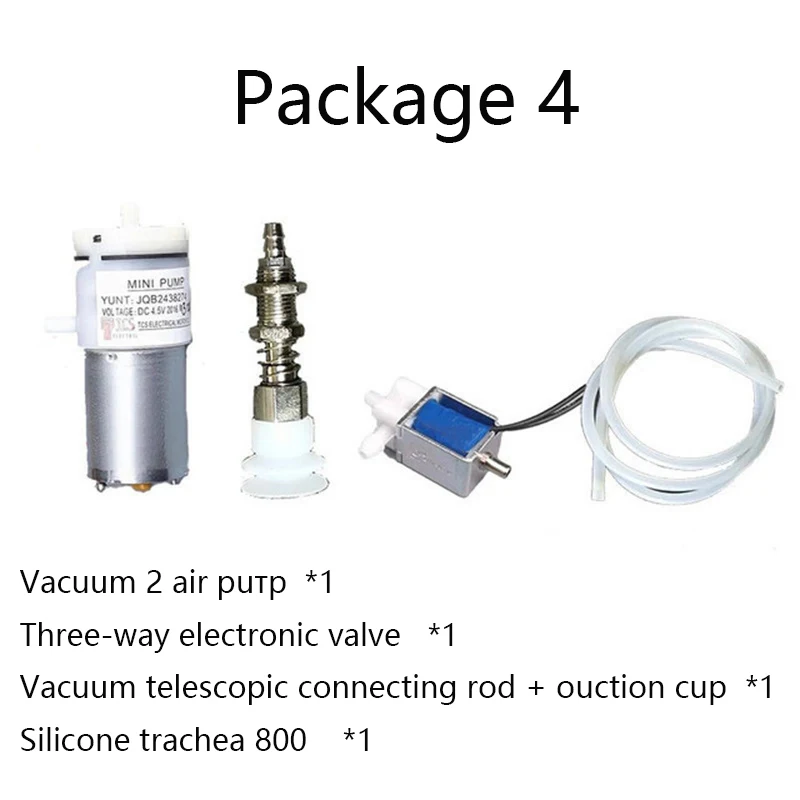

Packgae 4:
Vacuum 2 air pump*1
Three-way electronic valve*1
Vacuum telescopic connecting rod + suction cup*1
Silicone trachea 800 *1
-
-
-
-
-
-
Specification:

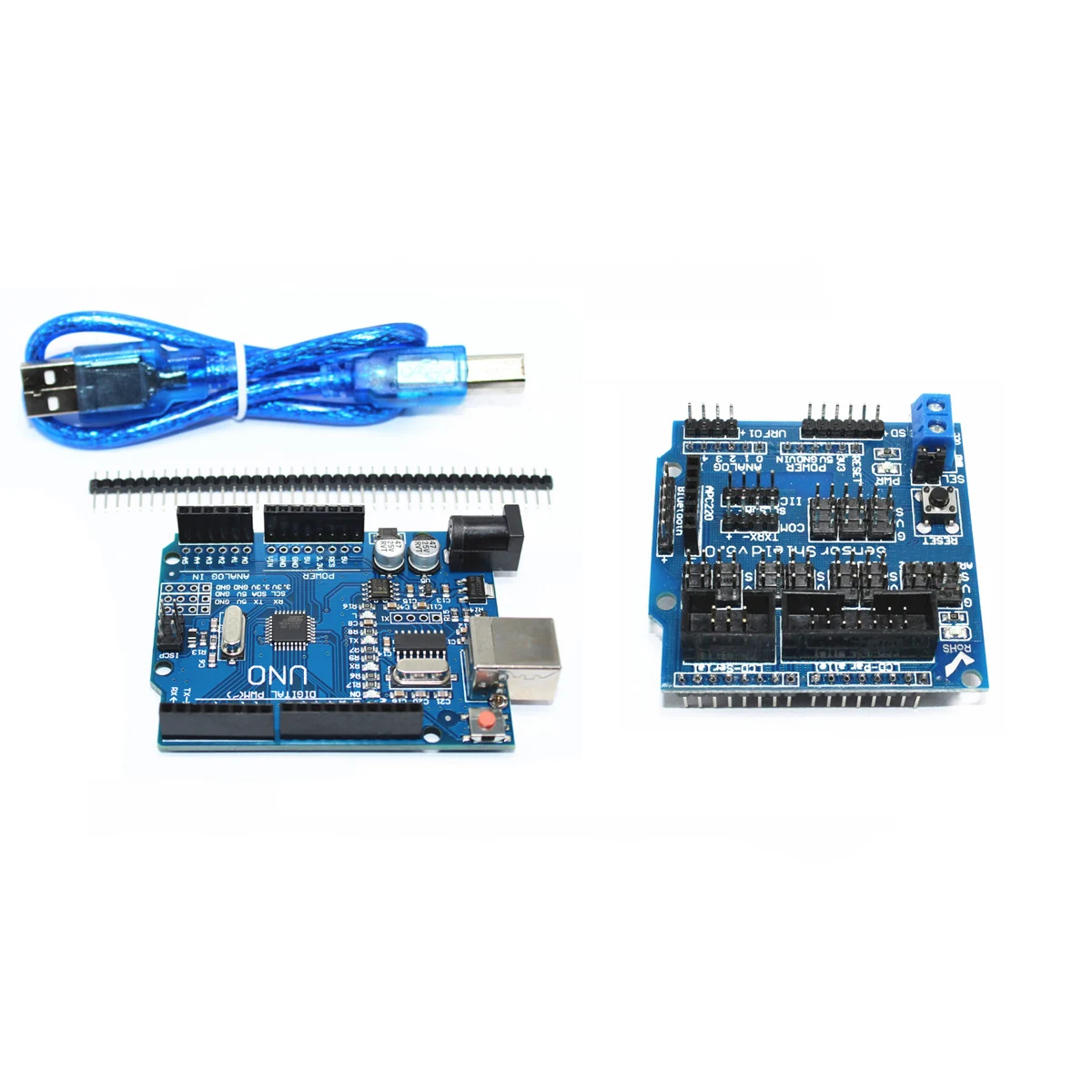

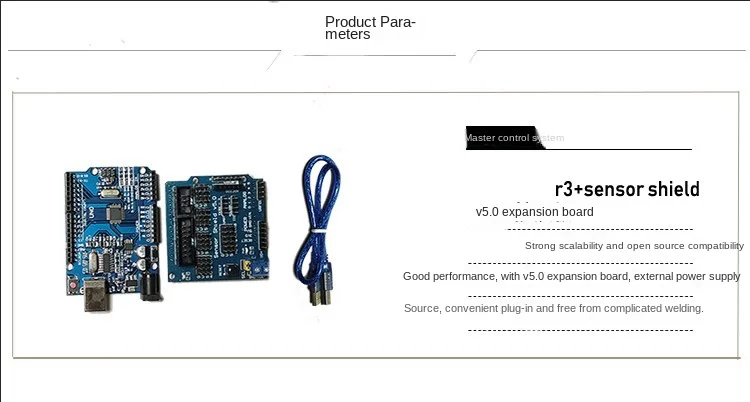

3+sensor shieldv5.0 expansion board has strong expansibility and good open source compatibility. With v5.0 expansion board, ShielDV5.0 can be connected to external power supply to facilitate cable insertion and avoid tedious welding.

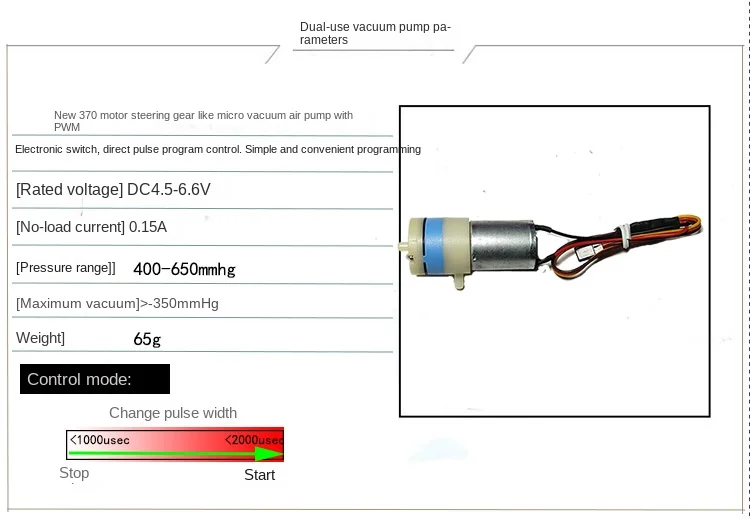

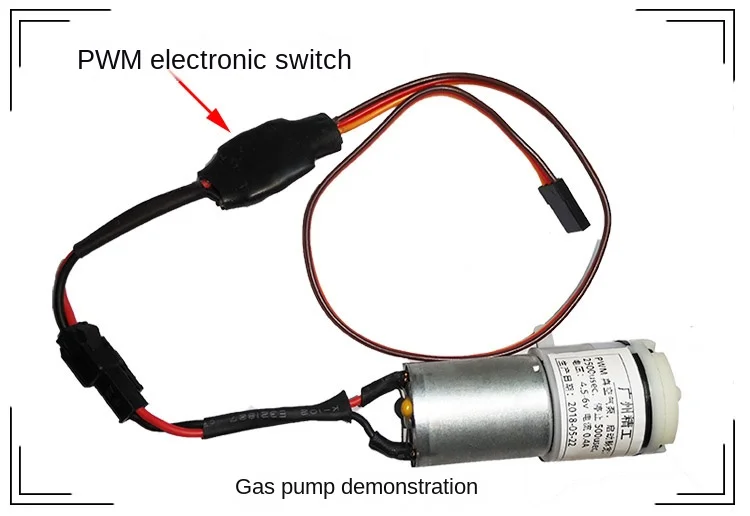

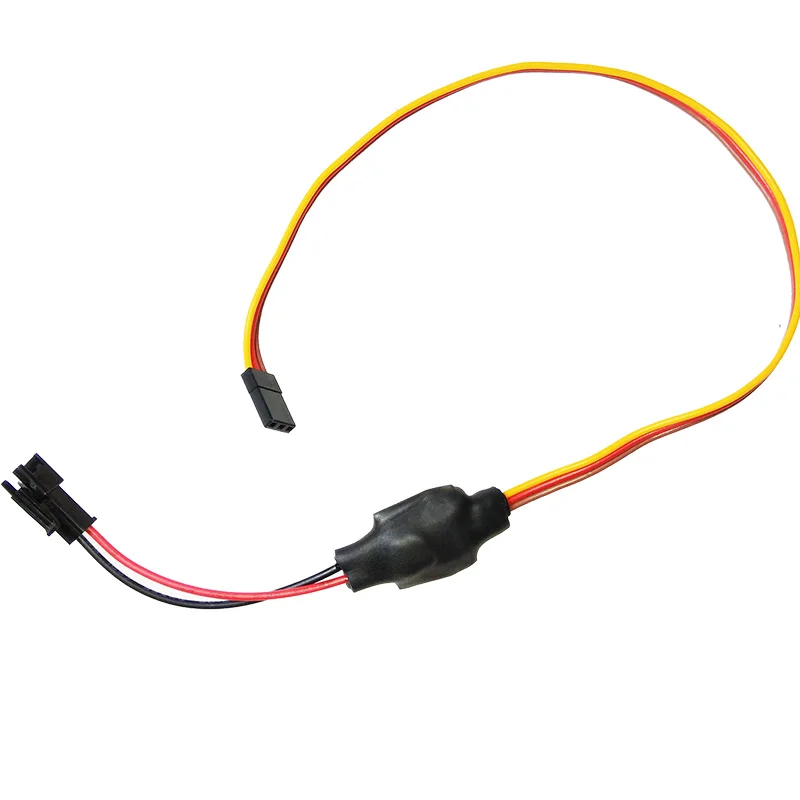

The new 370 motor steering gear is like a miniature vacuum air pump with PWM electronic switch, direct pulse program control. Simple and convenient programming
[Voltage] DC 4.5-6.6 V
[no-load current] 0.15A
【 Pressure range 】 400-650mmhg
【 Maximum vacuum 】 : -350mmhg
【 Weight 】 65g
Control mode: Change pulse width
Stop. 1000usec
Start up 2000used

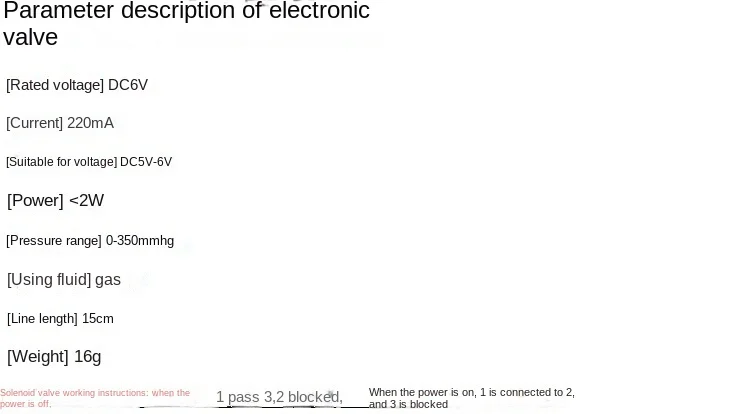

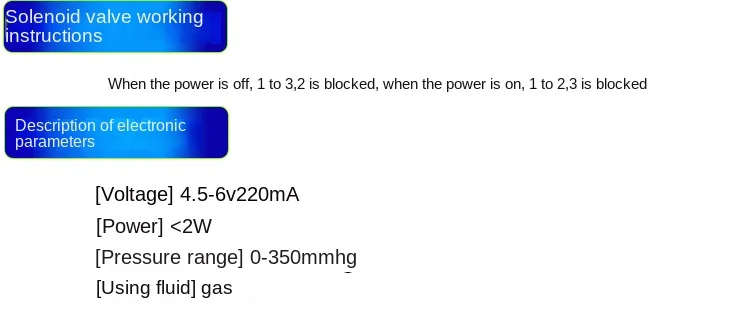

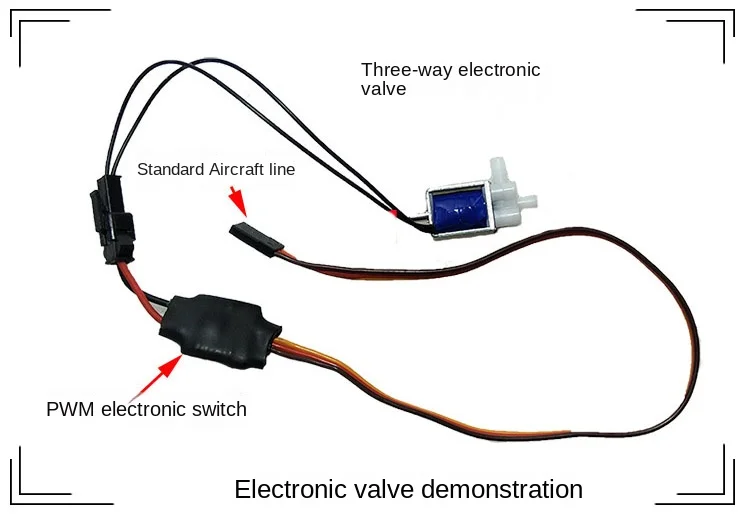

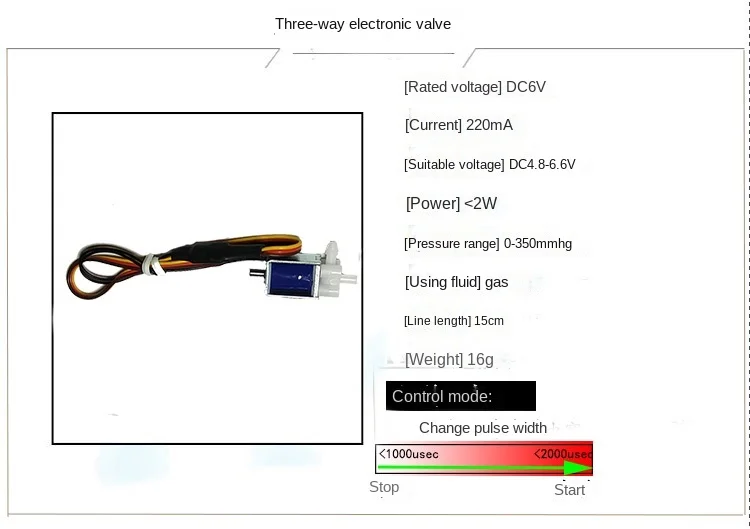

Three-way electronic valve
[Rated voltage] DC 6V
【 Current 】 220mA
[Suitable voltage] DC4.8-6.6v
【 Power 】 ; 2W
【 Pressure range 】 0-350mmhg
[Thread length] 15cm
【 Weight 】 16g
Control mode: Change pulse width
Stop. 1000usec
Start up 2000used

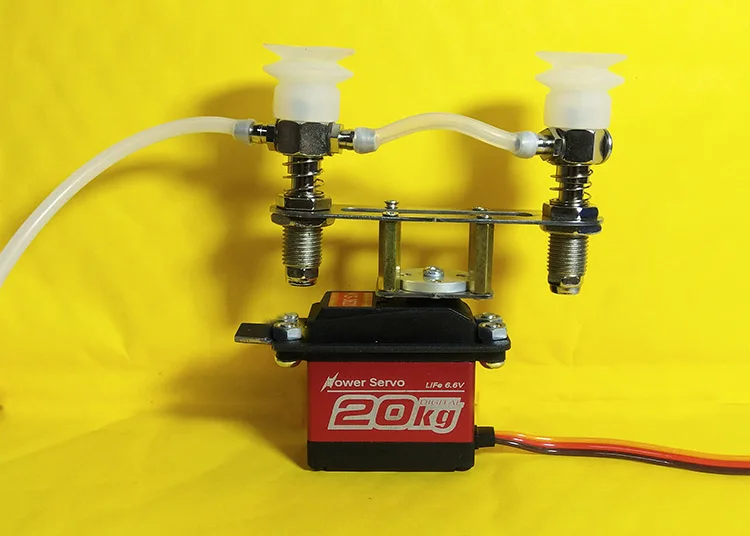

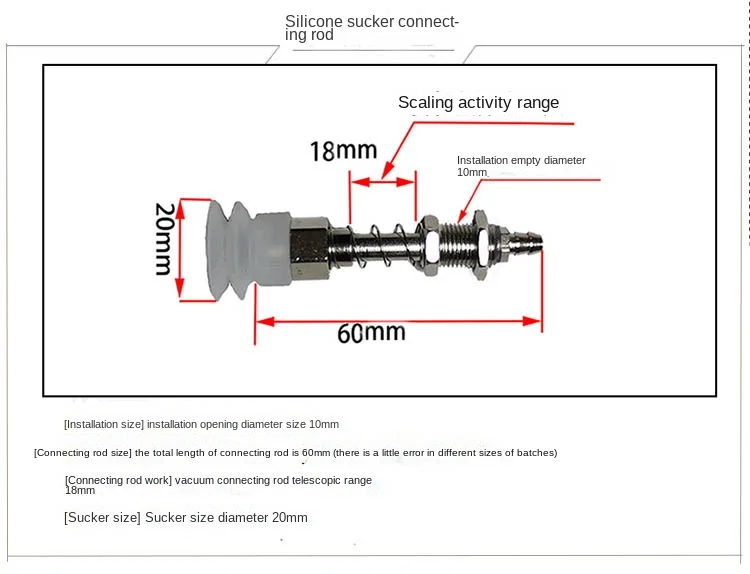

Silicone sucker rod
[Installation size] Installation hole diameter 10mm [connecting rod size] Total length of connecting rod 60mm (there is a little error in different sizes of batches)
【 Connecting rod operation 】 The telescopic activity range of vacuum connecting rod is 18mm
【 Suction Cup Size 】 The diameter of the suction cup is 20mm
-
If you need this manual of Robotic arm air bump and development documentation, such as Arduino or STM32 or 51 open source code, please contact us and leave your email.
Best Quality, Best Service !!!
-
-
-
-
The most complete development and design, you deserve to own this engineering project, we do technology first, service first, not just sell goods
-
-
-
-
