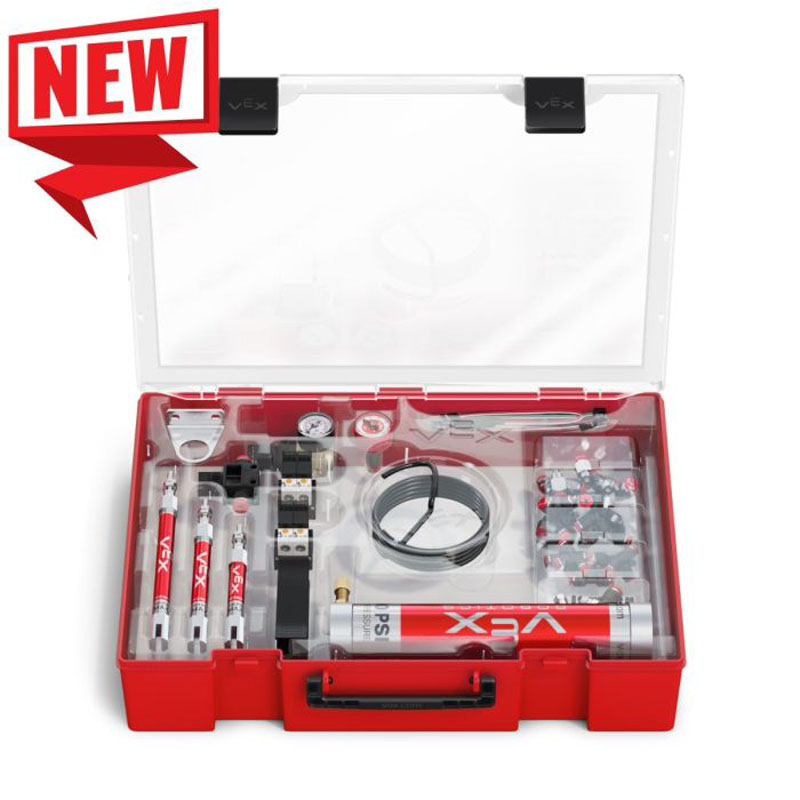

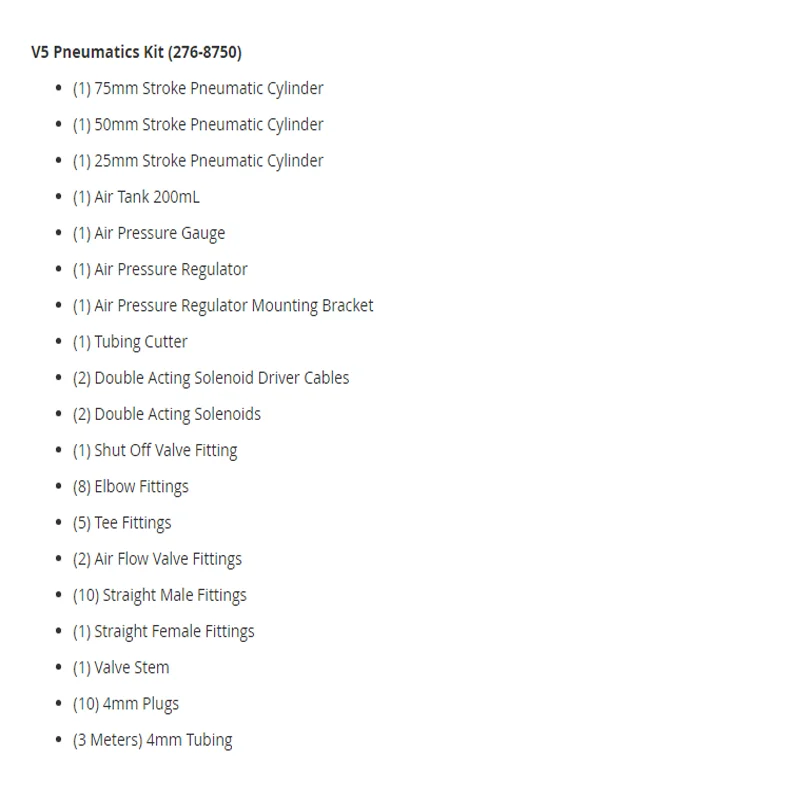

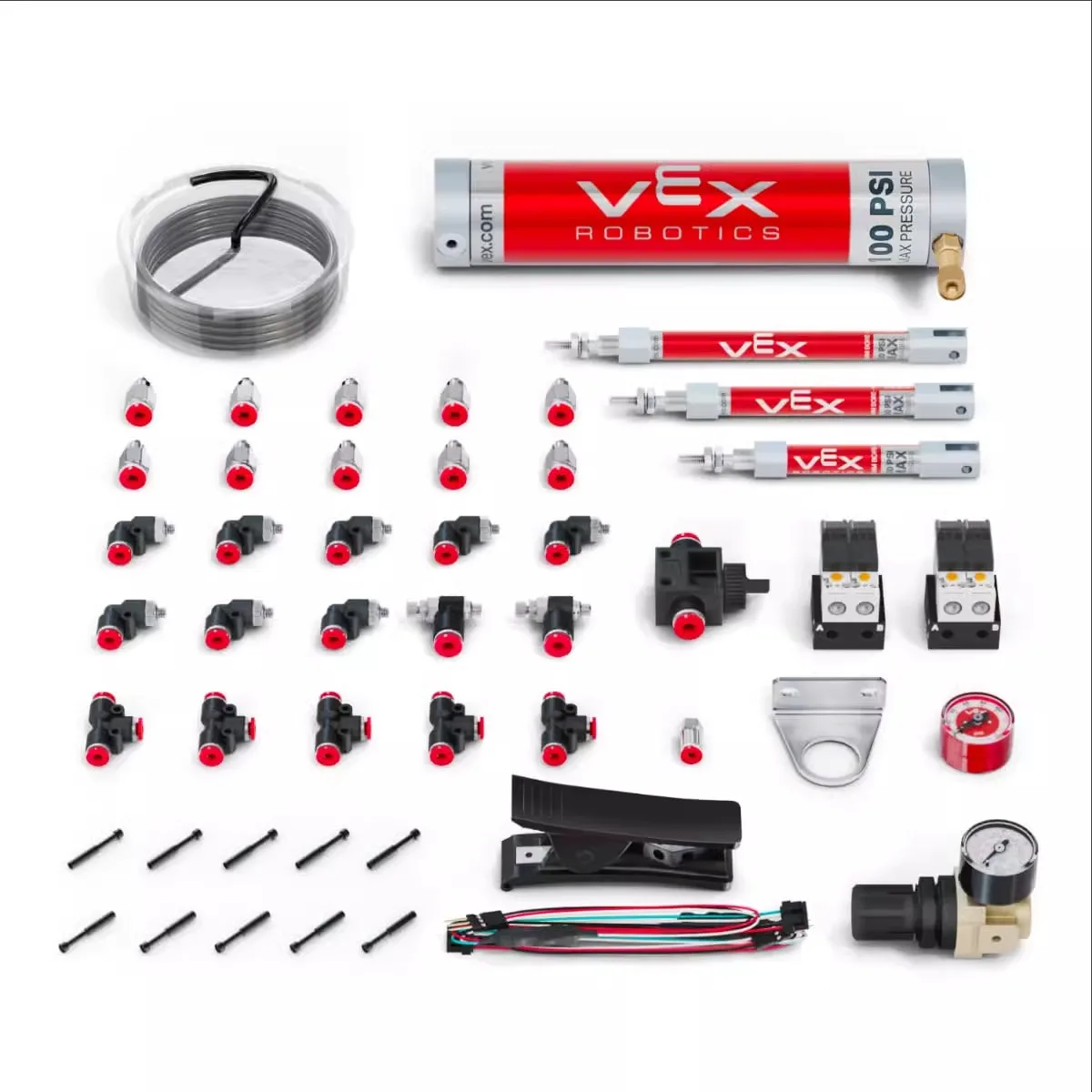

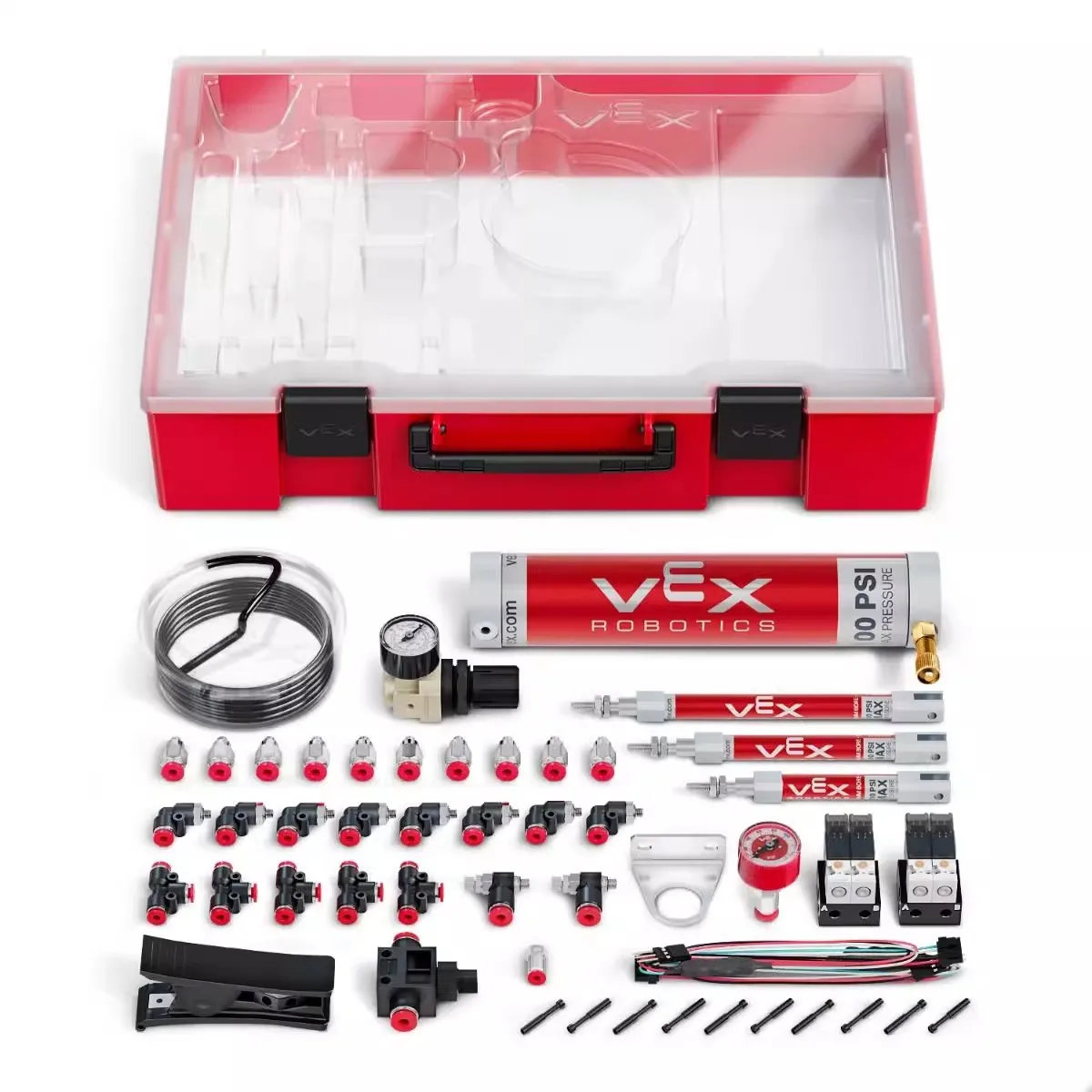

V5 Pneumatics Kit (276-8750)
* (1) 75mm Stroke Pneumatic Cylinder
* (1) 50mm Stroke Pneumatic Cylinder
* (1) 25mm Stroke Pneumatic Cylinder
* (1) Air Tank 200mL
* (1) Air Pressure Gauge
* (1) Air Pressure Regulator
* (1) Air Pressure Regulator Mounting Bracket
* (1) Tubing Cutter
* (2) Double Acting Solenoid Driver Cables
* (2) Double Acting Solenoids
* (1) Shut Off Valve Fitting
* (8) Elbow Fittings
* (5) Tee Fittings
* (2) Air Flow Valve Fittings
* (10) Straight Male Fittings
* (1) Straight Female Fittings
* (1) Valve Stem
* (10) 4mm Plugs
* (3 Meters) 4mm Tubing
Product Description

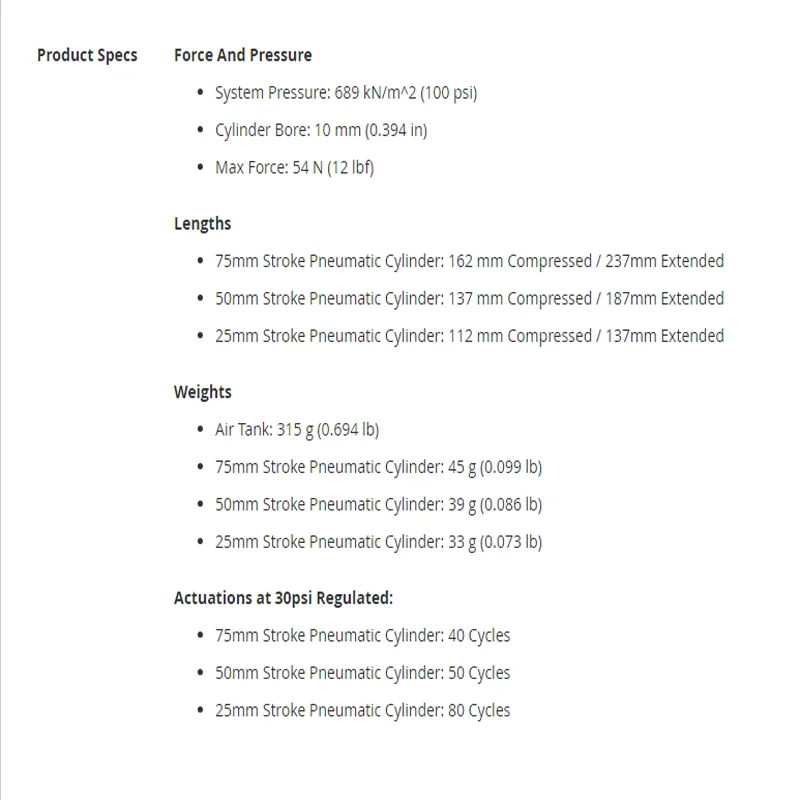

Force And Pressure
* System Pressure: 689 kN/m^2 (100 psi)
* Cylinder Bore: 10 mm (0.394 in)
* Max Force: 54 N (12 lbf)
Lengths
* 75mm Stroke Pneumatic Cylinder: 162 mm Compressed / 237mm Extended
* 50mm Stroke Pneumatic Cylinder: 137 mm Compressed / 187mm Extended
* 25mm Stroke Pneumatic Cylinder: 112 mm Compressed / 137mm Extended
Weights
* Air Tank: 315 g (0.694 lb)
* 75mm Stroke Pneumatic Cylinder: 45 g (0.099 lb)
* 50mm Stroke Pneumatic Cylinder: 39 g (0.086 lb)
* 25mm Stroke Pneumatic Cylinder: 33 g (0.073 lb)
Actuations at 30psi Regulated:
* 75mm Stroke Pneumatic Cylinder: 40 Cycles
* 50mm Stroke Pneumatic Cylinder: 50 Cycles
* 25mm Stroke Pneumatic Cylinder: 80 Cycles
