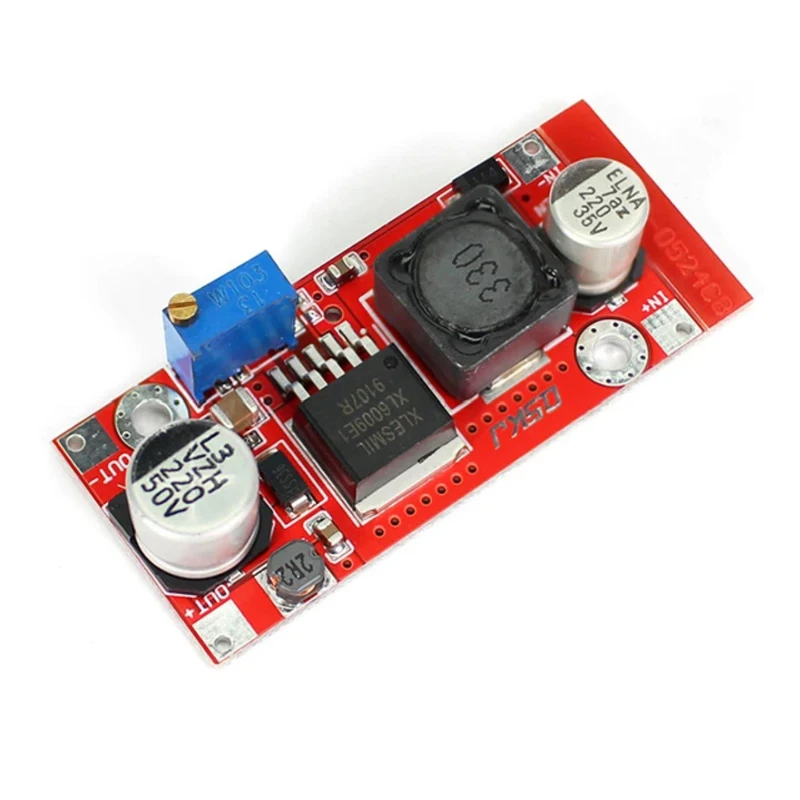

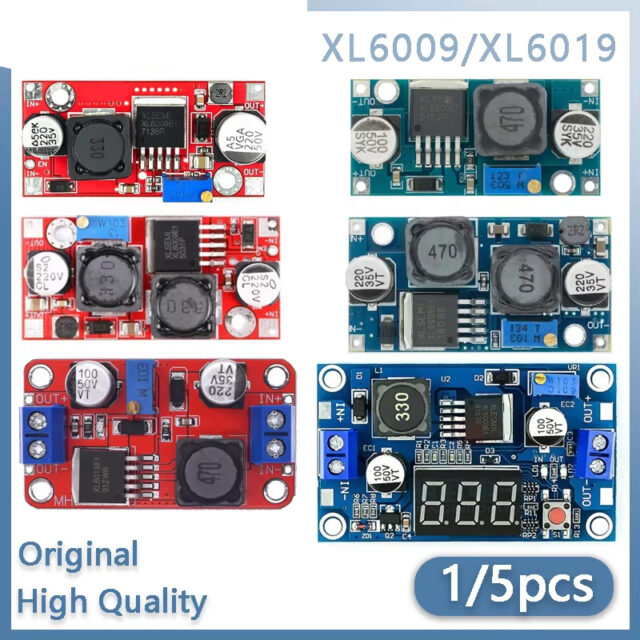

XL6009 automatic voltage lifting module

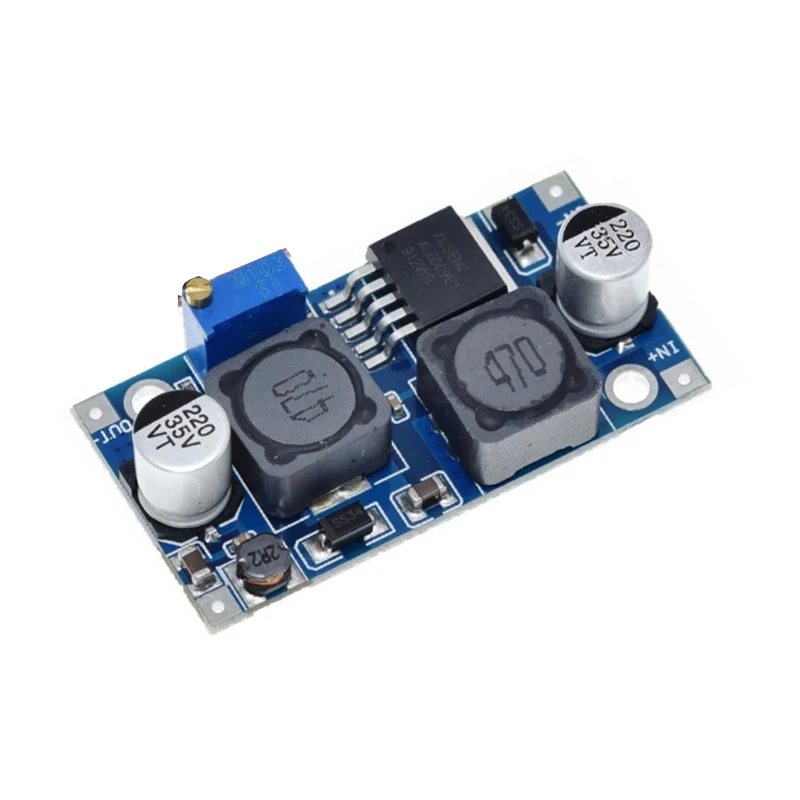

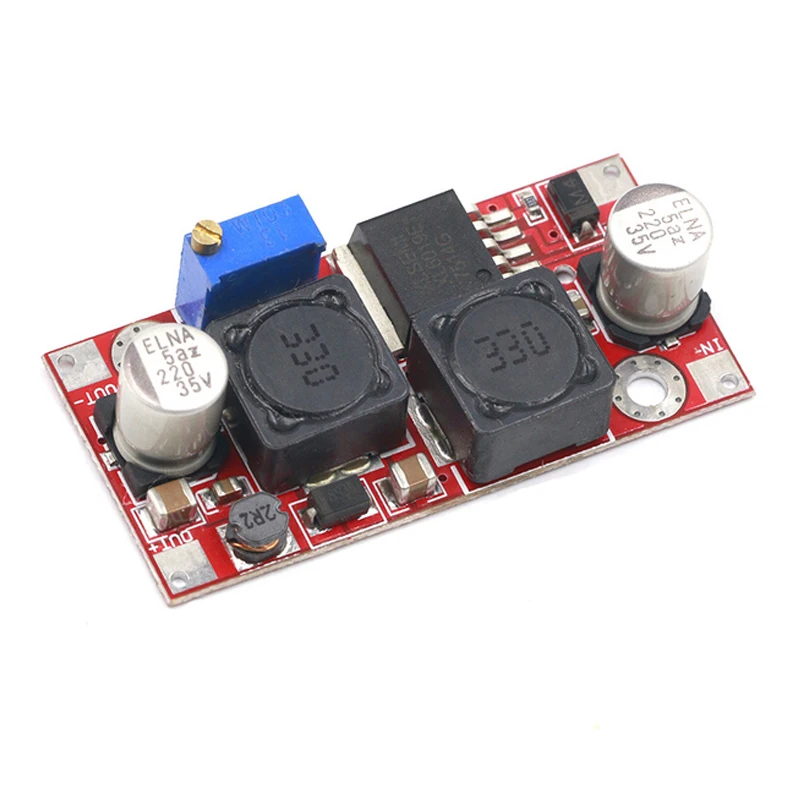

DSN6000AUD automatic voltage lifting module
Module nature: non-isolated boost (BOOST)
Rectification mode: asynchronous rectification
Input range: 3.8V~32V
Output range: 1.25V~35V
Input current: 3A (large), no-load 18mA (5V input, 8V output, no-load less than 18mA. The higher the voltage, the greater the no-load current.)
Conversion efficiency:<94% (the greater the pressure difference, the lower the efficiency)
Switching frequency: 400KHz
Output ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)

When the car starts, the voltage will be pulled down to less than 7V or less, and the voltage of the engine will be as high as 15V or higher at high speed.
It is difficult for electrical appliances working at 12V to work normally. This automatic voltage rise and fall module solves this problem. No matter the input voltage is 5V, 12V or 32V, the output can be stable at 12V.
Ultra-wide input voltage 5V~32V
Ultra-wide output voltage 1.25V~35V (with automatic voltage rise and fall, within the working range, any voltage input can stabilize any voltage output)
Built-in 4A high-efficiency MOSFET switch, making the efficiency up to 94%; (LM2577 current only 3A)
Ultra-high switching frequency 400KHz, smaller ripple and smaller volume. (LM2577 frequency only 50KHz)

Application field:
Vehicle voltage stabilization, solar photovoltaic power generation, wind power generation and other voltage unstable applications.

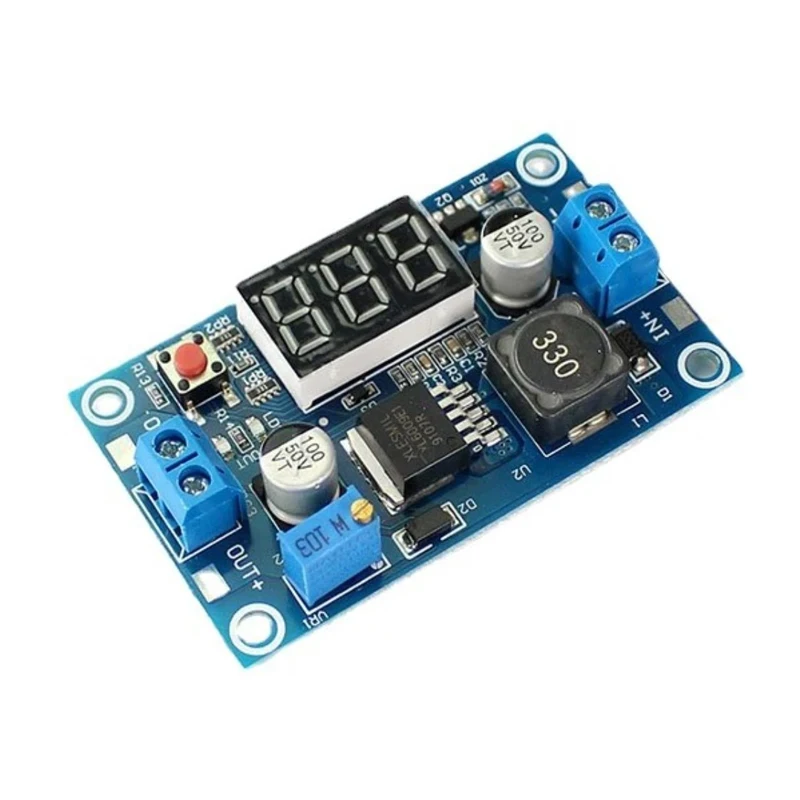

XL6009 DC-DC adjustable boost module 5-32V to 5-40V 4A with digital display

Technical parameters:
Module nature: non-isolated boost (BOOST)
Rectification mode: asynchronous rectification
Input current: 4A (large), no-load 18mA (5V input, 8V output, no-load less than 18mA. The higher the voltage, the greater the no-load current.)
Conversion efficiency:<94% (the greater the pressure difference, the lower the efficiency)
Switching frequency: 400KHz
Output ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
Load adjustment rate: ± 0.5%
Voltage regulation rate: ± 0.5%
Working temperature: – 40 ℃~+85 ℃
Overall dimension: 65mm * 39mm * 14mm (length * width * height)

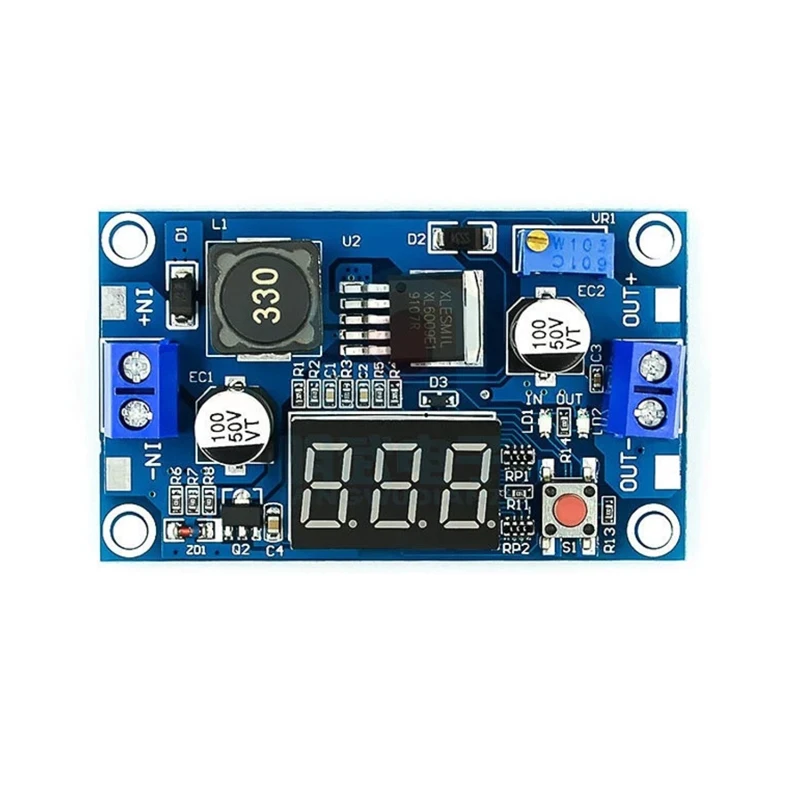

With input display indicator and output display indicator, the IN indicator lights up when the nixie tube displays the input voltage, and the OUT indicator lights up when the nixie tube displays the output voltage

Wiring instructions
IN+: input positive
IN -: input negative
OUT+: output positive
OUT -: output negative

Other instructions:
XL6009 is a high performance boost (BOOST) module with 4A switching current. The module uses XL6009E1 of the second generation high-frequency switching technology as the core chip, and its performance is far better than LM2577 of the generation technology.
The XL6009 booster module has lower cost and better performance.
With terminal blocks, it can be used easily without soldering iron, and the welding wire connection points are reserved.
With overheat protection and short circuit protection function
Scope of application:
This module can be used in the field of boosting the output voltage higher than the input voltage, such as battery, power transformer, DIY adjustable regulated power supply, 24V vehicle-mounted pen book power supply, industrial equipment step-down, 9 to 12V, 12V to 18V, 18V to 24V, etc.

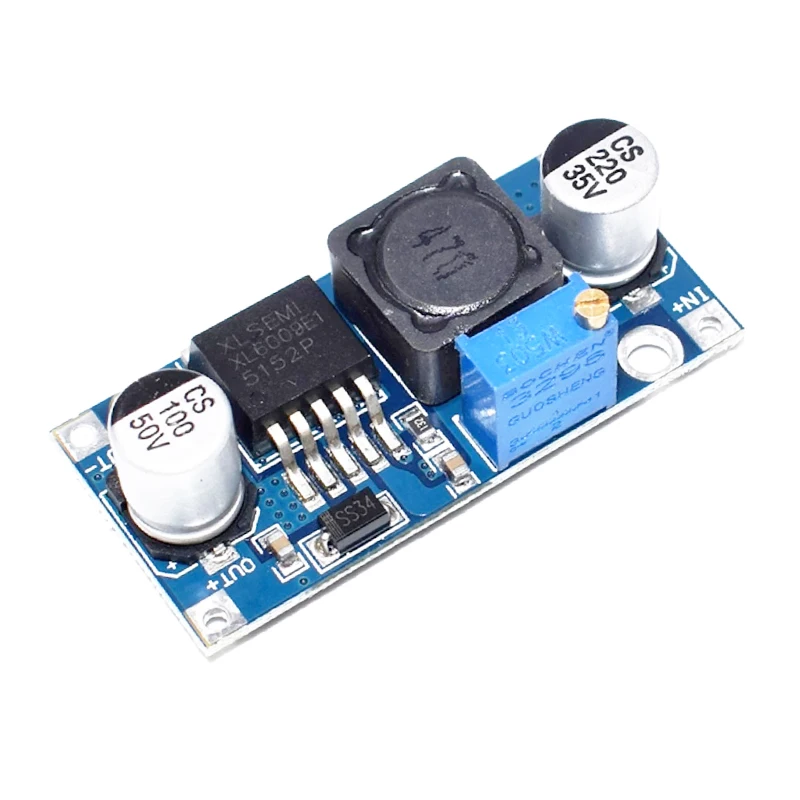

XL6009 DC-DC adjustable power supply boost module has higher performance than LM2577

brief introduction
1. Brand new original XLSEMI chips, counterfeit and disassembled chips.
2. Working frequency up to 400Khz, and LC filter circuit, the output ripple is very low.
3. Imported TDK inductor reduces heat and interference to.
4. Input and output three MLCC multilayer ceramic capacitors, anti-interference stability.
5. The PCB is made of kb grade A plate material, paperboard and garbage board.
6. Built-in MOSFET, say goodbye to LM2577 built-in triode, can achieve 94% rate.
7. An enabling port is added to control whether the boost circuit works.

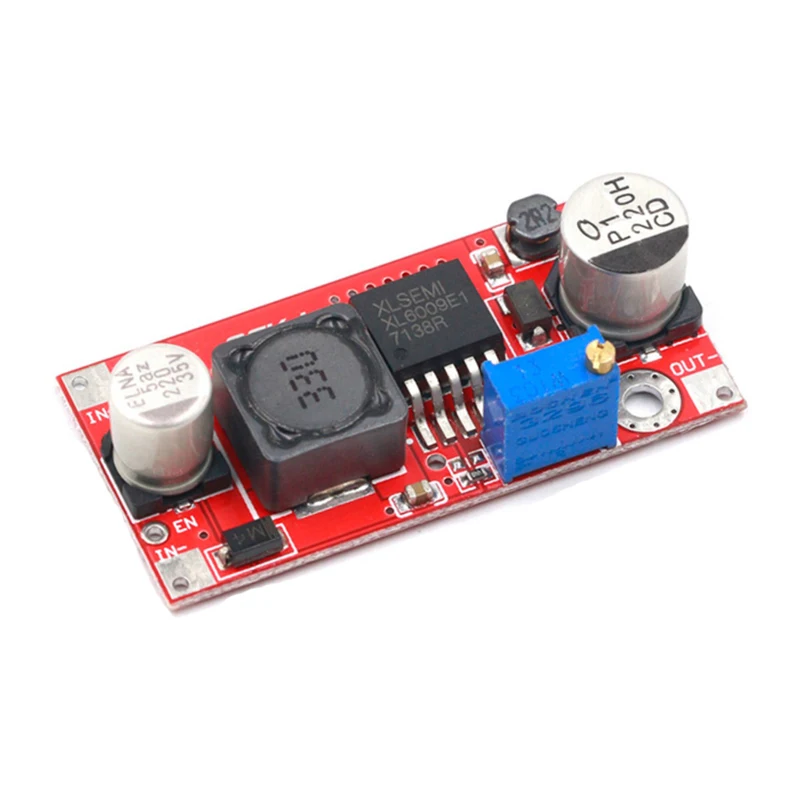

15W power module with enabling port

Module parameters
Module nature: non-isolated booster module (BOOST)
Input voltage: 5-32V

Output voltage:
(1) continuously adjustable (5-50V)
(2) Fixed output (optional between 5-50V), please tell the shopkeeper when purchasing.
(3) Please contact me directly if you need higher voltage
Output current: 2. (MAX)
Input current: 4A (MAX)
Output power: natural cooling 15W, with fins 25W (MAX) actual power
Output power=input voltage * 4A * conversion efficiency
Output ripple: input 12V output 24 0 Ripple 30MV 20M bandwidth
Working temperature: industrial grade (- 40 ℃ to+85 ℃) (if the ambient temperature is more than 40 ℃, please reduce the power to use, or strengthen the heat dissipation)
Temperature rise under full load: 45 ℃
Working frequency: 400khz
No-load current: 5V to 12V 15mA, 8.4V to 12V 7mA, 12V to 24V 9mA, 12V to 36V 18mA, 24V to 48V 9mA, 24V to 36V 6mA.
Load adjustment rate: ± 0.5%
Voltage regulation rate: ± 0.5%
Dynamic response speed: 5% 200uS
Enable control port: Yes, high level 1.4V-VIN (ON), low level 0-0.8V (OFF), default high level
Short circuit protection: none (please add fuse or protection circuit at the input)
Input reverse connection protection: None, please cooperate with our reverse connection protection board or connect diodes in series at the input.
Installation method: can be fixed with screws (fixing hole 3mm), 2 fixing holes

Wiring mode: welding. After adding pins, it can be directly welded on

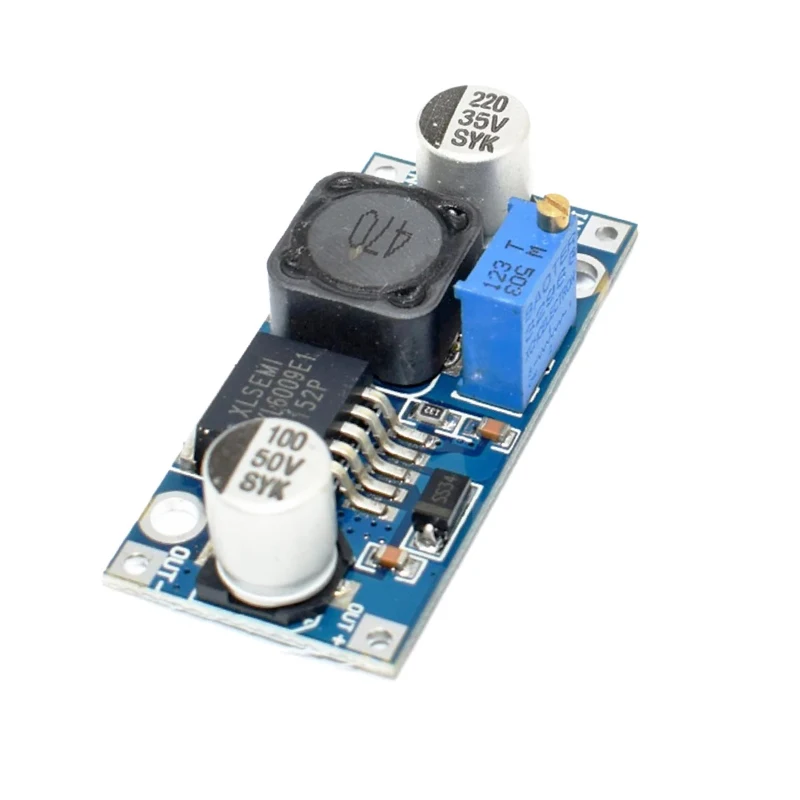

XL6009 DC-DC adjustable power supply high performance voltage regulator module

1. Working frequency up to 400Khz, and LC filter circuit, the output ripple is very low.
2. Imported inductor reduces heat and interference to.
3. Input and output three MLCC multilayer ceramic capacitors, anti-interference stability.
4. The PCB is made of kb grade A plate material, paperboard and garbage board.
5. Built-in MOSFET, say goodbye to LM2577 built-in triode, can achieve 94% rate.
6. An enabling port is added to control whether the boost circuit works.

Module parameters
Module nature: non-insulated step-down module
Input voltage: 5-32V
Output voltage: (1) continuously adjustable (1.2-35V)
Input current: 4A (MAX)
Output power: natural cooling 20W, plus 25W (MAX) actual power
Output power=input voltage * 4A * conversion efficiency
Conversion efficiency: the working efficiency of measured common voltage and current (the following is for reference only)
Output ripple: input 12V output 24 0 Ripple 30MV 20M bandwidth (for reference only)
Working temperature: industrial grade (- 40 ℃ to+85 ℃) (if the ambient temperature is more than 40 ℃, please reduce the power to use, or strengthen the heat dissipation)
Temperature rise under full load: 45 ℃
Working frequency: 400khz
No-load current: typical 15mA (5V to 12V)
Load adjustment rate: ± 0.5%
Voltage regulation rate: ± 0.5%
Dynamic response speed: 5% 200uS
Enable control port: Yes, high level 1.4V-VIN (ON), low level 0-0.8V (OFF), default high level
Short circuit protection: none (please add fuse or protection circuit at the input)
Input reverse connection protection: none, please cooperate with our or input series diode.
Installation method: can be fixed with screws (fixing hole 3mm), 2 fixing holes
Wiring mode: welding. After adding pins, it can be directly welded on PCB

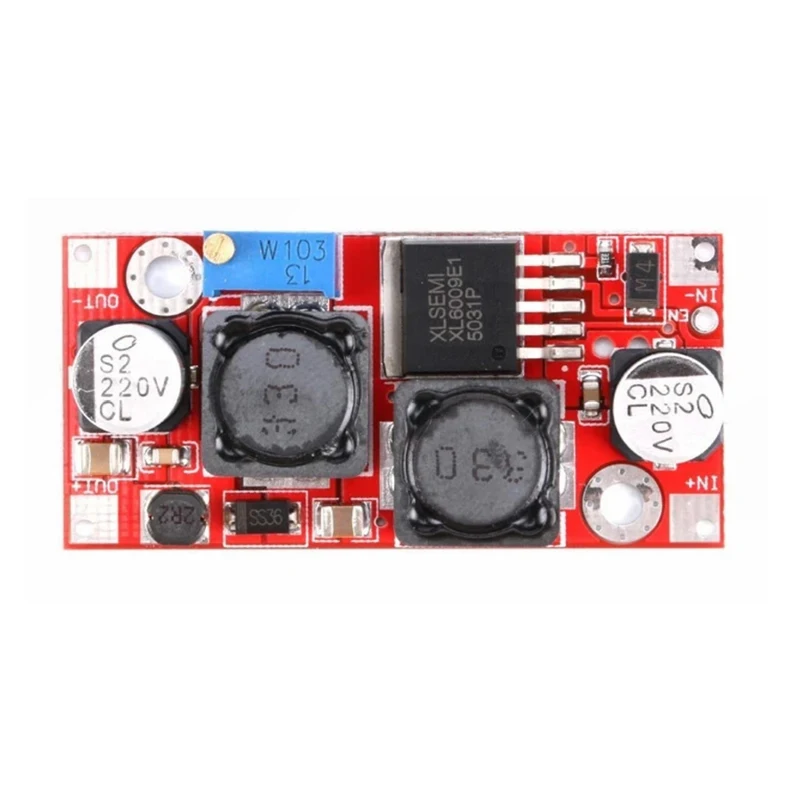

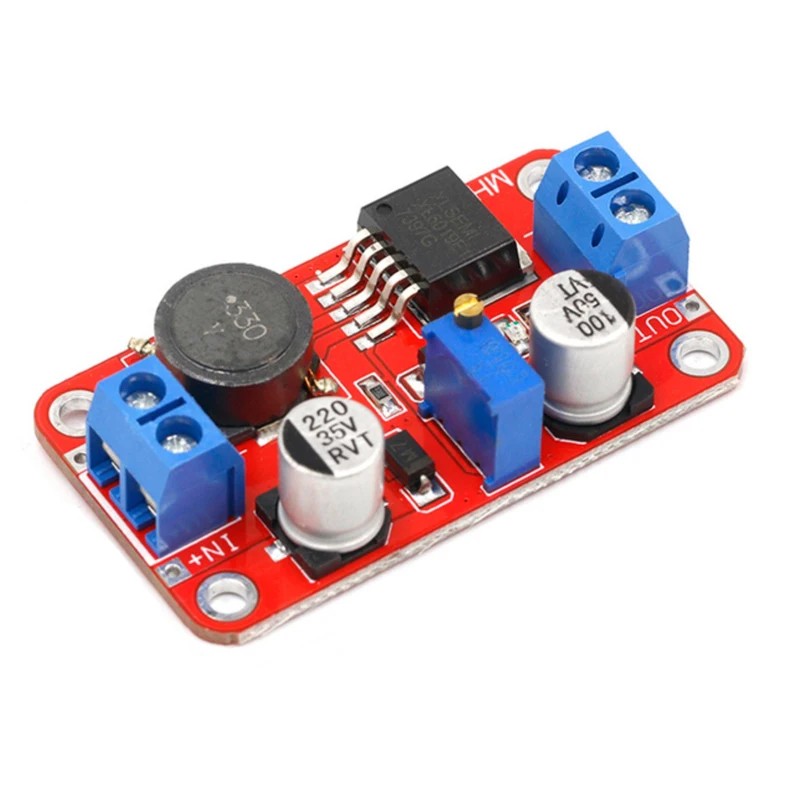

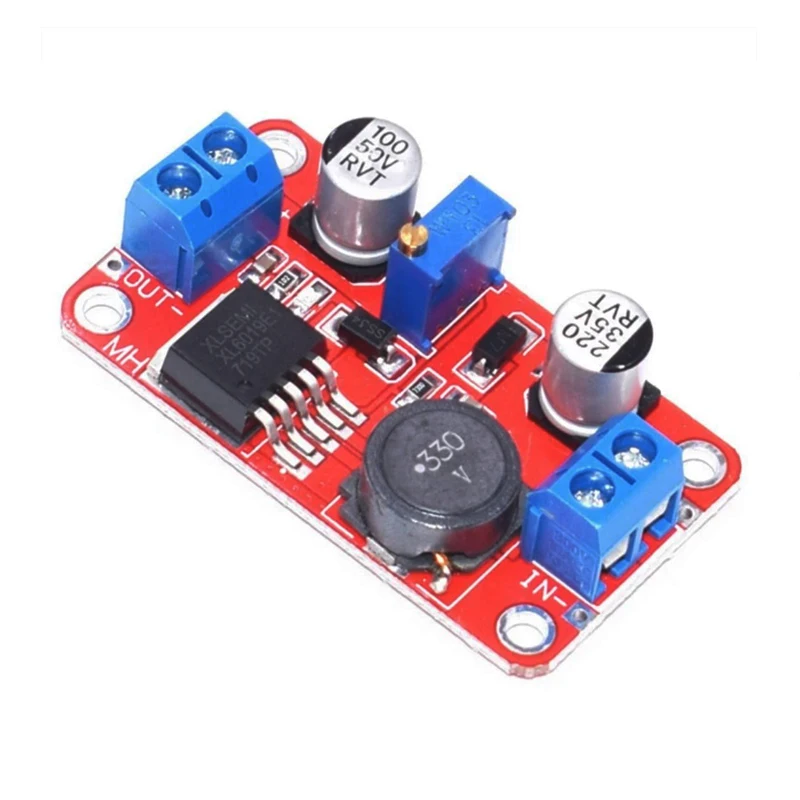

XL6019 DC-DC booster module

Input voltage: 3-40V
Output voltage: 5-45V
Switching frequency: 220KHz
Output ripple: 100mV
Reverse connection protection: input 40V anti-reverse connection protection
Conversion efficiency: up to 94%

1. The conventional BOOST fully integrated constant voltage output scheme is adopted, and the internal MOSFET is integrated, with few peripheral devices and low system cost;

2. Wide voltage range input, input voltage up to 35V;

3. The output voltage can be adjusted to support 40V;

4. Built-in over-temperature protection, over-current protection, a complete set of reliability protection circuit, high reliability;

5. The system conversion efficiency can be more than 90%, which is convenient for thermal design;

6. TO263-5L standard package, suitable for boost applications within 30W.

7. Connect the power supply (3-35V), the power indicator is on, and the module works normally.

8. Adjust the blue potentiometer knob (generally turn counterclockwise to increase the voltage and clockwise to decrease the voltage) and use a multimeter to monitor the output voltage until the voltage is required.

9. It is recommended to use the current within 2. when working for a long time, and add heat sink (output above 10W); Since it is a boost module, please keep the voltage difference of 1.5V small to ensure the output stability.

10. The vehicle-mounted stabilized power supply can adjust the potentiometer only by connecting the input end of the module to the power supply, and the output voltage can be adjusted at 5V-30V. It is very simple and convenient to power your mobile phone, MP3, MP4, PSP charging and other devices.

11. Power supply for electronic equipment. When the equipment needs 5V-35V power supply and the corresponding voltage power supply is in hand, this module can easily adjust the voltage to the required voltage to solve the problem.

12. The working voltage test of the system can use this module to debug the working voltage range of various voltage test systems, which is very easy and convenient.
