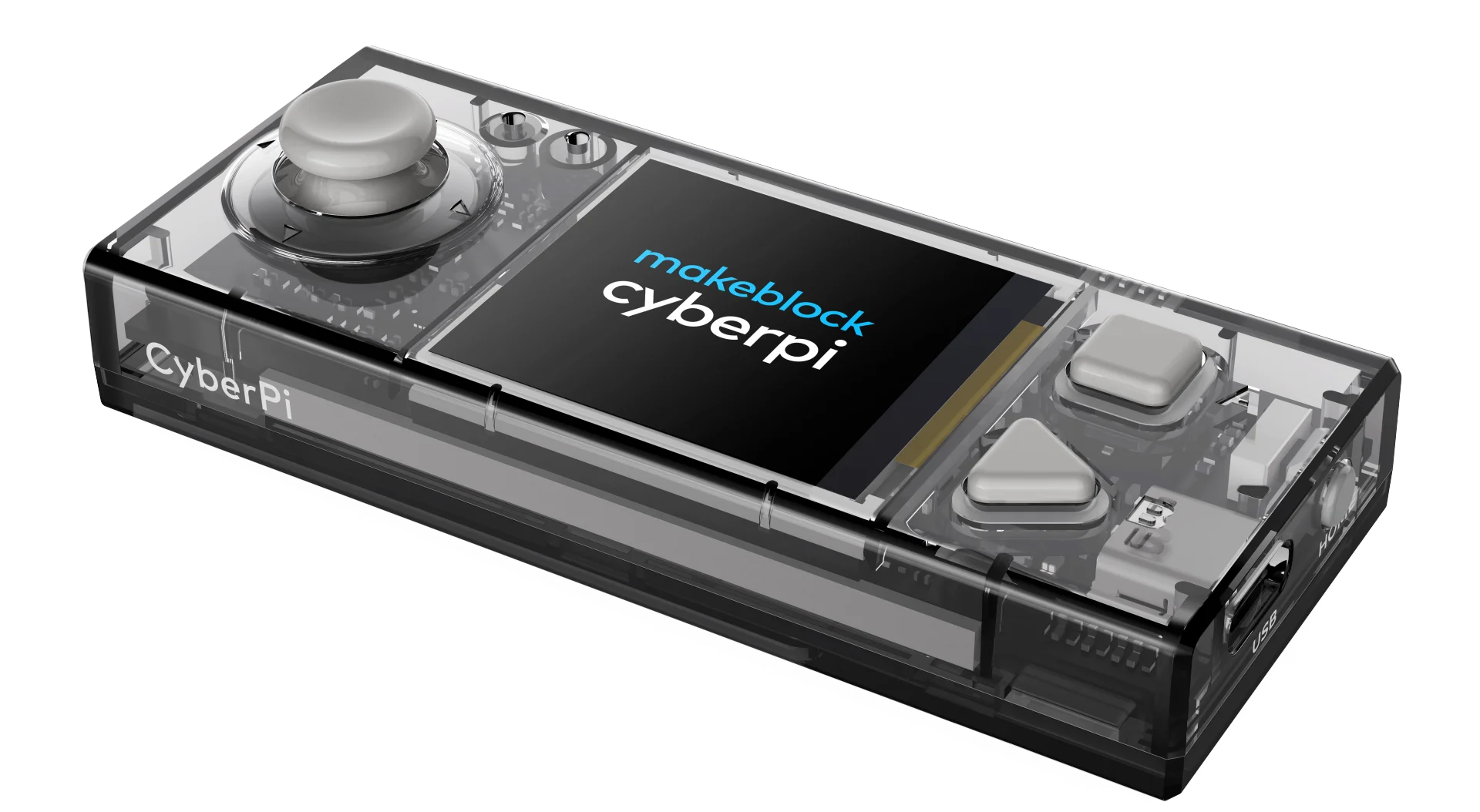

Makeblock CyberPi Go Kit

Makeblock CyberPi Go Kit  is a new-generation networkable microcomputer designed for AI programming education. With the compact structure and powerful functions, it is a great choice for science popularization teaching of AI and advanced learning of programming.

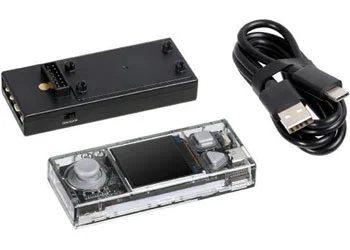

Makeblock CyberPi Go Kit

Key Features:

• Coding: An integrated solution for teaching with both hardware and software in multiple coding languages
• Powerful: CyberPi can be used to teach a variety of subjects including AI, Data Science, Networks and IoT
• Flexible: CyberPi together with the Pocket Shield is compatible with mBuild models and a lot of 3rd party electronic components
• 1.44” full-colour display brings data science into classrooms and makes learning outcomes visible
• Onboard microphone and speaker enable basic natural language processing
• Built-in Wi-Fi module facilitates IoT- based and LAN-based innovations and applications that are closely related to daily life
• Create motion-controlled games to fuel creativity and fun in the classroom
• Teach and learn Python, which is a leap toward AI age
• Python made easier for almost any learners and creators
• Greater expansion capabilities make creation unlimited

Tech Specs:

• High-performance dual-core CPU
• Built-in WiFi module
• Full colour LCD display
• 5-way joystick x1 ; Home button x1 ; Buttons x2
• High-precision 3-axis motion sensor, light sensor, microphone, buttons, speaker, 5 RGB LED strip, and 5-way joystick
• Programming: Block-based coding, & Python
• Operating system: 1. independently-developed CyberOS¼›2. Open-source technologies
• USB-C port (power and data)

CyberPi

Specifications

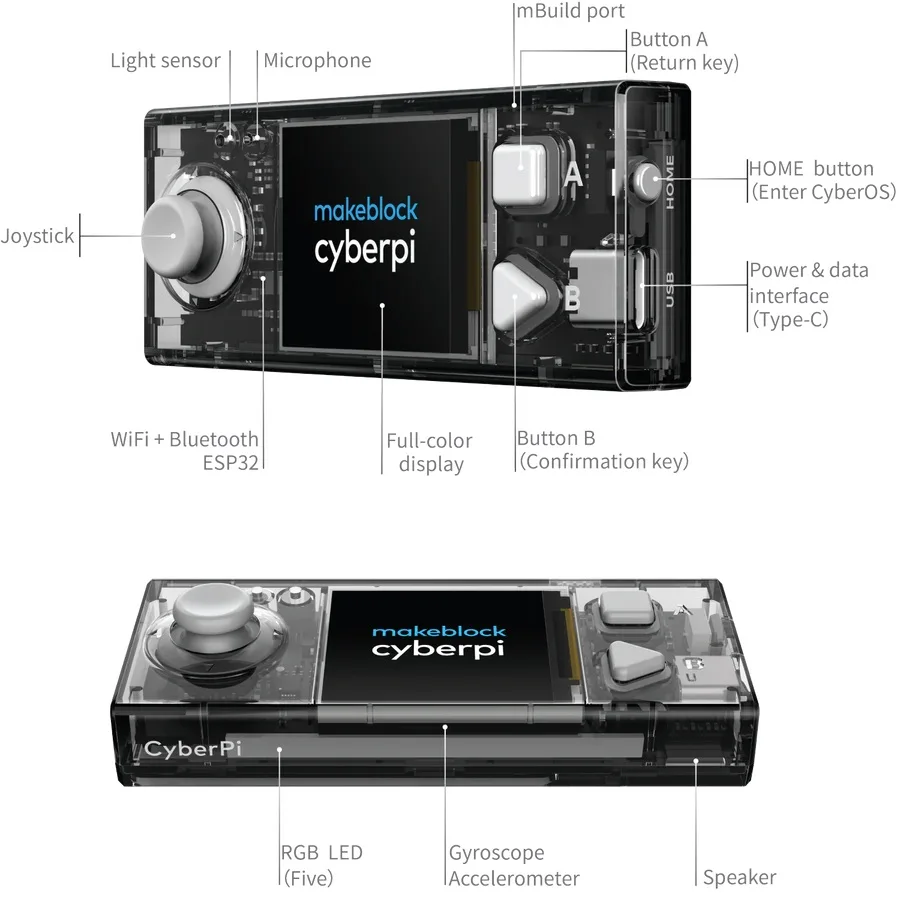

Features

● Full-color display, providing user-friendly UIs for human-machine interaction
● CyberOS system, allowing you to execute the predefined programs, set the system language, and update the system through the onboard joystick and buttons
● One Micro USB port(Type-C) for connecting to PCs for power supply and communication
● One electronic module port for connecting electronic modules
● One extension board port for connecting to extension boards
● Multiple onboard sensors, such as light sensor and gyroscope, which provides multiple types of data output
● Five LEDs, allowing you to present abundant light effects
● Onboard Bluetooth and Wi-Fi module, enabling wireless communication
● Supporting mBlock 5 programming, which is intended for users of all ages, including those without any programming experience
● Supporting Python programming, for which the cyberpi library is provided

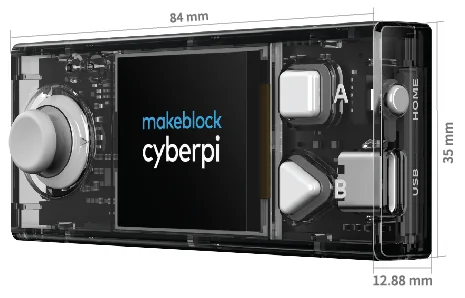

Dimensions

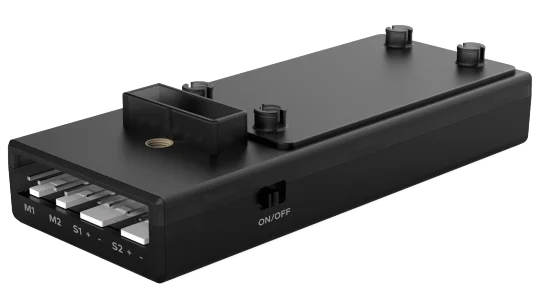

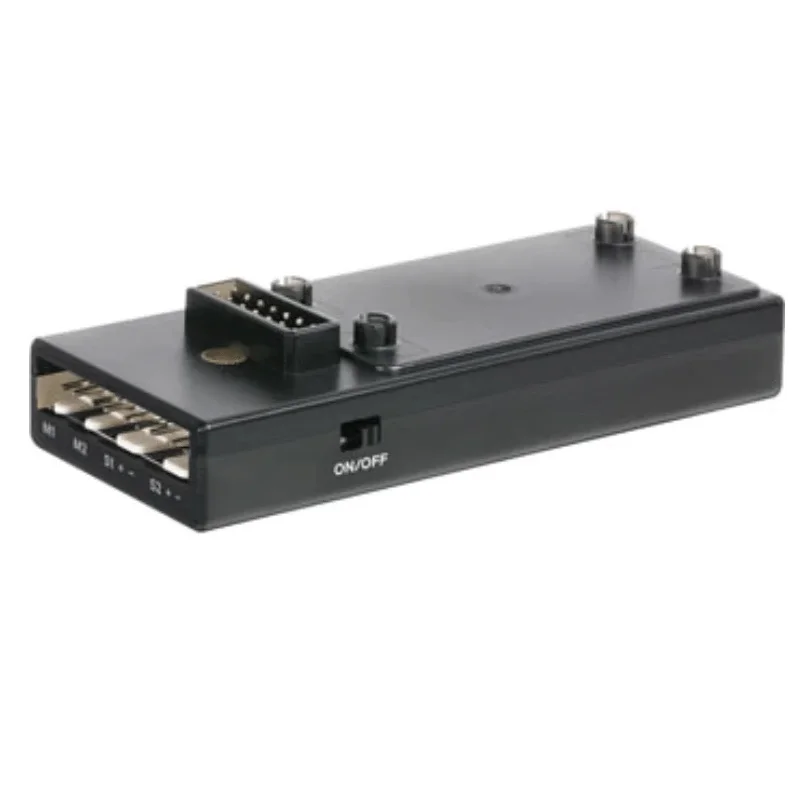

Pockect Shield

Overview

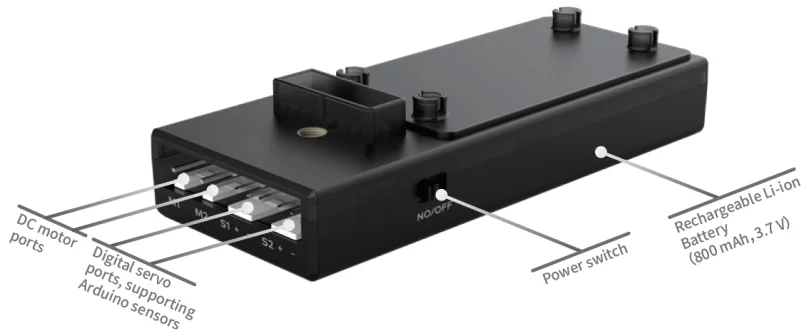

Pocket Shield is equipped with a built-in rechargeable battery that can supply power for CyberPi and provides 2-pin and 3-pin interfaces that can be used to connect servos, LED strips, and motors, which significantly improves the extensibility of CyberPi.

Features

● Built-in rechargeable Li-ion battery, used to supply power for CyberPi
● Two DC motor ports, used to connect and drive DC motors
● Two digital servo ports, used to connect and drive servos or LED strips
● One main control board port, allowing you to easily connect Pocket Shield to CyberPi
● Supporting mBlock 5 programming, which is intended for users of all ages, including those without any programming experience
● Supporting Python programming, for which the cyberpi library is provided

Specifications

Note:
● Self-discharge occurs in the lithium-ion battery. If you store mBot2 Shield with the battery voltage lower than 3.6 V for a long time, the battery will be over-discharged and its internal structure may be damaged, which reduces the endurance of the battery. Therefore, to store mBot2 Shield for a long time while keeping the battery intact, you need to charge the battery once every three to six months to 3.8–3.9 V (the best voltage for storage is 3.85 V), which allows the discharge depth of 40% to 60%.
● Store mBot2 Shield at 4℃ to 35℃ in a dry place or keep it away from moisture through packaging.
● Keep it away from heat or direct sunlight.
